Node Native SPI Addon

A high-performance Node.js native addon for SPI communication on Linux, leveraging direct spidev.h APIs. Features

• Async/await friendly Promise-based transfers with configurable per-transfer settings.

• Batched transfers: Submit multiple SPI transactions in one call for maximum performance.

• Zero abstraction: Direct mapping to the Linux SPI interface (spi_ioc_transfer).

• Full support for Linux SPI parameters (e.g., delay_usecs, cs_change).

• Dynamic reconfiguration of mode, speed_hz, and bits_per_word.

• Getters for current device settings.

• Built-in TypeScript type declarations.

Concurrency & Multiple Chip Select (CS)

Non-Blocking API

All transfers are asynchronous by design:

import SPIDevice from '@eeemarv/io-spi';
spi = new SPIDevice('/dev/spidev0.0');

// Fire-and-forget transfer
spi.transfer([txBuffer])
   .then([rxBuffer] => console.log('Done!'))
   .catch(err => console.error('Error:', err));

Key notes

• Transfers are queued at the OS level but don't block Node.js's event loop.
• Each transfer() call returns a native Promise (no manual threading required).

Multiple Chip Select (CS) Pins

To control multiple SPI slaves, create separate instances per CS

// Each CS line gets its own instance
// each instance contains its own configuration:
// mode, max_speed_hz and bits_per_word

const spiCS0 = new SPIDevice('/dev/spidev0.0');  // Uses CS0
const spiCS1 = new SPIDevice('/dev/spidev0.1',{
  max_speed_hz: 500_000
});  // Uses CS1

const txBufferForDevice0 = Buffer.from([0x55, 0xAA]);
const txBufferForDevice1 = Buffer.from([0x66, 0xBB]);

// Concurrent operations
Promise.all([
  spiCS0.transfer([txBufferForDevice0]),
  spiCS1.transfer([txBufferForDevice1])
]).then(([[rxBufferfromDevice0], [rxBufferFromDevice1]]) => {
  console.log(rxBufferfromDevice0);
  console.log(rxBufferfromDevice1);
}).catch((error) => {
  console.error(error);
});

Hardware Setup

• Ensure each slave has a dedicated CS line (e.g., CS0, CS1).
• Kernel must expose multiple /dev/spidevX.Y devices (check ls /dev/spidev* -l).

Example Wiring (Raspberry Pi):

Installation

npm install @eeemarv/io-spi

# OR

yarn add @eeemarv/io-spi

Prerequisites

• Linux (e.g., Raspberry Pi, Orange Pi) with SPI kernel support.

• Node.js v20+

• Build tools:

sudo apt-get install build-essential python3

Usage

Import

const SPIDevice = require('@eeemarv/io-spi');

// OR

import SPIDevice from '@eeemarv/io-spi';

Initialize

const spi = new SPIDevice('/dev/spidev0.0', {
  mode: 3,          // SPI mode (default 0)
  max_speed_hz: 500_000,  // Clock speed (default 1_000_000 or 1MHz)
  bits_per_word: 16    // Bits per word (default 8)
});

Or configure dynamically:

spi.setMode(2);           // Switch to mode 2
spi.setMaxSpeedHz(250_000); // Reduce speed to 250kHz
spi.setBitsPerWord(8);

console.log(spi.getMode()); // e.g., 2

Transfer Data

Simple Transfer (Uses Device Defaults)

spi.transfer([
  Buffer.from([0x01, 0x02])
]).then(([result]) => {
  console.log(result); // Buffer with received data
}).catch((error) => {
  console.log(error);
});

Advanced Transfer (Per-Transfer Settings)

spi.transfer([
  Buffer.from([0x01, 0x02]), // Uses device defaults
  {                           // Overrides settings for this transfer
    tx_buf: Buffer.from([0x03, 0x04]), // required
    speed_hz: 500000,         // Temporary speed change
    delay_usecs: 100,            // Delay after transfer (microseconds)
    cs_change: 1           // Toggle CS after this transfer
  },
  Buffer.from([0x05, 0x06])  // Reverts to device defaults
]).then((results) => {
    console.log(results); // `results` is an array of Buffers (one per transfer)
}).catch((error) => {
    console.log(error);
});

API Reference

new SPIDevice(path[, options])

• path (string): SPI device path (e.g., /dev/spidev0.0).

• options (object):

  • mode: SPI mode 0-3 (CPOL/CPHA), more rare modes are also supported. Defaults to 0.
  • max_speed_hz (number): Clock speed in Hz. Defaults to 1_000_000 (1Mhz)
  • bits_per_word (number): Bits per word. Defaults to 8

Methods

Transfer Object Parameters

Each transfer can specify:

See Linux spidev.h for full documentation of all parameters. Parameters tx_nbits, rx_nbits and word_delay_usecs can also be used, but these are not widely implemented.

TypeScript Support

This package includes built-in TypeScript type declarations via index.d.ts.

If you're using TypeScript, you'll get autocompletion and type checking automatically:

import SPIDevice from '@eeemarv/io-spi';

const spi = new SPIDevice('/dev/spidev0.0', {
  max_speed_hz: 1_000_000,
  mode: 0
});

Type definitions include

• Constructor options
• transfer() method with buffer/object overloads
• Getter/setter methods for mode, speed, and bits-per-word

No need to install @types/... — types are bundled with the package.

Examples

The loopback test is the only example included in the npm package. More examples can be found in a separate repository on Github.

Loopback Test

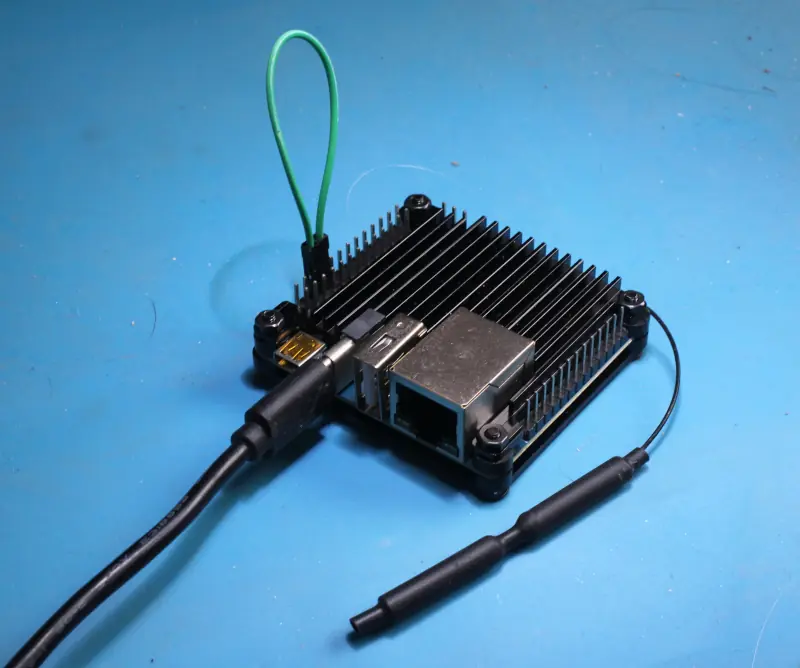

With this test you can see if the SPI device works without the involvement of a slave device. Connect the MOSI pin directly to the MISO pin, run the test and see if the data matches.

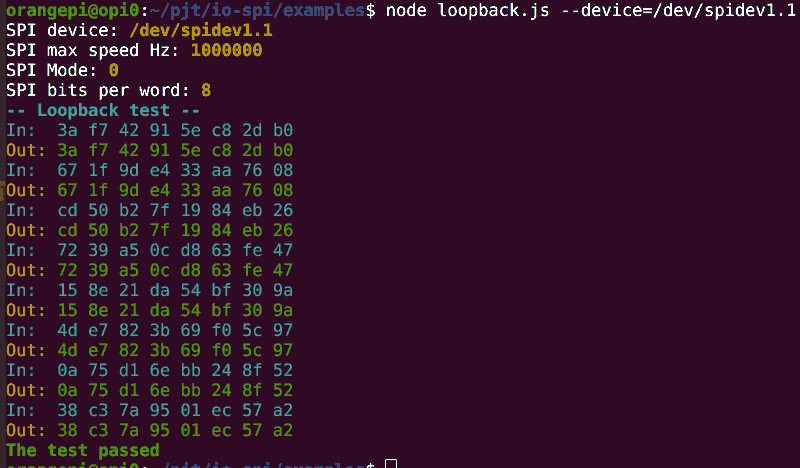

node loopback.js
# Use the `--help` flag to see all possible configurations.

The default device is /dev/spidev0.0 but can be changed with the --device flag.

Troubleshooting

Enable SPI

Check out if SPI is enabled. To list all available SPI devices:

ls -l /dev/spi*

Check out the manual of your SBC on how to enable the SPI devices.

If you have raspi-config (common on the Raspberry Pi), run

sudo raspi-config

Navigate to Interface options > Enable SPI.

On the Orange Pi, run orangepi-config

sudo orangepi-config

Navigate to System > Hardware > Toggle hardware configuration.

Permission Denied

To allow non-root users to access the SPI device (e.g. /dev/spidev0.0, /dev/spidev1.1) without sudo, you need to modify the device permissions and group ownership permanently.

1. Create a Dedicated Group for SPI Access

sudo groupadd spi

2. Set a udev Rule to Change SPI Device Permissions

Ubuntu, Debian and Raspbian use udev to manage device permissions. Create a new rule:

sudo nano /etc/udev/rules.d/90-spi.rules

Add this line to grant read/write access to the spi group:

SUBSYSTEM=="spidev", GROUP="spi", MODE="0660"

3. Reload udev Rules & Trigger Changes

sudo udevadm control --reload-rules
sudo udevadm trigger

4. Verify the Changes

Check the SPI device permissions:

ls -l /dev/spidev*

Expected output:

crw-rw---- 1 root spi 153, 0 Jun 17 10:14 /dev/spidev1.1

Now, users in the spi group can access it without sudo.

5. Add Your User to the Group

sudo usermod -aG spi $(whoami)  # Replace $(whoami) with the target username

(Log out and back in for the group change to take effect.)

Invalid Arguments

Verify parameters match spidev.h constraints (e.g., valid mode).

Build Issues

Rebuild with node-gyp rebuild --verbose

Hardware connection problems

For good connection, especially at speeds above 1Mhz, be sure

• to keep wires or paths short
• to keep wires or paths bundled together
• to take ground (and power) from pins the closed to the MISO, MOSI, CS and CLCK pins in order to provide a ground return path
• to thoroughly clean up flux after soldering
• that you are invoking the right spi device. E.g. on the Orange Pi Zero 3 only /dev/spidev1.1 is available on the pinout.
