FlexLayout
FlexLayout is a layout manager that arranges React components in multiple tabsets, tabs can be resized and moved.
Try it now using CodeSandbox

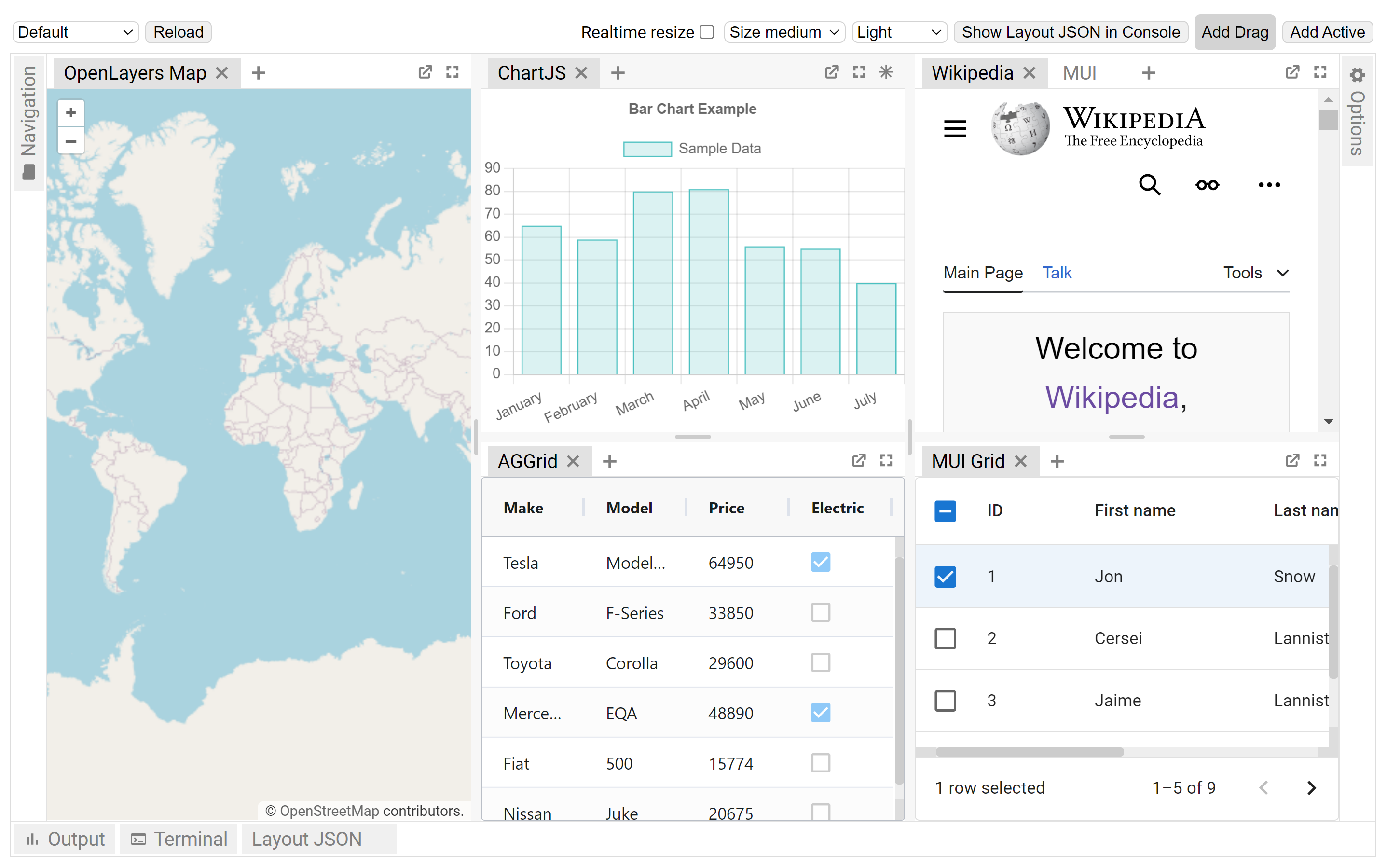

Screenshot of Caplin Liberator Explorer using FlexLayout
FlexLayout's only dependency is React.
Features:
- splitters
- tabs (scrolling or wrapped)
- tab dragging and ordering
- tabset dragging (move all the tabs in a tabset in one operation)
- dock to tabset or edge of frame
- maximize tabset (double click tabset header or use icon)
- tab overflow (show menu when tabs overflow, scroll tabs using mouse wheel)
- border tabsets
- popout tabs into new browser windows
- submodels, allow layouts inside layouts
- tab renaming (double click tab text to rename)
- theming - light, dark, underline, gray, rounded and combined
- works on mobile devices (iPad, Android)
- add tabs using drag, add to active tabset, add to tabset by id
- tab and tabset attributes: enableTabStrip, enableDock, enableDrop...
- customizable tabs and tabset rendering
- component state is preserved when tabs are moved
- Playwright tests
- typescript type declarations
Installation
FlexLayout is in the npm repository. install using:
npm install flexlayout-reactImport FlexLayout in your modules:
import {Layout, Model} from 'flexlayout-react';Include the light, dark, underline, gray, rounded or combined theme by either:
Adding an import in your js code:
import 'flexlayout-react/style/light.css'; or by copying the relevant css from the node_modules/flexlayout-react/style directory to your public assets folder (e.g. public/style) and linking the css in your html:
<link rel="stylesheet" href="/style/light.css" />How to change the theme dynamically in code
Usage
The <Layout> component renders the tabsets and splitters, it takes the following props:
Required props:
| Prop | Description |
|---|---|
| model | the layout model |
| factory | a factory function for creating React components |
Additional optional props
The model is tree of Node objects that define the structure of the layout.
The factory is a function that takes a Node object and returns a React component that should be hosted by a tab in the layout.
The model can be created using the Model.fromJson(jsonObject) static method, and can be saved using the model.toJson() method.
Example Configuration:
const json = {
global: {},
borders: [],
layout: {
type: "row",
weight: 100,
children: [
{
type: "tabset",
weight: 50,
children: [
{
type: "tab",
name: "One",
component: "placeholder",
}
]
},
{
type: "tabset",
weight: 50,
children: [
{
type: "tab",
name: "Two",
component: "placeholder",
}
]
}
]
}
};Example Code
const model = Model.fromJson(json);
function App() {
const factory = (node) => {
const component = node.getComponent();
if (component === "placeholder") {
return <div>{node.getName()}</div>;
}
}
return (
<Layout
model={model}
factory={factory} />
);

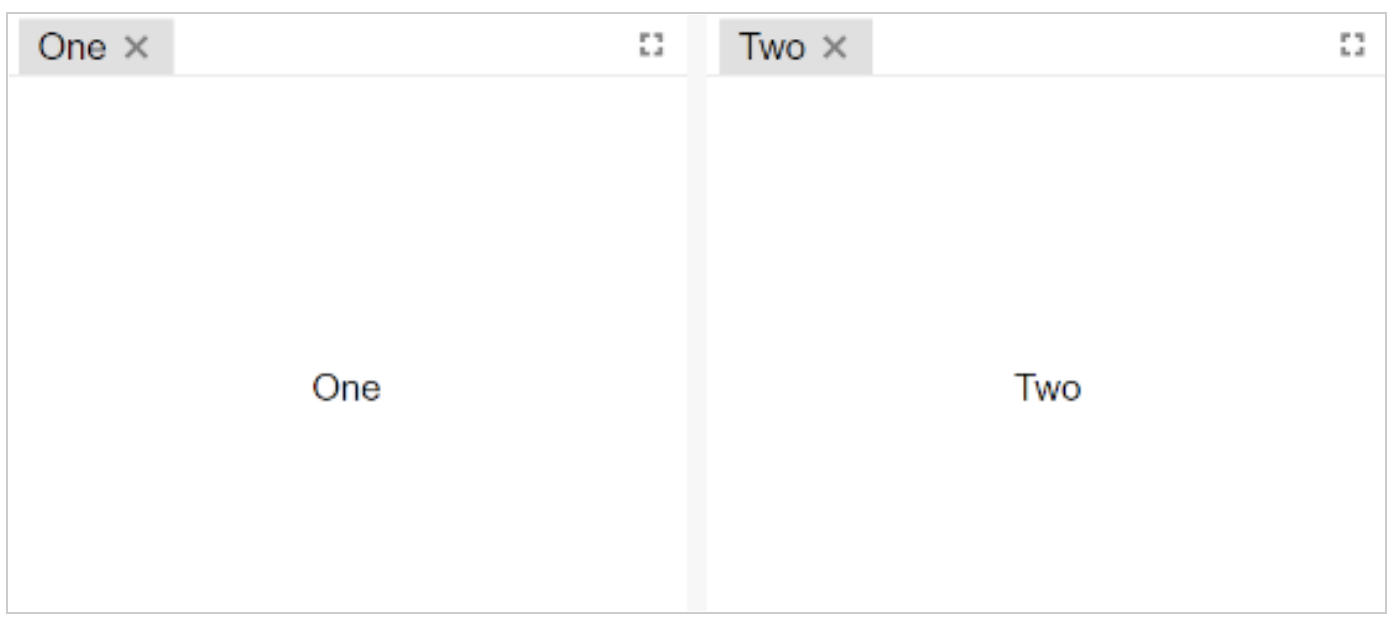

}The above code would render two tabsets horizontally each containing a single tab that hosts a div component (returned from the factory). The tabs could be moved and resized by dragging and dropping. Additional tabs could be added to the layout by sending actions to the model.
Try it now using CodeSandbox
A simple Typescript example can be found here:
https://github.com/nealus/flexlayout-vite-example
The model json contains 4 top level elements:
- global - (optional) where global options are defined
- layout - where the main row/tabset/tabs layout hierarchy is defined
- borders - (optional) where up to 4 borders are defined ("top", "bottom", "left", "right").
- popouts - (optional) where the popout windows are defined
The layout element is built up using 3 types of 'node':
row - rows contains a list of tabsets and child rows, the top level 'row' will render horizontally (unless the global attribute rootOrientationVertical is set) , child 'rows' will render in the opposite orientation to their parent row.
tabset - tabsets contain a list of tabs and the index of the selected tab
tab - tabs specify the name of the component that they should host (that will be loaded via the factory) and the text of the actual tab.
The layout structure is defined with rows within rows that contain tabsets that themselves contain tabs.

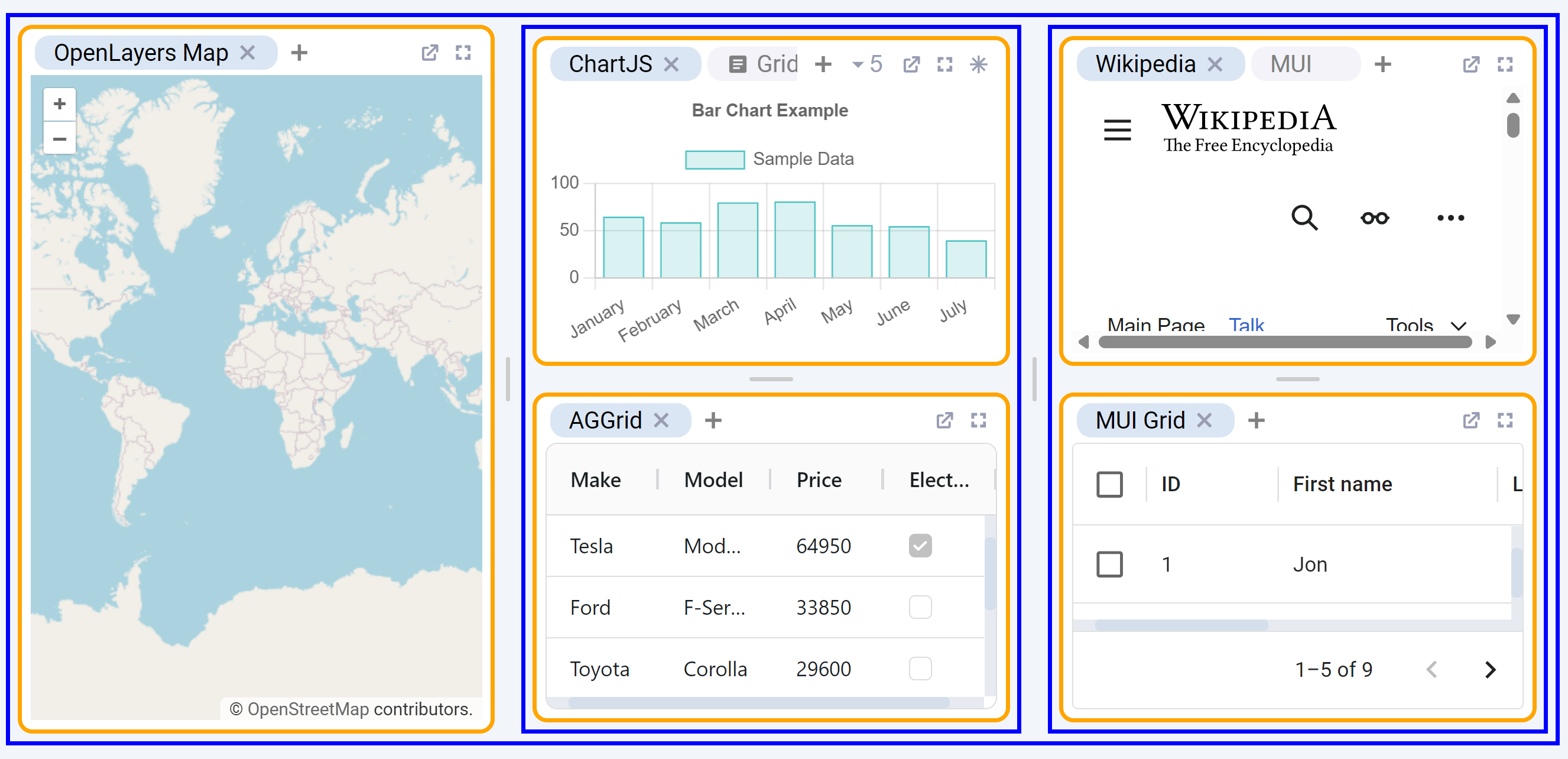

Within the demo app you can show the layout structure by ticking the 'Show layout' checkbox, rows are shown in blue, tabsets in orange.
The optional borders element is made up of border nodes
- border - borders contain a list of tabs and the index of the selected tab, they can only be used in the borders top level element.
The tree structure for the JSON model is well defined as Typescript interfaces, see JSON Model
Each type of node has a defined set of requires/optional attributes.
Weights on rows and tabsets specify the relative weight of these nodes within the parent row, the actual values do not matter just their relative values (ie two tabsets of weights 30,70 would render the same if they had weights of 3,7).
NOTE: the easiest way to create your initial layout JSON is to use the demo app, modify one of the existing layouts by dragging/dropping and adding nodes then press the 'Show Layout JSON in console' button to print the JSON to the browser developer console.
By changing global or node attributes you can change the layout appearance and functionality, for example:
Setting tabSetEnableTabStrip:false in the global options would change the layout into a multi-splitter (without tabs or drag and drop).
global: {tabSetEnableTabStrip:false},Dynamically Changing the Theme
The 'combined.css' theme contains all the other themes and can be used for theme switching.
When using combined.css, add a className (of the form "flexlayout__theme_[theme name]") to the div containing the <Layout> to select the applied theme.
For example:
<div ref={containerRef} className="flexlayout__theme_light">
<Layout model={model} factory={factory} />
</div>Change the theme in code by changing the className on the containing div.
For example:
containerRef.current!.className = "flexlayout__theme_dark"Customizing Tabs
You can use the <Layout> prop onRenderTab to customize the tab rendering:
Update the renderValues parameter as needed:
renderValues.leading : the red block
renderValues.content : the green block
renderValues.buttons : the yellow block
For example:
onRenderTab = (node: TabNode, renderValues: ITabRenderValues) => {
// renderValues.leading = <img style={{width:"1em", height:"1em"}}src="images/folder.svg"/>;
// renderValues.content += " *";
renderValues.buttons.push(<img key="menu" style={{width:"1em", height:"1em"}} src="images/menu.svg"/>);
}Customizing Tabsets
You can use the <Layout> prop onRenderTabSet to customize the tabset rendering:
Update the renderValues parameter as needed:
renderValues.leading : the blue block
renderValues.stickyButtons : the red block
renderValues.buttons : the green block
For example:
onRenderTabSet = (node: (TabSetNode | BorderNode), renderValues: ITabSetRenderValues) => {
renderValues.stickyButtons.push(
<button
key="Add"
title="Add"
className="flexlayout__tab_toolbar_button"
onClick={() => {
model.doAction(Actions.addNode({
component: "placeholder",
name: "Added " + nextAddIndex.current++
}, node.getId(), DockLocation.CENTER, -1, true));
}}
><AddIcon/></button>);
renderValues.buttons.push(<img key="menu" style={{width:"1em", height:"1em"}} src="images/menu.svg"/>);
}Model Actions
Once the model json has been loaded all changes to the model are applied through actions.
You apply actions using the Model.doAction() method.
This method takes a single argument, created by one of the action
generators (accessed as FlexLayout.Actions.<actionName>):
Examples
model.doAction(FlexLayout.Actions.addNode(
{type:"tab", component:"grid", name:"a grid", id:"5"},
"1", FlexLayout.DockLocation.CENTER, 0));This example adds a new grid component to the center of tabset with id "1" and at the 0'th tab position (use value -1 to add to the end of the tabs).
model.doAction(FlexLayout.Actions.updateModelAttributes({
splitterSize:40
}));The above example would increase the size of the splitters, this could be used to make adjusting the layout easier on a small device.
Note: you can get the id of a node (e.g., the node returned by the addNode
action) using the method node.getId().
If an id wasn't assigned when the node was created, then one will be created for you of the form #<uuid> (e.g. #0c459064-8dee-444e-8636-eb9ab910fb27).
Note: You can intercept actions resulting from GUI changes before they are applied by
implementing the onAction callback property of the Layout.
Optional Layout Props
There are many optional properties that can be applied to the layout:
JSON Model Definition
The JSON model is well defined as a set of TypeScript interfaces, see the doc for details of all the attributes allowed:
Model Config Attributes
Global Config Attributes
Row Config Attributes
TabSet Config Attributes
Note: tabsets will be dynamically created as tabs are moved, and deleted when all their tabs are removed (unless enableDeleteWhenEmpty is false).
Tab Config attributes
Border Config attributes
Layout Component Methods to Create New Tabs
There are methods on the Layout Component for adding tabs:
Example:
layoutRef.current.addTabToTabSet("NAVIGATION", {type:"tab", component:"grid", name:"a grid"});This would add a new grid component to the tabset with id "NAVIGATION" (where layoutRef is a ref to the Layout element, see https://reactjs.org/docs/refs-and-the-dom.html ).
Tab Node Events
You can handle events on nodes by adding a listener, this would typically be done when the component is mounted in a useEffect method:
Example:
function MyComponent({node}) {
useEffect(() => {
// save subject in flexlayout node tree
node.setEventListener("save", () => {
node.getConfig().subject = subject;
};
}, []);
}
| Event | parameters | Description |
|---|---|---|
| resize | {rect} | called when tab is resized during layout, called before it is rendered with the new size |
| close | none | called when a tab is closed |
| visibility | {visible} | called when the visibility of a tab changes |
| save | none | called before a tabnode is serialized to json, use to save node config by adding data to the object returned by node.getConfig() |
Popout Windows
Tabs can be rendered into external browser windows (for use in multi-monitor setups) by configuring them with the enablePopout attribute. When this attribute is present an additional icon is shown in the tab header bar allowing the tab to be popped out into an external window.
For popouts to work there needs to be an additional html page 'popout.html' hosted at the same location as the main page (copy the one from the demo app). The popout.html is the host page for the popped out tab, the styles from the main page will be copied into it at runtime.
Because popouts are rendering into a different document to the main layout any code in the popped out tab that uses the global document or window objects for event listeners will not work correctly (for example custom popup menus where the code uses document.addEventListener(...)), they need to instead use the document/window of the popout. To get the document/window of the popout use the following method on one of the elements rendered in the popout (for example a ref or target in an event handler):
const currentDocument = selfRef.current.ownerDocument;
const currentWindow = currentDocument.defaultView!;In the above code selfRef is a React ref to the toplevel element in the tab being rendered.
Note: libraries may support popout windows by allowing you to specify the document to use, for example see the getDocument() callback in agGrid at https://www.ag-grid.com/javascript-grid-callbacks/
Limitations of Popouts
FlexLayout uses React Portals to draw the popout window content, this means all the code runs in the main Window's JS context, so effectively the popout windows are just extensions of the area on which the main window can render panels.
Your code must use the popout window/document in popout windows when adding event listeners (e.g popoutDocument.addEventListener(...)).
Timers throttle when main window is in the background you could implement a webworker timer replacement if needed (which will not throttle)
- Many third party controls will use the global document for some event listeners, these will not work correctly without modification
- Some third party controls will suspend when the global document is hidden you can use the tab overlay attribute to 'gray out' these tabs when the main window is hidden
- Resize observers may be throttled (or stay attached to the main window), so you may need to use some other way to resize the component when in a popout.
- Popouts will not size and position correctly when the browser is zoomed (ie set to 50% zoom)
- Popouts cannot reload in maximized or minimized states
- by default flexlayout will maintain react state when moving tabs between windows, but you can use the enableWindowReMount tab attribute to force the component to re-mount.
See this article about using React portals in this way: https://dev.to/noriste/the-challenges-of-rendering-an-openlayers-map-in-a-popup-through-react-2elh
Running the Demo and Building the Project
First install dependencies:
pnpm installRun the Demo app:
pnpm devThe 'pnpm dev' command will watch for changes to FlexLayout and the Demo, so you can make changes to the FlexLayout code and see the changes in your browser.

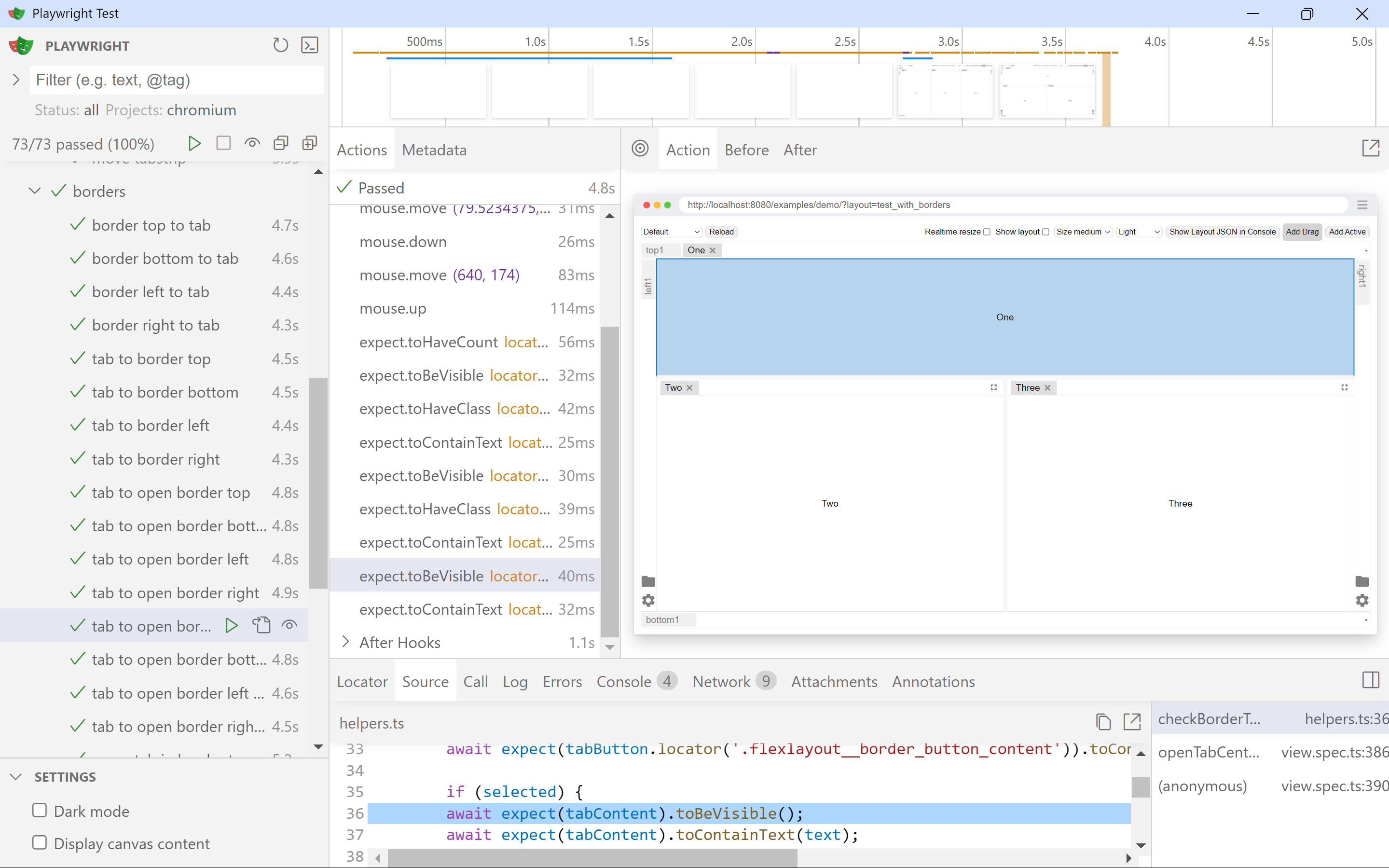

Once the demo is running you can run the Playwright tests by running (in another terminal window)
pnpm playwright
To build the npm distribution run 'pnpm build'.
Alternative Layout Managers
| Name | Repository |
|---|---|
| rc-dock | https://github.com/ticlo/rc-dock |
| Dockview | https://dockview.dev/ |
| lumino | https://github.com/jupyterlab/lumino |
| golden-layout | https://github.com/golden-layout/golden-layout |
| react-mosaic | https://github.com/nomcopter/react-mosaic |
