homebridge-freeathome-local
Homebridge platform plugin for free@home SmartHome devices.
IMPORTANT: From v3.0.6 the Cloud API will not be supportet anymore! The cloud based code will be removed in a future release.
IMPORTANT: If you upgrade from < 2.0.0 please read the Upgrade Notes carefully before installing this plugin.
Features
- Running on a local REST API

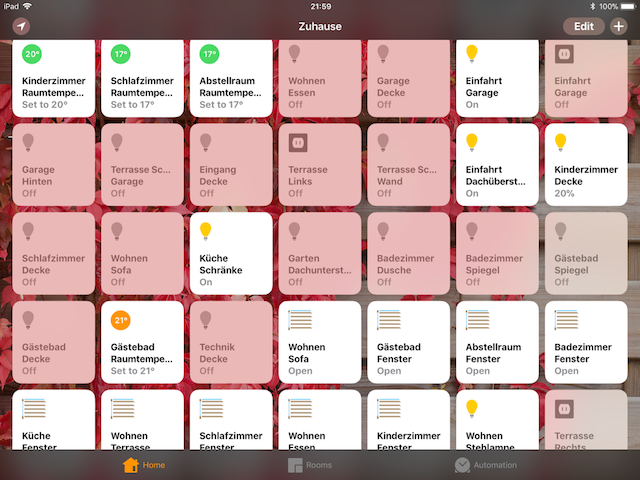

- Control your Busch-Jäger Lights, Outlets, Blinds and more with Apple devices with Homekit
- Setup automations with the HomeKit UI
- Ask Siri to control your devices
- Automatic reconnect to the SysAP
Supported accessories
- Binary Sensors
- Outlets
- Lights
- Dimmable Lights
- Thermostats
- Door Locks
- Media Players (Sonos)
- Smoke Sensors
- Blinds / Shutters
- Window Contact Sensors
- Motion Sensors
Custom Actuators
- A switch actuator can be exposed as a (video) DoorBell.
- A switch actuator can be exposed as a Garage Door.
Requirements
- free@home Access Point
- A linux-based server on your home network that runs 24/7 like a Raspberry Pi.
Setup / Installation
- Install Homebridge
npm install homebridge-freeathome- Edit
config.jsonand configure platform. See Configuration section. - Start Homebridge
- Star the repository ;)
Configuration
You can configure the plugin in Homebridge Config UI X now:
Caveats: the mapping for blacklisted actuators doesn't work yet, since Homebridge Config UI X demands a different json structure.
Of course you can configure the Plugin still raw in the config.json:
{
"platform": "free@home",
"sysIP": "<IP>",
"username": "<USERNAME>",
"password": "<PASSWORD>",
"isLocalAPI": <true|false>,
"dimmActorMinValue": <0|100>,
"mappings": {}
}Replace <IP> with the IP of your System Access Point.
You can configure the mappings if you want to ignore an actuator or channel if they are not connected/unused to hide them from the HomeKit UI. However this is only needed in rare cases. Usually you can leave this blank.
{
"platform": "free@home",
"sysIP": "<IP>",
"username": "<USERNAME>",
"password": "<PASSWORD>",
"isLocalAPI": <true|false>,
"dimmActorMinValue": <0|100>,
"mappings": {
"<ACTUATOR-SERIAL>": {
"blacklist": ["ch0000", "ch0001"],
},
"<ACTUATOR-SERIAL>": {
"blacklist": ["*"],
}
}
}You can find the actuator serial in the web interface of the free@home SysAp Interface.
Local REST API
You need to activate local API settings in the SysAP settings of the free@home next App: https://developer.eu.mybuildings.abb.com/fah_local/prerequisites/
This feature is NOT available in the web backend!
User/Password will be the same as for the Cloud API, the user "installer" seems to be the most reliable.
In your config.json you need to set "isLocalAPI": true,
That's it, good luck keeping your data at home!
(Video) DoorBell
See the DoorBell Tutorial on how to setup the free@home DoorBell in HomeKit.
Garage Door
See the GarageDoor Tutorial on how to expose a Switch actuator as a GarageDoor accessory.
Limitations
The door can not be controlled with HomeKit as the bus is not connected to the SysAp.Already implemented via free@HomeTouch 7 Panel- The door camera can not be accessed. You may want to use IP cameras that support the rtsp protocol and use the video door bell.
Notes
- The accessories can only be controlled when you're at home in your local WiFi network. To manage your accessories remotely you need to setup an iPad/Homepod or Apple TV as a Home Hub.
Tips & Tricks
- Do not restart Homebridge if you are either updating the SysAp or an actuator as the accessory may be removed from HomeKit if it is not detected during discovery.
Changelog
The changelog can be viewed here.
Upgrade Notes
Upgrade Notes can be found in the CHANGELOG.
Help
If you have any questions or help please open an issue on the GitHub project page.
Contributing
Pull requests are always welcome. If you have a device that is not supported yet please open an issue or open a pull request with your modifications.
License
The project is subject to the MIT license unless otherwise noted. A copy can be found in the root directory of the project LICENSE.
