oidoid
Proportional and monospaced sans light pixel font family. See the demo or download the fonts as TTFs and sprite sheets. Developed in FontForge and Aseprite.
Install
npm install --save-prefix= mem-fontSee the changelog for release notes.
Files
- *.ttf: TrueType font file. The format is
mem-<variable width>-<width>x<height>where "variable width" ispropfor proportional ormonofor monospaced, and width and height are cell width and height in pixels. Files containing "-aseprite" in their name have their kerning multiplied for correct rendering in Aseprite. - *.json: font metadata (kerning and other metrics for games).
- *-sheet.png: 1x spritesheet (for games)
- *-sheet.json: 1x Aseprite metadata (for games)
- *.sfd: FontForge file (mostly for debugging the TTF).
- *-10x-sheet.png: 10x spritesheet (mostly for demoing in the readme and easier diffing).
- *-10x-sheet.json: Aseprite metadata for the 10x spritesheet.
- *.ttfdump: True Type Font File Dumper dumps for each TTF (for debugging and tracking changes). Files containing "-aseprite" in their name have their kerning multiplied for correct rendering in Aseprite.
See also font metadata and Aseprite metadata sections below.
Fonts
All characters in each font set appear below. Blank cells are missing (undefined) characters. The fonts are ordered from greatest to least line height with tie-breakers going to greatest width then proportional font.

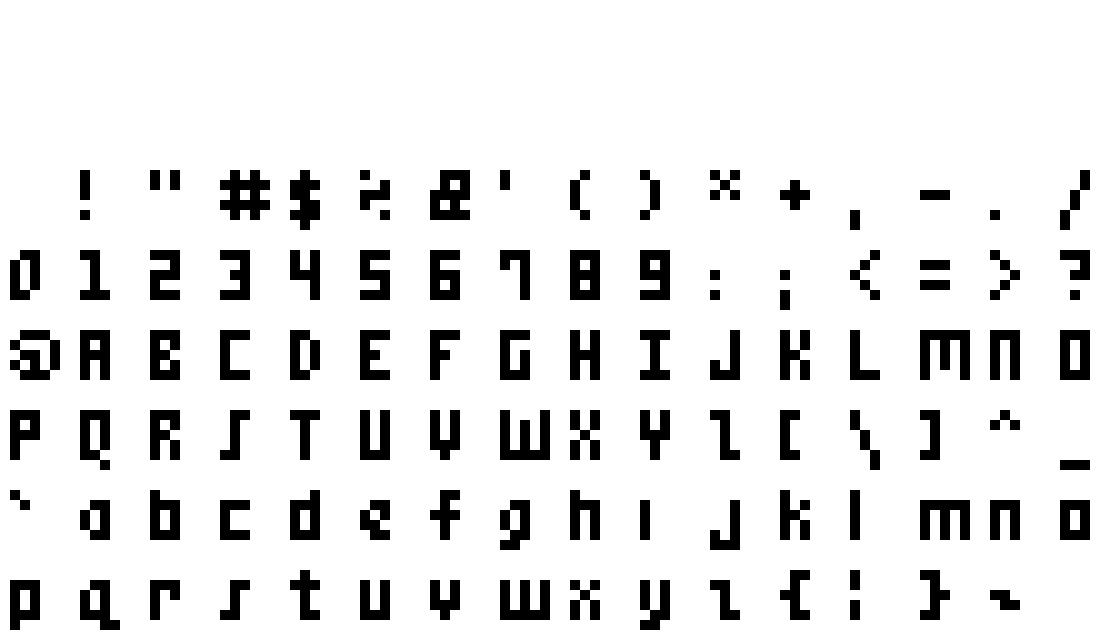

mem 5x6
mem 5x5

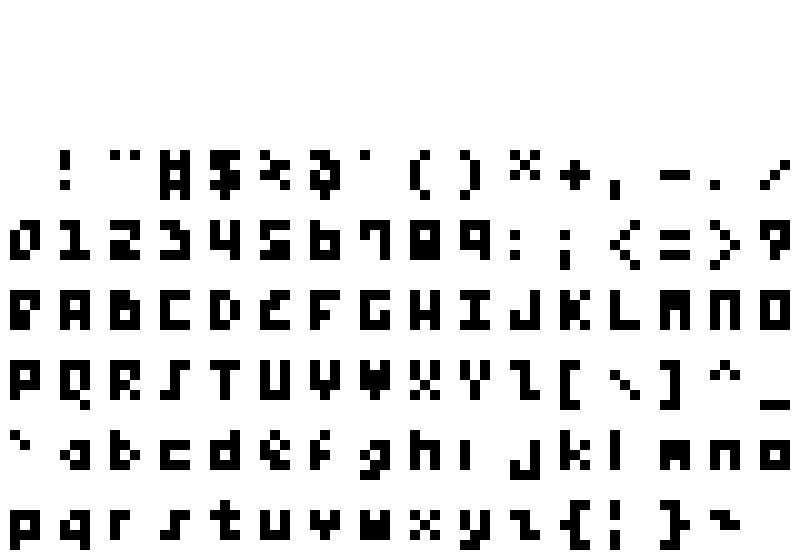

mem 3x5

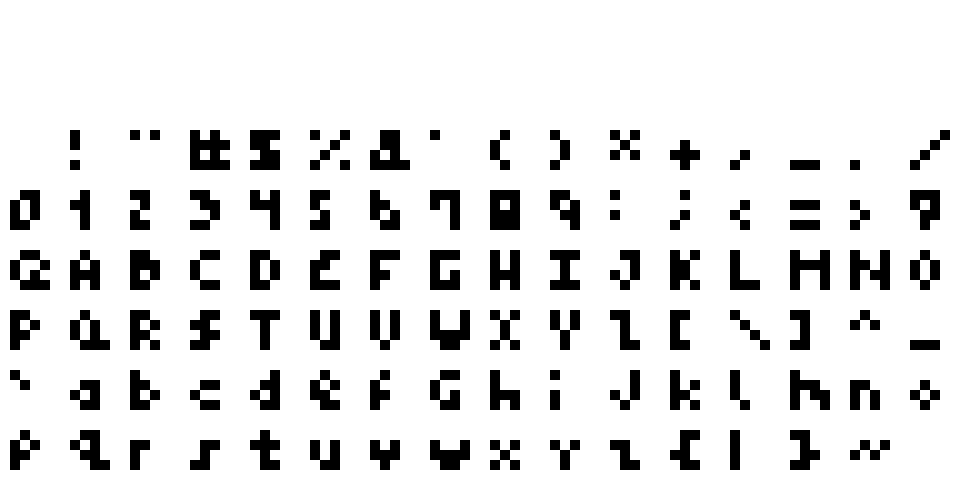

mem 4x4
mem mono 4x4

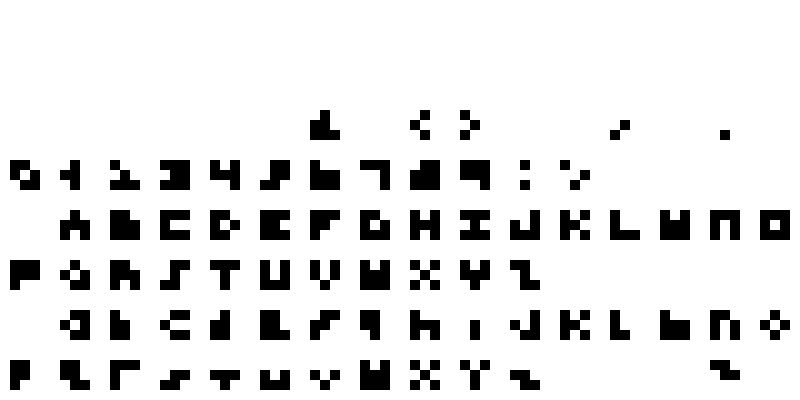

mem mono 3x3
Font Metadata
Additional information for the font including name, kerning, and other layout metrics.
Aseprite Metadata
Additional information spritesheet interpretation. See the atlas-pack definition.
Known issues
- Aseprite kerning is strange. As a workaround, Aseprite-specific files are generated with the kerning multiplied by the cell height. It's also quite possible this font has incorrect kerning.
- Sprite sheet dimensions are not powers of two.
- Live Server now appears unmaintained. Caching must be disabled via browser Dev Tools for changes to appear.
See the to-do for more issues.
Design Principles
mem 5x6
- Excellent high- and low-scale (compact) readability, smoothness (pixel clustering), and visual consistency of the whole character set at the expense of form adherence for individual characters. For example, the lowercase o could be rounder but this comes at the cost of making the font noisier and it is very legible square rather than round. As a counterexample, the lowercase g could be smoother but then it looks too similar to the lowercase o so some exceptions are made.
- Favor 3x5 pixels for every capital character.
- Favor 3x4 pixels for every lowercase character.
- Every numeric is the same width and height, 3x5 pixels, so that countdowns don't shift.
- The preferred inflection for lowercase is one pixel from the top, for the sake of the lowercase e. Everything else is two pixels from the top.
- The font is sans so avoid serifs.
- The font is light so avoid pixel doubling.
Development
Make targets
The development workflow is based around the watch make target:
make watchwatch: build, serve, and reload changes on-the-fly.build: generate all artifacts.
Undocumented targets are considered internal utilities and not expressly supported workflows.
Aseprite
Aseprite is open-source and excellent for pixel graphics. A big chunk of this repo is making a workflow from Aseprite through FontForge.
System Prerequisites
- Aseprite v1.2.20-x64
- FontForge v20190801
- Potrace v1.16
- True Type Font File Dumper (ttfdump) v2019.20190605.51237-3build2
- Watchexec
You can install the first three on Debian with
sudo apt install fontforge potrace texlive-binaries.
Image Diff
Image diffing with Git is useful for verifying changes but requires a custom configuration. One possible setup is described in git-diff-img
Testing the TTF
On Debian, symlink the TTFs in dist to ~/.fonts. You may need to regenerate your
font cache depending on the change made: fc-cache -f -v. The latter seems
necessary for GIMP (and takes effect on next any text layout change) but not
Aseprite which references the TTF files directly.
Links
Alternatives
To-Do
References
- Creating a Pixel Font for Your Game
- Teleglitch
- FontForge Documentation
- FontForge Python Scripting
- FontForge Bitmap Strikes Documentation
