npm-audit-visualizer

A web-based tool to visualize audit reports generated by npm audit.

Disclaimer: This tool is still in its alpha phase.

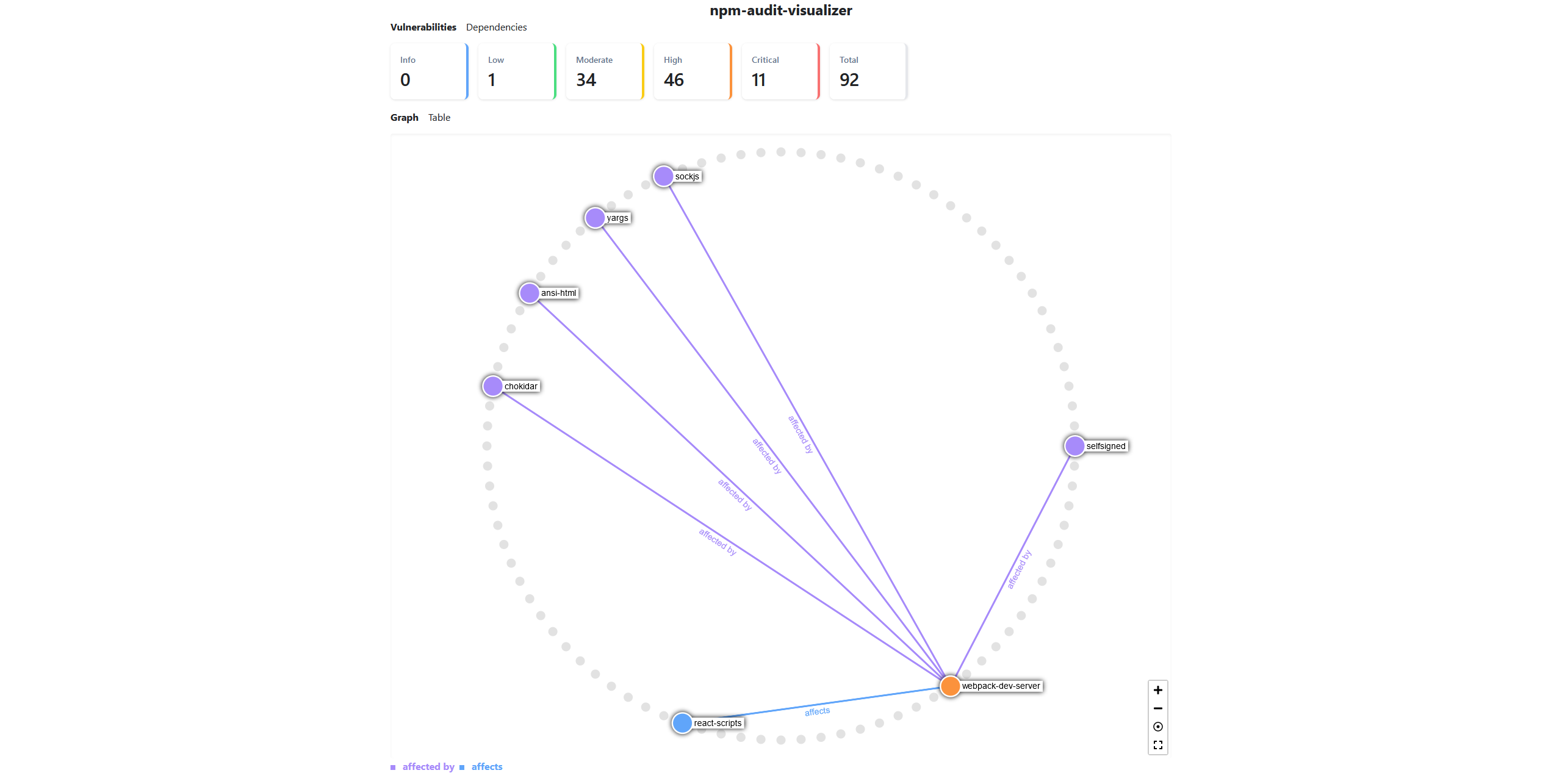

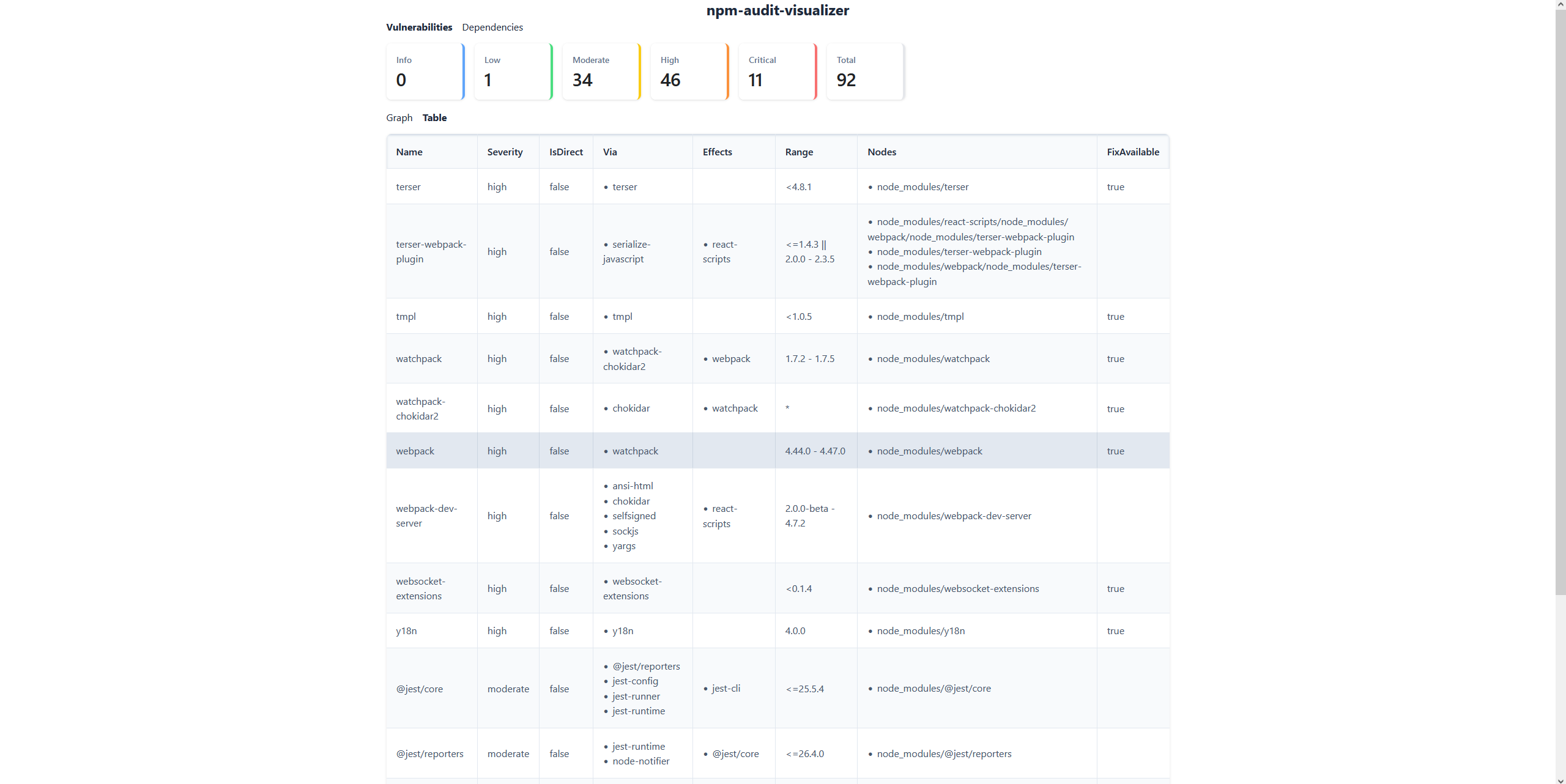

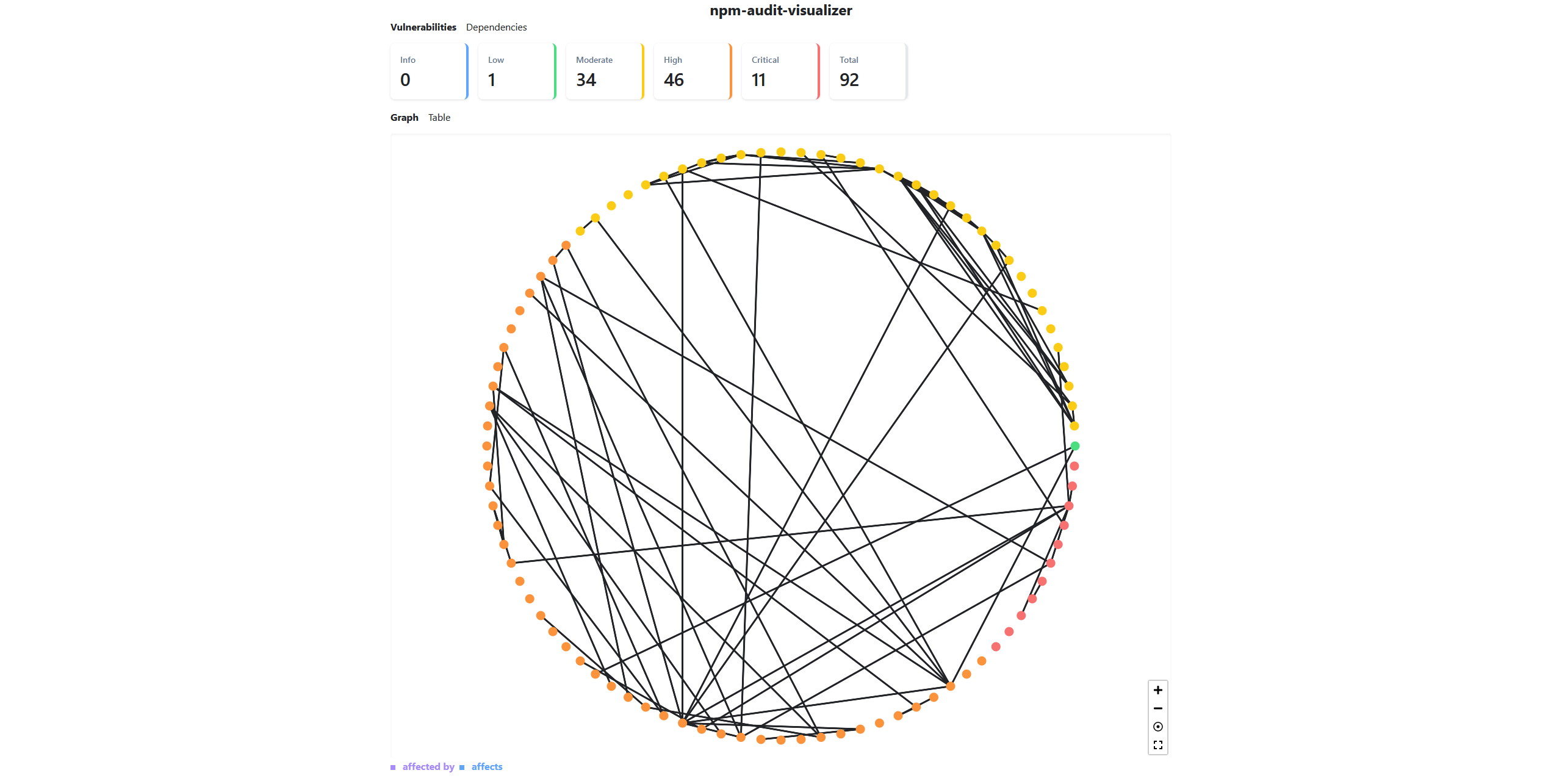

Previews

Get the tool

npm install -g npm-audit-visualizer

To verify that the installation was successful, please try the --help flag:

npm-audit-visualizer --help

Usage

Navigate to a project that has package vulnerabilities and generate an audit report:

npm audit --json > audit.json

Then, run the tool on the generated audit report:

npm-audit-visualizer -f audit.json

By default, this should automatically open a new page in your web browser at the URL: http://localhost:1248. If it does not, please try navigating to that URL manually.

About

What

npm-audit-visualizer is a web-based tool to visualize audit reports generated by npm audit.

Why

With v7 of npm, the npm audit command was updated & it no longer displays results in a tabular format.

While the new format is still useful, there were some visual elements to the old tabular format that made it easier to trace vulnerability paths & dependencies.

As a result, the goal of this tool is to re-provide a visual interface for audit reports, which can hopefully make it quicker and easier to identify and resolve vulnerabilities within npm-managed projects.

How

TODO

Development

This section will describe how to get the project setup for local development.

Dependencies

To work with this project, you will need to have the following dependencies installed:

• Node.js (v20+)
  • Official
  • fnm
  • nvm

Get the source

This project is hosted at: https://github.com/nrednav/npm-audit-visualizer

To clone it locally:

HTTPS:

git clone https://github.com/nrednav/npm-audit-visualizer.git

SSH:

git clone git@github.com:nrednav/npm-audit-visualizer.git

Installation

To install the project's dependencies:

cd npm-audit-visualizer/
npm install

Building

To build the project:

npm run build

This will also build the web-app.

Testing

To run all the project's tests:

npm run test

Alternatively, you can run just the web-app tests with:

npm run test:web-app

Run

To run the tool:

npm run dev -- -f <path/to/audit.json>

You can also run the tool in debug mode using the -d flag:

npm run dev -- -d -f <path/to/audit.json>

This will output additional logs for each stage the tool completes.

Issues & Requests

To request a new feature or report a bug, please open an issue by clicking here.

Resources

• npm-audit v10

Changelog

All notable changes to this project will be documented in this file.

The format is based on Keep a Changelog, and this project adheres to Semantic Versioning.

v1.0.0-alpha.7 - 2024-06-02

Changed

• Updated styles of table visualizer

v1.0.0-alpha.6 - 2024-06-02

Added

• Added retry logic to the web-app server for when ports are already being used

v1.0.0-alpha.5 - 2024-06-01

Added

• Added styles for metadata cards

Changed

• Changed color palette for severity levels

v1.0.0-alpha.4 - 2024-05-02

Added

• Added logs to pre-commit & pre-push git hooks
• Added code to AuditReport parser that will generate ID's (sha256 hashes) for each vulnerability
  • This will make them easier to work with in the Web App since React requires element keys to be unique
• Implemented basic vulnerability table visualizer
• Added shared utility type ValueOf

Changed

• Updated sortVulnerabilitiesBySeverity to accept a sortOrder argument
• Updated createVulnerabilityTable to sort vulnerabilities in descending order of severity (critical -> low)
• Updated VulnerabilitySchema to include id as an optional field

v1.0.0-alpha.3 - 2024-04-29

Added

• Defined new constant SEVERITY_COLOR_MAP which maps severity levels to a color
• Added new colors
  • red, yellow, limeGreen, green, grey, purple, blue

Changed

• Vulnerabilities are now sorted by their severity in the AuditReport/Parser module
  • This is so that vulnerabilities are grouped by their severity e.g. all critical vulnerabilities will be lined up next to each other in a sequence
• Replace incoming & outgoing edge colors with purple & blue respectively
  • Since COLORS.coral will be used to represent high severity vulnerabilities
• Non-neighboring nodes will now be colored COLORS.grey when a node is hovered
  • This is so that the hovered node & its neighbors can be more easily distinguished

v1.0.0-alpha.2 - 2024-04-14

Added

• Defined light and dark colors for web app
• Added root as new path alias
• Created new hook useParsedAuditReport
  • This contains all logic related to reading the exported parsed-audit-report.json into the web app domain
• Created Visualizer component
• Added new dependencies to web app
  • sigma, react-sigma, graphology, graphology-types
• Added label and size attributes to graph nodes
• Added size attribute to graph edges
• Added new scripts to web-app package.json
  • predev copies parsed-audit-report.json from the root build directory into WebApp/public
    • For the web-app to work in dev mode (npm run dev), it requires a parsed-audit-report.json to be present in WebApp/build
    • Note: This does require that npm run dev is run within the root project directory first, so that a parsed-audit-report.json is exported
  • clean ensures that WebApp/build starts from a clean slate each time & that parsed-audit-report.json is not stale
  • prebuild ensures that clean runs before every build, including at the publish stage for prepack
• Added new dependencies
  • graphology-layout
  • del-cli
• Temporarily mocked Visualizer component in App test suite
• Added new components VulnerabilityGraph, GraphLegend
• Added constants.ts to track constants like color hexcodes

Removed

• Removed shadcn and related dependencies + code changes
• Removed vite.svg link from index.html

Changed

• Replaced @ path alias with src
• Refactored App test suite to use mock of useParsedAuditReport hook
• Rehoused Tab and TabList components in their own separate files
• Replace normal edges with directed edges
• Re-organized structure of Visualizer component
• Changed shade of dark color from #162026 to #212326

v1.0.0-alpha.1 - 2024-04-10

Added

• Added --port flag

v1.0.0-alpha.0 - 2024-04-10

• First Release
