KanbanBoard React Component

A flexible and customizable Kanban board component for React applications. The KanbanBoard component allows you to create interactive and draggable task cards organized into columns, making it ideal for project management and task tracking.

KanbanBoard Component

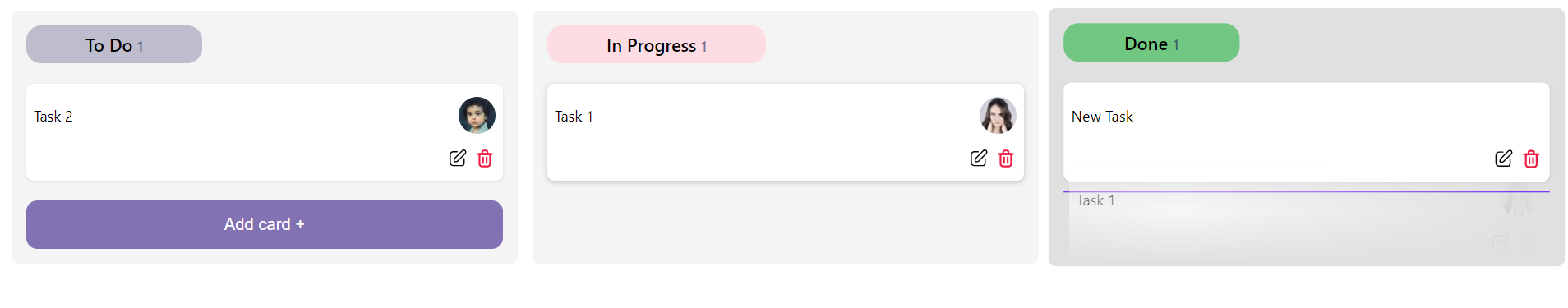

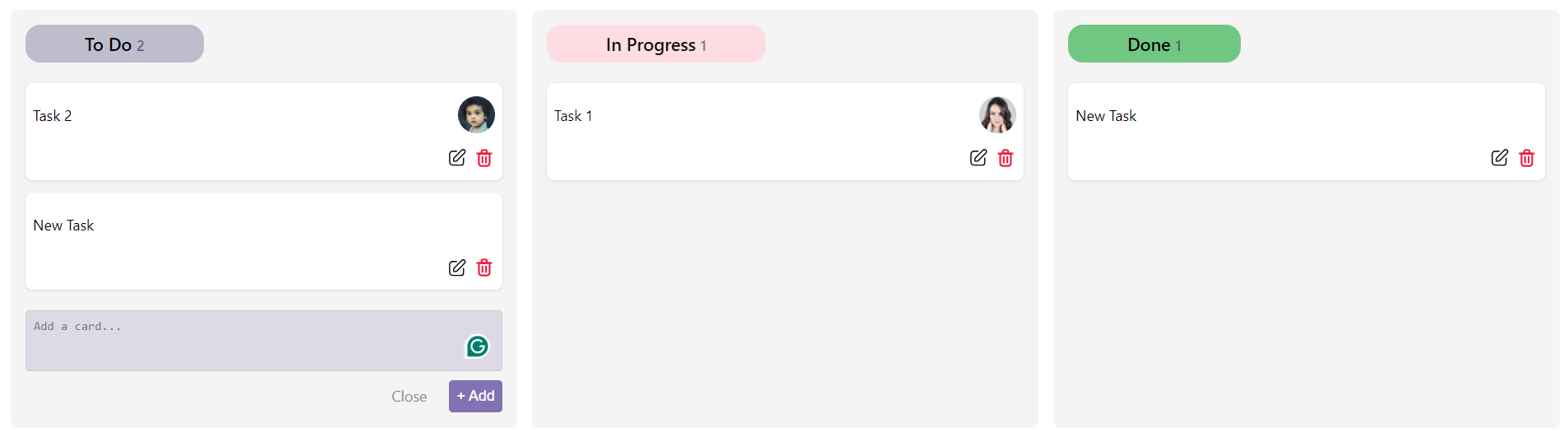

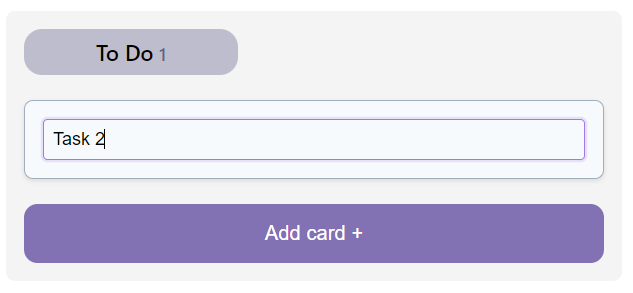

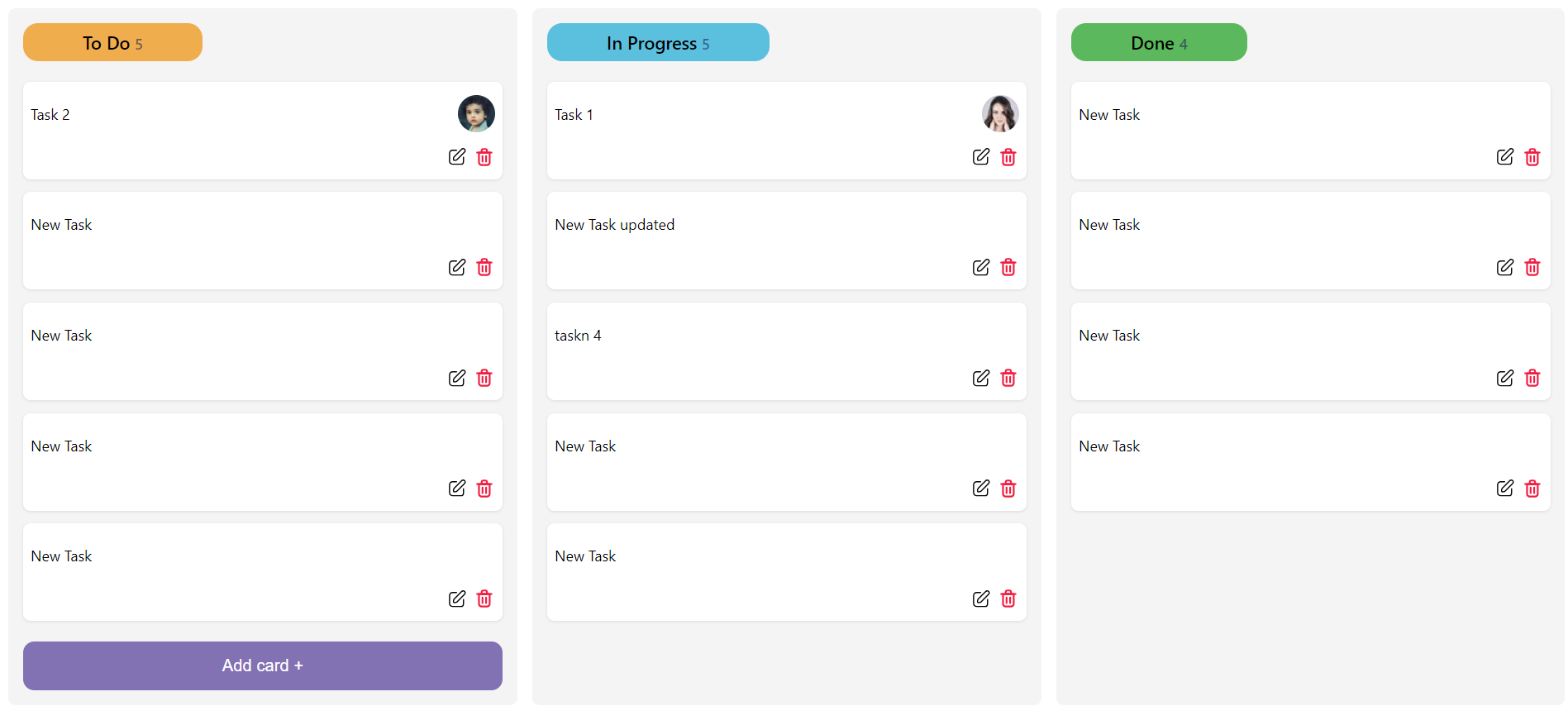

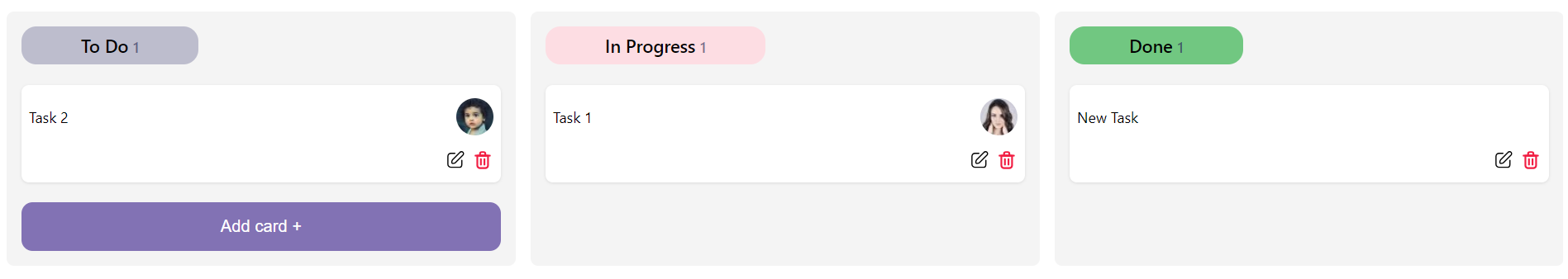

Here are some visual examples of the Kanban board component:

Features

• Drag and Drop Functionality: Move task cards between columns with ease.
• Customizable Card Rendering: Tailor the appearance of task cards to fit your design.
• Add, Edit, and Delete Tasks: Manage tasks directly from the Kanban board.
• Support for Avatars: Display avatars on task cards for better team representation.
• Customizable Actions: Define custom actions for task cards.

Installation

Install the KanbanBoard component via NPM:

npm install react-custom-kanban-board

or using yarn:

yarn add react-custom-kanban-board

Usage

Basic Example

Import and use the Kanban board in your React project:

import React from 'react';
import KanbanBoard from 'react-custom-kanban-board';

const columns: Column[] = [
    { title: "To Do", key: "todo", color: "#BDBDCD" },
    { title: "In Progress", key: "in-progress", color: "#FDDDE3" },
    { title: "Done", key: "done", color: "#71C781" },
  ];

const initialCards: Card[] = [
    {
      id: "1",
      title: "Task 1",
      status: "todo",
      avatarPath: "https://i.pravatar.cc/40?img=1",
    },
    {
      id: "2",
      title: "Task 2",
      status: "in-progress",
      avatarPath: "https://i.pravatar.cc/40?img=2",
    },
  ];

const App = () => {
  return (
    <div>
      <h1>My Kanban Board</h1>
      <KanbanBoard
        columns={columns}
        initialCards={initialCards}
        columnForAddCard="todo"
      />
    </div>
  );
};

export default App;

Custom Example

Customize the Kanban board's card rendering and actions:

import React from 'react';
import KanbanBoard, { Card, Column } from 'react-custom-kanban-board';

const columns : Column[] = [
  { title: "To Do", key: "todo", color: "#f0ad4e" },
  { title: "In Progress", key: "in-progress", color: "#5bc0de" },
  { title: "Done", key: "done", color: "#5cb85c" },
];

const initialCards : Card[] = [
  {
    id: "1",
    title: "Task 1",
    status: "todo",
    avatarPath: "https://i.pravatar.cc/40?img=1",
  },
  {
    id: "2",
    title: "Task 2",
    status: "in-progress",
    avatarPath: "https://i.pravatar.cc/40?img=2",
  },
];

const renderCard = (card: Card, handleDragStart: (e: React.DragEvent<HTMLDivElement>, card: Card) => void) => (
  <div
    draggable
    onDragStart={(e) => handleDragStart(e, card)}
    style={{
      backgroundColor: "#f9f9f9",
      border: "1px solid #ddd",
      borderRadius: "8px",
      padding: "16px",
      margin: "8px 0",
      boxShadow: "0 2px 4px rgba(0, 0, 0, 0.1)",
      transition: "transform 0.2s",
    }}
    onMouseEnter={(e) => (e.currentTarget.style.transform = "scale(1.02)")}
    onMouseLeave={(e) => (e.currentTarget.style.transform = "scale(1)")}
  >
    <div
      style={{
        display: "flex",
        justifyContent: "space-between",
        alignItems: "center",
      }}
    >
      <h3
        style={{
          fontSize: "1.2rem",
          color: "#333",
          margin: 0,
        }}
      >
        {card.title}
      </h3>
      {card.avatarPath && <img src={card.avatarPath} alt={`image ${card.avatarPath}`} style={{ width: "32px", height: "32px", borderRadius: "50%", border: "2px solid #007bff" }} />}
    </div>
  </div>
);

const renderAddCard = (column: string, setCards: React.Dispatch<React.SetStateAction<Card[]>>) => (
  <div style={{ margin: "16px 0" }}>
    <button
      onClick={() =>
        setCards((prev) => [
          ...prev,
          {
            id: Math.random().toString(),
            title: "New Task",
            status: column,
          },
        ])
      }
      style={{
        backgroundColor: "#007bff",
        color: "white",
        border: "none",
        borderRadius: "4px",
        padding: "10px 16px",
        cursor: "pointer",
        transition: "background-color 0.2s",
      }}
      onMouseEnter={(e) => (e.currentTarget.style.backgroundColor = "#0056b3")}
      onMouseLeave={(e) => (e.currentTarget.style.backgroundColor = "#007bff")}
    >
      + Add a card
    </button>
  </div>
);

const App = () => {
  return (
    <div>
      <h1>My Custom Kanban Board</h1>
      <KanbanBoard
        columns={columns}
        initialCards={initialCards}
        columnForAddCard="todo"
        renderCard={renderCard}
        renderAddCard={renderAddCard}
      />
    </div>
  );
};

export default App;

Props

KanbanBoard Component Props

Column Interface

Card Interface

Contributing

Contributions are welcome! Please open an issue or submit a pull request on GitHub.

Contact

For any questions or issues, please contact HamdyIIbarhim.
