jquintozamora
react-d3-treemap
TreeMap component built with D3 Treemap and React based on Mike Bostock´s Treemap.

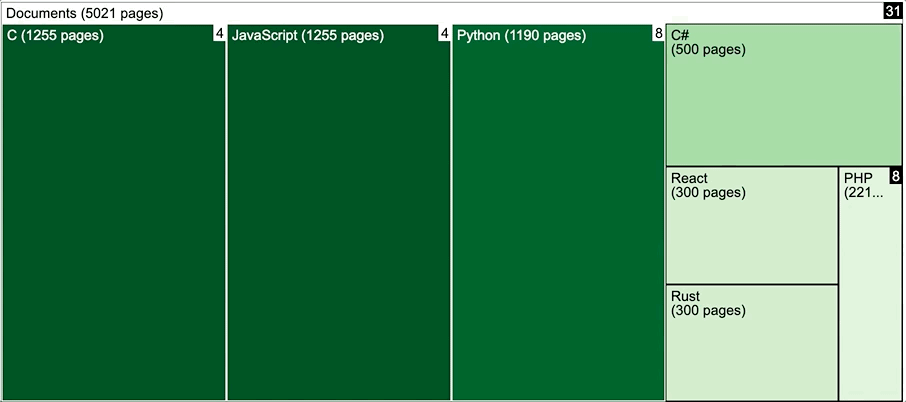

DEMO
Features
- React for painting SVG
- D3 for doing the maths calculations
Installation
Steps to use react-d3-treemap in your React project
1.Install from NPM
npm install --save react-d3-treemap2. Import and use in your application
import TreeMap from "react-d3-treemap"
// Include its styles in you build process as well
import "react-d3-treemap/dist/react.d3.treemap.css"3. Usage
interface TreeMapInPutData {
id: number
name: string
value?: number
children?: Array<TreeMapInPutData>
className?: string
link?: string
}
<TreeMap<TreeMapInPutData>
id="myTreeMap"
width={500}
height={400}
data={<my data matching TreeMapInputData interface>}
valueUnit={"MB"}
/>Props
/**
* TreeMap id, will be use for create a unique for each node
*/
id: string;
/**
* TreeMap width
*/
width: number;
/**
* TreeMap height
*/
height: number;
/**
* TreeMap data. Normally should have at least name, value and children.
*
* Example:
* interface TreeMapInPutData {
* id: number
* name: string
* value?: number
* children?: Array<TreeMapInPutData>
* className?: string
* link?: string
* }
*/
data: TreeMapInputData;
/*
Unit for values. For example MB
*/
valueUnit?: string;
/*
* Format for the values
* https://github.com/d3/d3-format#format
*/
valueFormat?: string;
/**
* Hide breadcrumb.
*
* If you app doesn't use breadcrumb, you can pass down a ref
* and use the methods: zoomOut, resetZoom
*/
disableBreadcrumb?: boolean;
/**
* There are few color strategies for nodes:
* Depth: different color per depth
* Value: different color depends on how big / small is the value
* NumberOfChildren: different color depends on how many children node has
* OneEachChildren: one color per each top children, then range of colors from white to that one
*/
colorModel?: ColorModel;
/**
* Don't show the value
*/
hideValue?: boolean;
/**
* Overrides top div main class
*/
className?: string;
/**
* Overrides svg class
*/
svgClassName?: string;
/**
* Overrides node class
*/
nodeClassName?: string;
/**
* Overrides breadcrumb class
*/
breadCrumbClassName?: string;
/**
* Overrides svg style
*/
svgStyle?: React.CSSProperties;
/**
* Overrides node style
*/
nodeStyle?: React.CSSProperties;
/**
* Padding between nodes ( calculated by D3 )
*/
paddingInner?: number;
/**
* Custom ScaleSequential from D3
*/
customD3ColorScale?: ScaleSequential<string>;
/**
* Name for the property `name` included in data
*
* @default "name"
*/
namePropInData?: string;
/**
* Name for the property `link` included in data
*
* @default "link"
*/
linkPropInData?: string;
/**
* Name for the property `value` included in data
*
* @default "value"
*/
valuePropInData?: string;
/**
* Name for the property `children` included in data
*
* @default "children"
*/
childrenPropInData?: string;
/**
* Captures on zoom event
*/
onZoom?: (
currentNode: HierarchyRectangularNode<TreeMapInputData>
) => void;
/**
* Indicates where to place NumberOfChildren box
*
* @default NumberOfChildrenPlacement.BottomRight
*/
numberOfChildrenPlacement: NumberOfChildrenPlacement;
/**
* Color for text and children counter when background is dark
*
* @default white
*/
darkNodeTextColor?: string;
/**
* Color for node border when background is dark
*
* @default white
*/
darkNodeBorderColor?: string;
/**
* Color for text and children counter when background is light
*
* @default black
*/
lightNodeTextColor?: string;
/**
* Color for node border when background is dark
*
* @default black
*/
lightNodeBorderColor?: string;
/**
* Override value text for node
*/
valueFn?: (value: number) => string
/**
* Tooltip placement. If none is specified then is automatic depending on
* the quadrant of the treeMap
*/
tooltipPlacement?: TooltipPlacement;
/**
* Tooltip custom css class
*/
tooltipClassName?: string;
/**
* Disable custom tooltip
*
* @default false
*/
disableTooltip?: boolean
/**
* Tooltip offset X
*
* @default 0
*/
tooltipOffsetX?: number;
/**
* Tooltip offset Y
*
* @default 0
*/
tooltipOffsetY?: number;
/**
* Number of levels to display in TreeMap
*
* @default 1
*/
levelsToDisplay?: number;App sample
You can see an example of App here.
Data sample
You can see an example of data here.
TypeScript sample
I created a TypeScript consume sample for React D3 Treemap.
License
BSD 3-Clause License
