Angular TN County Datamap

An Angular module for selecting Tennessee counties from a svg map.

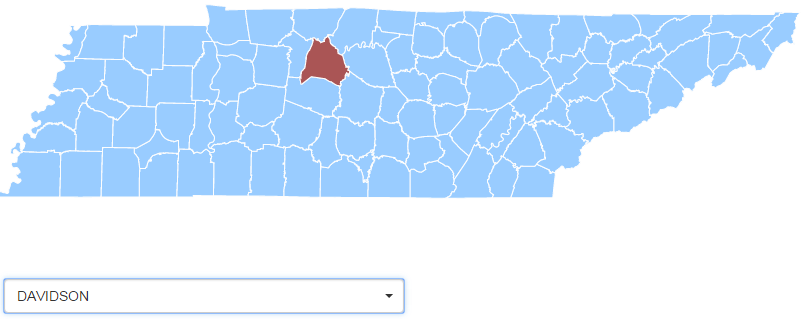

Single select example

Installation

In your project's root, run

bower install tn-datamaps --save
--OR--
npm install tn-datamaps --save

In addition to having AngularJS installed, you will need a reference to the following source files:

  • underscore.js
  • d3.js
  • topojson.js
  • datamaps.all.js
  • angular-datamaps.js
  • tnDatamaps.js

An example order could look like so:

<script src="bower_components/angular/angular.min.js"></script>
<script src="bower_components/d3/d3.js"></script>
<script src="bower_components/topojson/topojson.js"></script>
<script src="bower_components/datamaps/dist/datamaps.all.js"></script>
<script src="bower_components/angular-datamaps/dist/angular-datamaps.js"></script>
<script src="bower_components/underscore/underscore.js"></script>
<script src="bower_components/tn-datamaps/tnDatamaps.js"></script>
<[your code here]>

Next, include it in your main angular module:

var app = angular.module('omgMyAngularApp', ['countyMap']);

You now have a <county-map></county-map> element available for use!

Configuration

For two-way binding, the county-map directive needs three attributes: selected-counties, key, and counties.

  • selected-counties can be an array or object literal. If you want to be able to select multiple counties, make it an array; for picking single counties, bind it to a single county object.

  • key is what the directive uses to access the county name property for any given collection of counties.

  • counties is the entire list of 95 TN counties. This is probably what you are generating a list or dropdown of counties from.

Example usage:

<county-map
    selected-counties="selectedCounties"
    key="name"               <!-- { 'id': '107', 'name': 'Davidson', 'district': '3' } -->
    counties="counties"
    options="mapOptions"
</county-map>

##### The directive has an 'options' attribute you can configure in your controller which has the following properties:
Datatype Name Description
boolean multiple allow multiple counties to be selected
object fills color object with 'selected' and 'defaultFill' values
function(newCounty, geography) onAfterCountySelect callback function to be executed when county is clicked
string[] classes optional list of classes to add to the svg map element
string url optional path to topo_tn_counties.json file (defaults to '/bower_components/tn-datamaps/topo_tn_counties.json')

#### E.g.: ```javascript app.controller('omgMyController', function() {
$scope.mapOptions = {
    multiple: true,
    fills: {
        'defaultFill': 'tomato',
        'selected': 'lightblue'
    },
    onAfterCountySelect: function(newCounty, geography) {
        console.log(newCounty);
        console.log(geography);
    },
    classes: ['omg-my-tn-map', 'county-select'],        //adds these classes
    url: 'dist/lib/tn-datamaps/topo_tn_counties.json'   //directly to the svg element
};

}); `


![Multiple select example](/county_map_multi_snip.PNG)
