Service allows to set mqtt proxy from wirenboard rule script

Install

Please connect your device to the internet

Install NodeJS, if it is not yet

curl -sL https://deb.nodesource.com/setup_12.x | bash -
apt-get install -y nodejs git make g++ gcc build-essential

Install this packet to global space

npm i -g wirenboard-mqtt-proxy

Start the service

wirenboard-mqtt-proxy start

To enable autorun on boot use it

wirenboard-mqtt-proxy enable

After that you will see mqtt proxy device inside wirenboard UI

proxy_screen

Cool! Now we can use proxy from wirenboard rules. Lets start from simple script, where we will get current temperature from ebus daemon using topic ebusd/370/DisplayedRoomTemp

Due to connect value we can detect when service started after device reboot, so since proxy started lets add necessary topic. Best way to do it - using JSON format task

{
  "task": "add",
  "from": "ebusd/370/DisplayedRoomTemp",
  "to": "/devices/test/controls/t_current"
}

Result rule: test.js

//  created virtual device called "Test"  //
defineVirtualDevice("test", {
  title: "Test",
  cells: {
    t_current:     { type: "temperature",     value: 0 },
    status:     { type: "text",     value: "NOT CONNECTED", forceDefault: true},
  }
});

//  check proxy started  //
setInterval(function(){
  //  wait service started  //
  if (dev["mqtt-proxy"]["connected"] !== 1) return;

  //  set topics  //
  if (dev["test"]["status"] !== "CONNECTED") {
    dev["test"]["status"] = "CONNECTED";
    log("Test: Connected to proxy");

    dev["mqtt-proxy"]["config"] = '{ "task": "add", "from": "ebusd/370/DisplayedRoomTemp", "to": "/devices/test/controls/t_current" }';
  }
}, 1000);

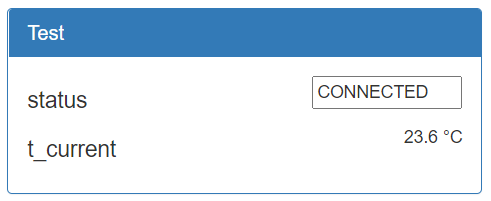

When proxy will be connected, test device will set config and will receive temperature data

test_screen

Available commands

wirenboard-mqtt-proxy enable - Enable autorun on boot OS
wirenboard-mqtt-proxy disable - Disable autorun on boot OS
wirenboard-mqtt-proxy start - Start mqtt proxy
wirenboard-mqtt-proxy stop - Stop mqtt proxy
wirenboard-mqtt-proxy restart - Restart mqtt proxy

All commands using systemctl, so you can also do this

systemctl status wirenboard-mqtt-proxy - Show service status
journalctl -u wirenboard-mqtt-proxy -f - Show logs

Notice

wirenboard-mqtt-proxy command using systemctl to enable autorun on boot OS, so service file wirenboard-mqtt-proxy copied to /etc/systemd/system folder, when you using enable, start, restart command

If you need to edit some files - you can find them at npm global space. This command will help you to locate it

npm root -g
