[Unreleased]
0.84.0-ML-1 (2022-11-04)
Bug Fixes
- MaieuticalLabs: #1072 Changed the way the array of keyboard layouts was
sorted while discovering the more probable layout in use.
0.84.0 (2022-10-19)
New Features
- When using
renderMathInElement or renderMathInDocument to render math
content, the math content can now be provided as MathJSON in addition to LaTeX
by using a <script> tag with a type of math/json.
<script type="math/json">
["Cos", ["Divide", "Pi", 7]]
</script>
Improvements
- The
MathfieldElement now has a setter for expression, which allows to set
the value of a mathfield to a MathJSON expression.
Bug Fixes
- #1669 Don't attempt to get the local URL base when using absolute URLs.
Allow
null as a value for fontsDirectory and soundDirectory to prevent
any attempt to resolve these values.
0.83.0 (2022-10-02)
Improvements
- When navigating with the keyboard from a numerator to a denominator (or any
above/below branch), determine the new position of the caret visually, rather
than by its index in the subexpression. Contributed by @manstie
Commands and key bindings to manipulate array/matrix:
| Key Binding | Command |
| :-------------------------------------------------------------------- | :---------------- |
| <kbd>ctrl/⌘</kbd>+<kbd>;</kbd>
<kbd>ctrl/⌘</kbd>+<kbd>RETURN</kbd> | addRowAfter |
| <kbd>ctrl/⌘</kbd>+<kbd>shift</kbd>+<kbd>;</kbd> | addRowBefore |
| <kbd>ctrl/⌘</kbd>+<kbd>,</kbd> | addColumnAfter |
| <kbd>ctrl/⌘</kbd>+<kbd>shift</kbd>+<kbd>,</kbd> | addColumnBefore |
| <kbd>ctrl/⌘</kbd>+<kbd>BACKSPACE</kbd> | removeRow |
| <kbd>shift</kbd>+<kbd>BACKSPACE</kbd> | removeColumn |
Contributed by @manstie
Updated to Compute Engine 0.8
Bug Fixes
- The caret after an environment without fences (e.g.
matrix, aligned, etc)
would not be displayed.
0.82.0 (2022-09-30)
Improvements
- Update Compute Engine to 0.7.0
0.81.0 (2022-09-28)
Improvements
- #1639 When navigating with the keyboard from a cell in a matrix to another
cell above or below, the new position of the caret is determined visually so
that the caret is approximately in the same horizontal position. Previously,
the position was determined by position/index. Contributed by @manstie. Thank
you!
- Expose the
placeholders property on MathfieldElement to get access to the
"fill-in-the-blank" mathfields, i.e.
<math-field readonly>f(x)=\placeholder[var1]{x}</math-field>
- Don't apply smart superscript on big operators (e.g.
\sum). Smart
superscript moves immediately out of the superscript if the input is a single
digit. Works well for, e.g. x^2 but is less desirable with \sum.
0.80.0 (2022-09-27)
Bug Fixes
- #1540 When changing the
readonly or disabled attribute of a mathfield,
hide the virtual keyboard if the mathfield had the focus.
- #1641 A read-only mathfield would still accept inline shortcuts.
- #1618 In some cases, on touch-capable devices the OS virtual keyboard
would be displayed instead of the virtual keyboard.
- #1620 On devices with a touch screen and a physical keyboard (Lenovo Yoga,
Chromebooks), pressing the Enter key would input the string
Enter into
the mathfield.
- #1631 Hit-testing detection improvements
- #1640 An
input event was dispatched when the value of the mathfield was
changed programatically.
- #1330 Make MathLive
convertLatexToMarkup() usable from Node.js
- #1641 Correctly render units in a chemical equation, e.g.
\pu{123 kJ//mol}.
- #1643 Physical units with multiplication are now rendered correctly, e.g.
\pu{123 J*s}.
New Features
- #1541 To be notified when the visibility of the virtual keyboard changes
and using
makeSharedVirtualKeyboard(), listen for the
virtual-keyboard-toggle on the object returned by
makeSharedVirtualKeyboard():
const k = makeSharedVirtualKeyboard();
k.addEventListener('virtual-keyboard-toggle', (ev) =>
console.log('toggling ', ev)
);
- The
math-mode event is now cancelable (by calling .preventDefault() on the
event). This can be used for example to turn off the ability to switch to the
LaTeX editing mode:
mf.addEventListener('mode-change', (ev) => ev.preventDefault(), {
capture: true,
});
- The command
plonk was added. It plays a sound indicating an error, and can
associated with a keybinding, or triggered with mf.executeCommand().
- To determine the offset (caret position) in a mathfield given a viewport
coordinate, use
mf.offsetFromPoint().
- #1641 Support for the
\mathchoice command.
- #1643 Support for the
\kern, \mkern and \mspace command.
0.79.0 (2022-09-06)
Breaking Changes
- The
onMulticharSymbol handler has been renamed to onInlineShortcut
- The deprecated
modelHooks have been removed. Use the corresponding events
instead: move-out, focus-out, announce.
- The
onModeChange, onReadAloudStatusChange, onBlur, onFocus,
onContentWillChange, onContentDidChange, onSelectionDidChange,
onUndoStateWillChange, onUndoStateDidChange and onCommit deprecated
listeners have been removed. Used the corresponding events mode-change,
read-aloud-status-change, blur, focus, beforeinput, input,
selection-change, undo-state-change and change.
- The
onKeystroke handler has been removed. Instead use
mf.addEventListener("keydown",...)
- Improved editing of left-right delimiters:
- keep leftright atom if only one of its delimiters is removed
- only hoist body if both delimiters are removed
Improvements
- More inline shortcut patterns are now recognized, which can be useful for more
complex multicharacter symbols, e.g.
alpha2 -> \alpha_{2}
- Pressing the space bar will flush the inline shortcut buffer, allowing the
input of a key combination that would otherwise trigger a shortcut
- #1584 Pressing the spacebar when at the root level now does nothing.
Previously it would jump at the end of the expression, which wasn't very
useful and potentially confusing.
- #1585 In some situations, improve the accuracy of the hit testing
- Upconvert unicode characters to corresponding LaTeX command when available
- When a scaling factor is applied to the mathfield or one of its DOM ancestors,
correctly scale the selection background accordingly
Bug Fixes
- #1042 Spacing atoms (e.g.
\;) are now clickable and selectable
- #1590 Improved selection of content inside tabular environments (matrix,
etc...)
- #1591 Improved cursor order when deleting values in fraction when
fractionNavigationOrder mode is denominator-numerator.
- #1592 When applying color to some math content, the command
\mathcolor
would be serialized. The correct command is \textcolor which despite its
name is also applicable in math mode.
- #1605 In some cases, clicking on the space between two atoms would not
position the caret.
0.78.2 (2022-08-18)
Features
- #1580 Added support for infix commands
\brace and \brack. These
commands are provided for improved compatibility with existing LaTeX content,
but in general infix commands are not recommended to create new content.
Bug Fixed
#1583 Changing the focus programatically could result in subsequent
keyboard input being incorrect
#1581 Added padding to labels below and above extensible arrows (e.g.
\xrightarrow)
The \ce command would not render chemical equations (regression).
0.78.1 (2022-08-12)
Bug Fixes
#1570 Multichar symbols (using onMulticharSymbol) would not always be
recognized, for example when following a binary operator.
#1576 regression in 0.78.0: crash when entering Unicode characters with no
special mapping, e.g. "°".
0.78.0 (2022-08-11)
Breaking Changes
The way errors are reported has changed.
Previously a math-error event would be dispatched (or the onError listener
would be invoked). This made it difficult to find out when an error no longer
applied.
font-not-found: If the fonts fail to load, a class of
ML__fonts-did-not-load is added to the document's body.invalid-keybinding: A message is output to the console if a keybinding
includes a combination of keys which cannot be performed with the current
keyboard layout- Other errors are LaTeX syntax errors in the value of the mathfield. There
can be more than one such error in a given mathfield. These errors are
reported as
mf.errors, an array of LatexSyntaxError. This property can
be consulted for example during the handler for a change event.
Inline shortcuts now only apply in math mode. The mode property of
InlineShortcutDefinition has been removed.
Improvements
Internal: introduction of GlobalContext to encapsulate information necessary
to parse and render: macro definitions, registers, definition of commands and
some optional settings. A mathfield is a GlobalContext, but it is also used
when rendering static LaTeX.
The symbol used to indicate a placeholder (i.e. \placeholder{}) can now be
customized with mf.setOptions({ placeholderSymbol: '?' }).
Some symbols that work pretty well:
- ■
U+25A0 BLACK SQUARE
- ▢
U+25A2 WHITE SQUARE WITH ROUNDED CORNERS
- ⬚
U+2B1A DOTTED SQUARE
The following CSS variables can be used to control the appearance of the
selection:
--selection-background-color-focused--selection-background-color--selection-color-focused--selection-color--caret-color
Spacing commands (e.g. \,) now serialize a space when using the ascii-math
format
#1572 Keyboard events (keyup, keydown, keypress) are now fired more
consistently. They can be intercepted by calling preventDefault() during the
capture phase.
Features
- #1556 Support for East-Asian fraction navigation, where the denominator is
read/written before the numerator. To use East Asian fraction navigation, set
the option
fractionNavigationOrder to "denominator-numerator".
- Paste in a mathfield can be prevented by listening for a
paste event and
doing a preventDefault() on it
- #1439 A synthetic
click event is now dispatched when a click occurs
inside the mathfield.
Bug Fixes
- When using the Chrome Device Toolbar to emulate a mobile device, typing on the
physical keyboard resulted in duplicate input.
- #1545 Switching from a tab with a focused mathfield to another tab, then
return to the tab with the matfield would lose the focus on the mathfield. The
focus is now restored, similarly to what happens with a textarea element
- When repeatedly hiding/showing the virtual keyboard, the virtual keyboard
stylesheet would leak in the
<header> of the document
- #1564 The
keydown events are now propagated for non-printable keys.
- #1561 Last atom in group (atom with
skipBoundary property) was skipped
when moving forward
0.77.0 (2022-07-05)
Improvements

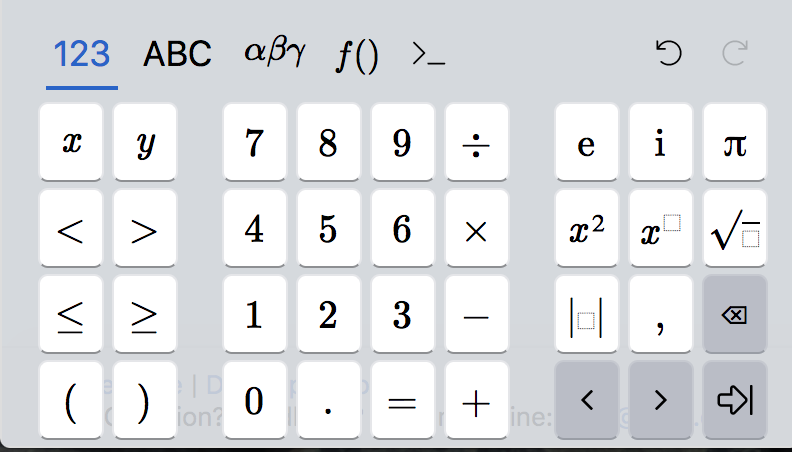

- Changed the key on the bottom right of the virtual keyboard from
moveToNextPlaceholder (equivalent to Tab key on physical keyboard) to
commit (equivalent to Return on physical keyboard). Pressing this key
(or the Return key on a physical keyboard) triggers a change event.
Bug Fixes
- #1523 When switching between keyboard layouts the body of the document was
getting erroneously enlarged vertically.
- When using
makeSharedVirtualKeyboard() if clicking directly on the virtual
keyboard toggle of a mathfield that is not focused, the keyboard would be
displayed with options that did not match the mathfield (it would have the
wrong custom keyboard for example).
- #1537 On Firefox, calling
blur() on a <math-field> element resulted in
document.activeElement still being set to the mathfield.
- #1544 Allow physical keyboard input to be turned off.
0.76.1 (2022-06-29)
Bug Fixes
- #1521 Regression In some cases a vertical scrollbar unexpectedly
appeared in the mathfield
0.76.0 (2022-06-28)
Improvements
- In the second argument of the
\colorbox command, use \ensuremath when
necessary to indicate that the content is math, rather than a mode shift
command
- When selecting all the children of a superscript or subscript, consider the
superscript/subscript selected as well
- #1041 When pasting textual content, if it can't be otherwise determined,
assume the content to be LaTeX
- Avoid excessive scrolling when bringing the mathfield into view.
- Fonts could get loaded multiple times when the virtual keyboard was displayed
or when static math was rendered
Features
#1335 Added support for the beforeinput and input events from [Input
Events Level 1] (https://www.w3.org/TR/input-events-1/).
While an input event was dispatched before, it did not conform to the
InputEvent interface. The input event now includes an inputType property
detailing what caused the event to be dispatched, and in some cases a data
property.
The beforeinput event is dispatched before the content of the mathfield is
modified and is a cancelable event.
A pair of beforeinput and input events are also dispatched when content is
deleted, with an appropriate inputType value.
An input event with a inputType property of "insertLineBreak" is
dispatched when the Return or Enter keys are pressed.
This matches more closely the behavior of the <textarea> element.
Added new latex-unstyled output format. Use it with getValue() to get a
LaTeX representation of the mathfield content, without any color or background
color styling command
Bug Fixes
- #1489 In some cases, applying a background color, then entering some
equations, could result in incorrect LaTeX output
- Correct serialization for
\char"0040 4, or in general any command with an
unbraced numeric argument followed by an ambiguous decimal or hexadecimal
character
- Avoid crashing when deleting a range that overlaps with all the atoms in the
root
- #1195 MathML output could be incorrect in some situations involving LaTeX
groups followed by a superscript and subscript
- #1120 If a
<mathfield> element had some hooks and listeners customized,
then was removed from the DOM and reinserted later, the hooks and listener
functions would revert to their default implementation
- #1302 Long press on the backspace key of the virtual keyboard would output
an error to the console. Long press on the backspace key is now a shortcut to
clear the entire mathfield.
0.75.0 (2022-06-21)
Features
- #970 It is now possible to vertically scroll the content of the mathfield.
Improvements
- If the layout of the page is such that a mathfield would appear behind a
virtual keyboard because there isn't enough space for the virtual keyboard and
the mathfield, the height of the page is now adjusted so that both the
mathfield and the virtual keyboard are visible (#1358)
- When the virtual keyboard is invoked, if a mathfield was positioned at the
bottom of the page, it could get covered with the virtual keyboard and become
inaccessible
- When a mathfield is set to a fixed height and it contains content that doesn't
fit vertically, a scrollbar will appear.
- If the content of the mathfield was taller than could fit in the mathfield,
typing would not bring the content of the mathfield into view. (#1310)
- When typing or using the virtual keyboard the mathfield would not always
scroll into view to become visible (#1173)
- Propagate content change event on paste in text and LaTeX mode
- Added the
container and content CSS part to customize the inside of the
mathfield.
Bug Fixes
- #1497 On iOS, tapping the edge of the mathfield could bring the native
virtual keyboard
- #1456 When multiple mathfields are present in a page, with
makeSharedVirtualKeyboard(), calling setOptions() to change the virtual
keyboard mode on those mathfields could cause the keyboards to not be shared.
- #1501 The keybindings to get into and out of text mode (
shift+quote)
work again
- #1517 Text content was not correctly serialized
- #1503 A spurious
= character was produced in the serialization of \ne.
The MathML and ASCIIMath serialization of \ne were incorrect.
- #1513 Using the virtual keyboard to apply underline or overline to the
selection resulted in a placeholder being inserted instead.
0.74.0 (2022-06-06)
Improvements
Improved API/workflow to control the behavior of the virtual keyboard when
multiple mathfields are displayed in the page.
In order to get a coordinated behavior between the mathfields, it is now only
necessary to call makeSharedVirtualKeyboard().
The use-shared-virtual-keyboard attribute is now only necessary when using a
mathfield in an iframe.
If the virtual-keyboard-mode attribute of mathfield is set to auto or
onfocus, the virtual keyboard will activate and hide automatically. It is no
longer necessary to set the mode to off and to listen for focus change event
to show/hide the keyboard manually.
If the virtual keyboard is visible and the focus changes between two
mathfields, the virtual keyboard will stay visible (it will not hide with an
animation, then get revealed again).
If changing focus between two mathfields with identical keyboard
configurations the keyboard will not blink (previously the keyboard would get
destructed and reconstructed, even if its configuration was identical between
two mathfields).
Bug Fixes
- #1477 Undo/redo did not generate an
input event
0.73.7 (2022-05-29)
Improvements
- Preferably use serialized atoms for clipboard copy/paste operations. This
internal format captures more of the editing state than the LaTeX
representation.
- Change the default textual output to clipboard to use
$$ as a format
indicator.
Bug Fixes
- #1467 Improvements to the Typescript public declarations
- #1475 Copying a formula containing a matrix could render the mathfield
unresponsive
0.73.6 (2022-05-28)
Bug Fixes
- #1466 In LaTeX mode, doing a Select All (cmd+A), then delete would put the
mathfield in an inconsistent state
- While in LaTeX mode, doing a Select All (cmd+A) with a partial command
followed by an auto-complete suggestion would render the mathfield
unresponsive
0.73.4 (2022-05-27)
Bug Fixes
- Correctly export the Typescript declaration for some static functions.
- When editing a formula that contains a matrix, the formatting of the matrix
could change, for example when pasting some content.
- #1465 The bounds of large operators (integral, sum) would not accept any
content.
- When setting the background color of an entire equation, the color command
would not be generated.
- #1445 Improve the
\colorbox command, and other text mode commands, to be
more interoperable when they contain math content (use $ and $$ rather
than \\( and \\[))
- #1443 On mobile, prevent the focus from changing while the alternate key
panel is up
0.73.1 (2022-05-24)
Bug Fixes
- Using macros without arguments (e.g.
\RR) could result in incorrect LaTeX
- The virtual keyboard could become invisible when re-focusing a mathfield
- Typing a
, (comma) would be rendered as a . (dot)
0.73.0 (2022-05-23)
Breaking Changes
The following attributes of the <math-field> element that were previously
boolean attributes are now enumerated attributes.
A boolean attribute has a value of true if present and false if absent
(it's an HTML standard thing).
An enumerated attribute has an explicit value, usually a string.
As a result of this change the default value of some mathfield attributes have
changed from false to true.
keypress-vibration: "on" | "off" | "" (default "on")remove-extraneous-parentheses: "on" | "off" | "" (default "on")smart-fence: "on" | "off" | "" (default "on")smart-superscript: "on" | "off" | "" (default "on")smart-mode: "on" | "off" | "" (default"off")
If you previously used:
<math-field></math-field>
in order to preserve the same settings, you would now use:
<math-field
keypress-vibration="off"
remove-extraneous-parentheses="off"
smart-fence="off"
smart-superscript="off"
></math-field>
The commands \mleft and \mright are no longer generated automatically.
Previously, when using smart-fence mode, () or \left(...\right), could
be replaced with a \mleft(...\mright) command. This was done to ensure the
proper spacing of delimiters after a function, e.g. \sin(x). Without it,
there is excessive space between the function and the delimiter.
Now the \left...\right command automatically adjust its left spacing based
on the symbol to its left. If the symbol to its left is a function, the
spacing will be tighter. Therefore, \mleft...\mright are no longer required,
although they are still recognized as valid commands.
This change was made because not every LaTeX environment recognize the
\mleft...\mright commands, and this caused interoperability issues.
New Features
Comma , as a decimal separator
The options.decimalSeparator option can be set to . or ,. The default
value is . which corresponds to the current behavior.
When set to ,, pressing the , key on the keyboard will insert a {,}
LaTeX string, if in math mode and if before a digit. The LaTeX sequence {,}
is traditionally used to correctly typeset the comma and ensure the correct
amount of space around it. Without the {}, the , is interpreted as a
delimiter and has excessive amount of space around it.
The virtual keyboard is also changed so that the . key is , instead and
also contextually insert a {,} when appropriate.
A new command insertDecimalSeparator has also been added, which inserts
either {,} if in math mode, right after a digit, and when decimalSeparator
is set to ",". Otherwise, it inserts a "."
Multi character symbols
The onMulticharSymbol() hook provides an opportunity to recognize multi
character symbols and wrap them in an appropriate command.
For example typing speed [\ \to ] \mathrm{speed}
While conventionally \mathrm{} is frequently used to denote multicharacter
symbols in LaTeX, in some contexts \mathit can also be used, for example
using \mathrm to indicate multicharacter function names, but \mathit for
multicharacter variable names.
By default, the hook does nothing and multicharacter symbols are not
recognized.
Support for the \mathnormal{} command, which displays text in italic and
includes italic correction. As opposed to \mathit{} which displays text in
italic, but without italic correction.
Correctly handle double-clicking words styled with \mathrm or \mathit
The appearance of the placeholder symbol has changed to stand out more. Also,
the LaTeX generated for the default placeholder is now simply
\placeholder{}. The argument of \placeholder{} was always optional, and is
still supported. Only the default serialization of the \placeholder{} has
changed.
Improvements
- The MathJSON which is exported to the clipboard during copy/cut operations now
include the verbatim LaTeX from the mathfield.
Bug Fixes
- When extending the selection backwards over a
captureSelection group, do not
extend more than necessary
- #1354 Correctly render
{,}, which is used for French decimal point. Also
correctly handle navigating with the keyboard, that is, handle it as a single
character, not a group. Also correctly render it to MathML (as a .).
- The "contains highlight" and selection rectangles would not always account for
the children of the expression, for example with
\sqrt{\frac12}
- The LaTeX output of subscript or superscripts was incorrect when no value for
the superscript/subscript was provided. For example, typing
x, ^,
right arrow, 2, would incorrectly serialize x^2. It now serializes
x^{}2
- Improved parsing and layout of functions with arguments, i.e.
\sin\left(x\right). Previously, there would be an excessive amount of white
space between the \sin and (. The expression is now correctly interpreted
as a function.
- #1459 When using a non-QWERTY physical keyboard layout, creating multiple
mathfields could result in the keyboard layout being erroneously reset to
QWERTY. This would manifest itself for example by the
/ keybinding no longer
inserting a fraction.
- #1462 When copying and pasting an expression that could not be parsed with
the Compute Engine, the resulting pasted content was displayed as an error.
0.72.2 (2022-04-30)
Bug Fixes
- #1427 An issue introduced in the previous release: the serialization to
LaTeX of some functions (e.g.
\log) failed.
- Serialization to MathML of subscripts/superscripts was incorrect in some cases
- In Chrome, setting the
readonly attribute on mathfield caused the content of
the mathfield to be set to empty.
- #1431 AutoRender of static math expressions would not render correctly
when using
<script type='math/tex; mode=text'>. Auto-render could also fail
catastrophically in some cases.
- Cortexjs.io #15 When loading the fonts (and sounds), the origin of the
library needs to be resolved to determine the relative location of those
files. This was done with a http
GET for each font file, which caused the
entire library to be redownloaded multiple times. The base URL resolution is
now only done once, and with a HEAD request to avoid the download. As a
result, getting the MathLive library ready, especially when using a CDN and a
slow network, is an order of magnitude faster.
0.72.0 (2022-04-18)
Bug Fixes
- #1017 Display tooltip over buttons of virtual keyboard button bar
- #1356 In inline mode, the fraction bar appeared too close to the numerator
- #1222, #1024 When multiple
\ne commands were entered, older ones
would disappear.
- #1013 Cutting the content of the matfield would not work in some cases
- #1149 Improved placement of the horizontal bar above square roots =
#1070 The
\mod command (and \pmod and \bmod) no longer captures the
cursor or allow its content to be selected
- When navigating with the arrow keys backward, if landing on a group atom (e.g.
a macro), allow the cursor to be positioned right after the atom.
- In some rare cases (if no keys but keybinding were entered in a mathfield),
some keybindings would stop functioning
- #1327 Selecting the expression under a square root also selected the
squared root.
- Extending the selection forward when including some atoms such as
\operatorname jumped to the end of the expression.
- #1422 Turning off macros would still fallback to default macros.
- #1037 Correctly serialize
\mathord, \mathbin, etc...
- #1425 Using the up/down keys to navigate could produce an error in some
cases
Improvements
- Use more standard
\mathbb{N}, etc... for NN shortcut

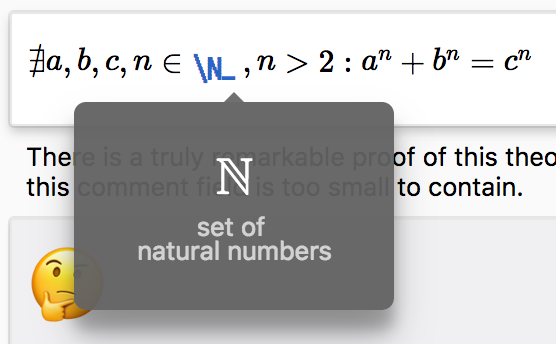

- Improved display of command popover when editing raw LaTeX
0.71.0 (2022-04-12)
Breaking Changes
- Removed the
find and replace methods. These methods were difficult to use,
since they were based on LaTeX serialization and the mapping from atom to
LaTeX is not always intuitive. To replace them it is recommended to extract
the MathJSON representation of the value, and manipulate it using the CortexJS
Compute Engine.
New Features
"math-json" can be used as a format for setValue()
Improvements
- #1415 Atoms inside parentheses are now considered as implicit arguments,
for example when inserting a fraction.
- #1389 Keyboard navigation inside tabular data (matrices, etc...)
- Documentation: some of the data structures were not publicly exported and did
not appear in the documentation (https://cortexjs.io/docs/mathlive/)
- When pasting content that included a double-backslash (e.g. as a row
separator) immediately followed by a character, all double-backslash would be
interpreted as a single backslash (this allowed pasting LaTeX that had been
escaped in JavaScript). However, this caused some legitimate LaTeX to not be
interpreted correctly. The double-backslash are no longer "simplified".
Bug Fixes
- A style applied to a an atom using
applyStyle() was not propagated to its
children
- #1387 A matrix with an empty cell would result in error messages in the
console in some cases
0.70.0 (2022-04-05)
Features
- Uses new version of Compute Engine for serialization to MathJSON and parsing
of LaTeX from MathJSON.
Bug Fixes
- #934 Improved display of the root horizontal bar in some browsers
- #1385 Typing
& is correctly interpreted as \\& (and not &)
- #1363 Commands in the
\overrightarrow{} family can be deleted
- #1375 Inserting a smartfence which was not followed by some content would
trigger some asserts
- Correctly handle deletion of the closing fence of a smartfence
- #1412 Correctly handle insertion of custom macros with
executeCommand
- On Windows/Linux with an AZERTY keyboard, the ² (superscript 2) is now handled
correctly
- #1362 and #726 Correctly handle backspacing over a multi-character
operator, e.g.
<=.
- #1366
pointerup events in a mathfield would not bubble
- In Dark Mode, correctly display SVG shapes, such as
\overrightarrow{ABC}.
Improvements
- #934 Improved layout of
aligned environment by adding missing gap
between columns
- Added macros to the command popover
- Improved visual appearance when using dark mode. Also, added more CSS
variables to customize the appearance of the mathfield.
0.69.10 (2022-02-23)
Bug Fixes
- #1024
\ne and \neq render correctly (fix contributed by @AceGentile)
- Changes to the
read-only attribute are now properly detected (fix
contributed by @LuisMesa)
- Boxes in
\enclose command render correctly (fix contributed by @Zahara-Nour
- #1357 Alternate (shifted) layers described in the virtual keyboard defined
with an object literal would not trigger.
Features
- Support for the
\htmlStyle command (feature contributed by @neokazemi)
- Pressing the
\ key after a trigonometric function will not include the
function in the numerator of the fraction.
0.69.9 (2022-01-06)
Features
Bug Fixes
- #1240 After a Select All (or other selection adjusting commands),
inserting characters in LaTeX mode may result in unresponsive input.
- The z-index of the virtual keyboard
--keyboard-zindex would not always be
applied to the keyboard, resulting in some elements overlaping the virtual
keyboard in some situations.
0.69.8 (2021-11-08)
Bug Fixes
- #1146 When the pointer was over a mathfield, using the scrollwheel or
scroll gesture to scroll the page was not possible
- #1201 In some cases, the scrim layer (used to display alternate keys in
the virtual keyboard) was at the wrong depth
- #951 Fixed production of sup/sub in MathML
- #1174 The
virtual-keyboard-toggle event was not dispatched
- #1087 When using the virtual keyboard, the mathfield would not scroll when
necessary
Improvements
- Added
sounds-directory as list of valid attributes (contributed by
@bengolds)
- Improvements to handling of nested mathfields ("fill-in-the-blank")
(contributed by @caleb-flores)
- Use
serve-http instead of http-serve for improved Linux compatibility
(contributed by @AceGentile)
0.69.7 (2021-09-13)
New Feature
- #1138 PR#163 "Fill in the blank"
0.69.6 (2021-08-31)
Improvements
vue-cli does not support optional chaining (see
https://github.com/vuejs/vue-loader/issues/1697) There are workarounds for
this, but debugging and fixing this is too difficult for many users.
Therefore, sadly, this release rolls back emitting code including optional
chaining, despite the fact it's supported in every targeted browser, until the
vue toolchain gets its act together. To be clear MathLive does not use or
depend on Vue, but some users are integrating MathLive in projects that do
use it, and this is sufficient to break MathLive. It appears that this issue
affects also the React toolchain.
#1125 don't enable switching to LaTeX mode for read-only mathfields
Bug Fixes
- #1124 when setting the
inlineShortcuts options to empty, don't fallback
to the default shortcuts
- #1119
\overarc and the AccentAtom family would not display their
accent
- #1115 Clicking in the mathfield when virtual keyboard is displayed closed
the keyboard
- #1117 and #1118 Replacing a subset of a mathfield with a pattern that
contains the target led to an infinite loop
0.69.5 (2021-08-05)
Improvements
When using keybindings or virtual keyboard keys, insert the content in the
current math style, rather than forcing display style.
Correctly handle loading Mathlive in a non-browser context (e.g. Node)
Updated localization strings
0.69.4 (2021-06-22)
Improvements
- Updated to ComputeEngine 0.4.2 for better parsing of LaTeX.
- When copying or cutting to the clipboard, if the MathJSON parsing fails,
ignore the MathJSON and fallback to LaTeX. Previously, if there was a failure
during parsing an empty MathJSON expression would be put on the clipboard,
which result in subsequent attempts at pasting the content into a mathfield to
fail.
- Updated various localizations (contributed by @physedo).
0.69.3 (2021-06-10)
Improvements
- Added localization for Irish (contributed by @physedo).
Bug Fixes
- #1000 When serializing subscripts and superscripts, serialize the
subscript first:
\int_0^{\infty} instead of \int^{\infty}_0.
- In some page layouts, the virtual keyboard could be displayed at an incorrect
location, or scroll with the page.
0.69.1 (2021-06-09)
Improvements
- Attempt to fix installation of the npm package on some Windows configurations
0.69.0 (2021-06-09)
Breaking Changes
This release requires TypeScript 4.3 or later (the API uses asymmetric
getters/setters). If you are using VSCode, you may need to change the version
of TypeScript used by the editor for language services (syntax checking). To
do so, with a TypeScript file open, click the Typescript version in the bottom
bar, then choose "Select TypeScript Version", then "Use Workspace Version"
(see
https://code.visualstudio.com/docs/typescript/typescript-compiling#_using-newer-typescript-versions)
All the default imports have been removed. Instead of
import MathLive from 'mathlive';
MathLive.renderMathInDocument();
use:
import { renderMathInDocument } from 'mathlive';
renderMathInDocument();
If you are not calling a specific Mathlive function and just need to use the
<math-field> tag, use:
import from 'mathlive';
- The following deprecated functions have been removed:
latexToMathML() →
convertLatexToMathMl(), latexToSpeakableText →
convertLatexToSpeakableText, latexToMarkup() →
convertLatexToMarkup(),
- The deprecated
revertToOriginalContent functionality has been removed.
- The deprecated
overrideDefaultInlineShortcuts property has been removed.
Instead, use:
mf.setConfig('inlineShortcuts', {
...mf.getConfig('inlineShortcuts'),
...newShortcuts,
});
The following MathField functions have been removed: $setConfig() →
setOptions(), getConfig() → getOptions(), $perform() →
executeCommand(), $text() → getValue(), $selectedText() →
getValue(), $selectionIsCollapsed(), $selectionDepth(),
$selectionAtStart(), $selectionAtEnd(), $latex() →
getValue()andsetValue(), $el, $insert() → insert(),
$hasFocus() → hasFocus(), $focus() → focus(), $blur()
→ blur(), $select() → select(), $clearSelection() →
executeCommand('delete-backward'), $applyStyle() → applyStyle(),
$keystroke(), $typedText()
The makeMathField() function has been removed. Use new MathfieldElement()
or the <math-field> tag instead:
let mf = MathLive.makeMathField(document.createElement('div'), {
virtualKeyboardMode: 'manual',
});
mf.$latex('f(x) = \\sin x');
document.body.appendChild(mf.$el());
let mfe = new MathfieldElement({
virtualKeyboardMode: 'manual',
});
mfe.value = 'f(x) = \\sin x';
document.body.appendChild(mfe);
or:
<math-field virtual-keyboard-mode="manual">f(x) = \sin x</math-field>
Improvements
- Added localization for Dutch (contributed by @harrisnl), Bosnian, Croatian,
Czeck, Danish, Estonian, Finnish, Icelandic, Norwegian, Portuguese, Serbian,
Slovak, Slovenian, Swedish, Turkish (contributed by @physedo).
- The selection can now be set using an offset, i.e.
mf.selection = 0 instead
of mf.selection = { ranges:[[0, 0]] }.
- Map
\cdot to "times" in spoken-text format.
- #994 When using
virtualKeyboardContainer, the virtual keyboard is now
displayed inside the container. The container should have a position of
relative.
- When replacing a placeholder with a LaTeX command in LaTeX mode (by pressing
the
\ key), remove the \placeholder{} command.
- In spoken text, correctly handle
\mathop and \operatorname.
New Features
- The
getOffsetDepth() method can be used to query the depth of a specific
offset. Use mf.getOffsetDepth(mf.position) for the depth of the current
position.
- the
onExport() hook provides an opportunity to customize the format exported
to the Clipboard.
Bug Fixes
- Actually change the keyboard toggle glyph when changed with
setOptions
- Reparse the formula when the
macros dictionary is updated
- #971 In some browsers, when mathfield elements are contained in a
container with
overflow: scroll, the dimensions of the viewport would be
incorrectly affected.
- #974 With non-US keyboard layout, always map the "/" key to a fraction.
0.68.1 (2021-06-02)
Improvements
Keybindings: keybindings can now be associated with specific keyboard layouts.
By default, the keybindings that are specific to the US keyboard layout are no
longer applied with other keyboard layouts. This makes it easier to use
punctuation with some keyboard layouts and prevent some error messages from
being thrown (addresses #962).
MathML: improved MathML output, especially for formulas with unbalanced
delimiters
Bug Fixes
- #969 and #967 Changed the way the build is done so that Mathlive does
not use MathJSON as a submodule but as a regular npm dependency, and builds
correctly even in non-git environments.
- #968 navigating with arrow keys cannot navigate past a macro
0.68.0 (2021-05-31)
Breaking Changes
#500 MathJSON support. The legacy MASTON/JSON format has been removed.
The MathJSON format is now integrated into Mathlive 🚀 🎆 🥳
To get the MathJSON representation of a formula, use mf.getValue('math-json').
The latexToAST() and astToLatex() functions have been replaced by
parseMathJson() and
serializeMathJson().
import { parseMathJson, serializeMathJson } from 'mathlive';
MathJSON has an extensive API that supports parsing and serializing of custom
LaTeX expressions. You can use it to define your own LaTeX "vocabulary" and
"grammar" and transform it into MathJSON.
You can also convert MathJSON expressions into several canonical forms, do
symbolic computation with MathJSON expressions, for example to compare them, and
more.
Learn more at cortexjs.io/math-json/.
New Features
- #952 It is now possible to define variants with keycaps in a custom
keyboard. These variants are displayed with a long press on the keycap.
- #955 When navigating with the arrow keys but there is nowhere to go, a
move-out event is dispatched (or the lower-level onMoveOutOf hook is
invoked, but using the event is recommended). This is an opportunity to handle
this situation, for example by changing the focus to another element. To get
the default behavior, which is to play a "plonk" sound, do not cancel the
event. To prevent the "plonk" sound from playing, use evt.preventDefault().
Note tha previously a focus-out event was dispatched in this case, but since
the focus is actually not changed by default, this was incorrect.
Improvements
- The
SpeechScope argument of the speak command is now optional.
- Display the keys in the keystroke caption panel (alt/option+shift+K) in
chronological order from left to right.
- Do not inject stylesheets or placeholder elements for the popover panel,
keystroke caption panel or virtual keyboard until actually needed, which may
be never and thus result in a smaller DOM.
Architecture
- The library is now null-safe, i.e. it compiles with the Typescript flag
strictNullChecks. This will ensure that the public Typescript declaration
file also compile with strictNullChecks if you make use of it in your own
project.
Bug Fixes
- #948 The Typescript declaration of
set plonkSound() failed when compiled
with strictNullChecks.
- When using a mathfield as a web component, the
speak command would be
inoperative.
- In Chrome/Blink, when a mathfield was in a
contentEditable block, inserting
a line before the component would make the component crash. Now the component
is correctly disconnected, then reconnected and preserves its state across the
disconnection.
- #960 Typing "e^pi" would result in
e\pi instead of e^\pi. Also,
serializing some partial formulas, such as "e^" would result in incorrect
LaTeX (e.g. "e").
- In MathML serialization,
2^3 was not serializing the superscript (#951 )
and subscripts were not serialized for various constructs( #534).
0.67.0 (2021-05-21)
New Features
- Added
\overarc, \underarc, \overparen and \underparen commands.
Improvements
- When replacing a selected range, snapshot in the undo state the collapsed
selection before inserting the replacement.
Bug Fixes
- Correctly calculate the padding for enclose atoms (broken in 0.66)
- Setting the
keypressSound to null would not turn off the sounds. Setting
it to the string "null" did, though.
- An
input event would incorrectly bubble out of the mathfield, even in
read-only mode.
- When calling
getOption(), or when examining a property on
MathfieldElement, return the actual value, rather than an object literal
that contains the value.
- If the mathlive module was loaded before the
<math-field> element was parsed
in the document, the attributes of the mathfield would be ignored.
0.66.1 (2021-05-21)
Bug Fixes
- Revert improvements where the
display property of the mathfield would change
depending on the default-mode property. This had unintended consequences in
some cases. To control the layout of the mathfield, use
style="display:inline-block;" instead.
- When using
applyStyle(), if a non-RGB color (e.g. "yellow") was used, it
would not be applied to the selection.
- When using
applyStyle() if the font size was changed, it was always set to
font size 1 (tiny).
- Macro packages were incorrectly parsed
0.66.0 (2021-05-20)
Breaking Changes
- The
horizontalSpacingScale option is deprecated. It will be removed in an
upcoming version and replaced by the standard TeX registers \thinmuskip,
\medmuskip and \thickmuskip.
Improvements
- When the
default-mode attribute (or the defaultMode property) of a
<math-field> element is set to "inline-math", the element will be
displayed as an inline element. Previously, the defaultMode affected the
layout of the math content, but the element still behaved as a block.
renderMathInDocument() now creates a <div> when using Display Style, and a
<span> when using Text Style (inline math).
New Features
- #946 Support addding a custom stylesheet to a
<math-field> when using
the \class command.
- The mathfield options which are reflected as attributes (e.g.
virtual-keyboard-mode) are now reflected as a property on the element
mf.virtualKeyboardMode as a shortcut to
mf.setOptions({virtualKeyboardMode:...}. This also allows to set these
properties before the component is connected to the document.
- Added the following attributes to
<math-field>: plonk-sound,
keypress-sound. Setting them to 'none' turn off these sounds.
- Added support for definition of macro packages (see
MacroPackageDefinition)
- Added support to selectively expand macro definitions. This avoid expanding
common macro definitions (for example from
amsmath.sty) when
copying/pasting, while still expanding custom macros for improved
compatibility.
Added support for MediaWiki commands:
\darr
\dArr\Darr\lang\rang\uarr\uArr\Uarr\N\R\Z\alef\alefsym\Alpha\Beta\bull\Chi\clubs\cnums\Complex\Dagger\diamonds\empty\Epsilon\Eta\exist\harr\hArr\Harr\hearts\image\infin\Iota\isin\Kappa\larr\lArr\Larr\lrarr\lrArr\Lrarr\Mu\natnums\Nu\Omicron\plusmn\rarr\rArr\Rarr\real\reals\Reals\Rho\sdot\sect\spades\sub\sube\supe\Tau\thetasym\weierp\Zeta
Added support for some additional amsmath commands:
\varGamma
\varDelta\varTheta\varLambda\varXi\varPi\varSigma\varUpsilon\varPhi\varPsi\varOmega
Added support for the \displaylimits command
See
Supported TeX/LaTeX Commands
for more details.
Bug Fixes
- When a mathfield is created, then immediately removed from the document, do
not crash. The creation of the mathfield triggered an asynchronous rendering
and by the time the rendering was executed the mathfield was no longer valid.
This situattion happened when using "tippyjs" and possibly other libraries.
- When a mathfield is read-only, do not display the focus outline.
- #943 When a tooltip for a custom virtual keyboard was provided, the label
was set to "undefined".
- The DVIPS colors were case sensitive, they should be case sensitive. (i.e.
LimeGreen is a valid color, Limegreen is not)
- #945 Preserve more aggressively verbatim LaTeX. Also, avoid serializing
superfluous spaces in Spacing atoms.
- #770 Correctly handle attaching limits to
\int command using the
keyboard.
- Return the correct
value for the mathfield element when it is not attached
yet, even if the output format is not specified.
- Color specified with the
rgb() function would not render correctly if the
arguments contained some spaces, e.g.rgb ( 255 , 255 , 255 ).
0.65.0 (2021-05-14)
Breaking Changes
- The
substituteTextArea option has been removed. This option was in fact not
working so removing it will presumably have no impact.
New Features
- #939 Added access to
\underline, \underbrace, \xleftarrow, etc... to
the virtual keyboard.
Improvements
- On iPad OS and relevant Windows devices, support the detachable keyboard.
- In LaTeX mode, don't consider
\\ (double-dash, i.e. end of line in tabular
mode) as a valid command prefix.
- In LaTeX mode, don't recommend
\{ as a command by default.
- Added
\bigstar symbol
- Improved performance of
renderMathInDocument() when there are many formulas
on the page.
Architecture
Bug Fixes
- When using Firefox on Windows, the layout of the formula could shift by a
fraction of a pixel when moving the caret.
- In LaTeX mode with nested expressions, the edited LaTeX was incorrect.

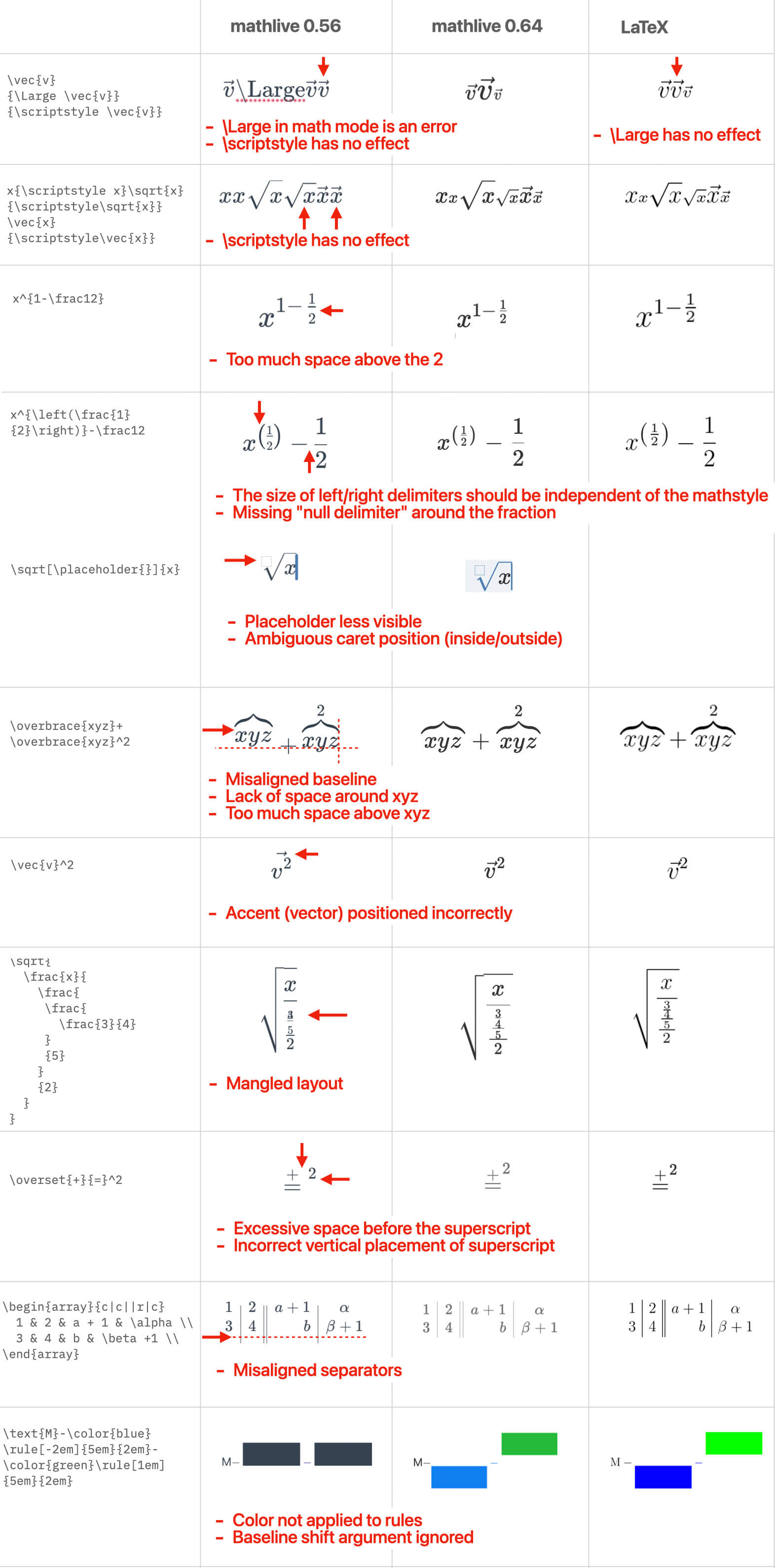

0.64.0 (2021-05-09)
Breaking Changes
- The
FontSize type is now an integer between 1 and 10. It previously was
size1, size2, etc... The default font size is 5, the smallest is 1.
However, when using applyStyle(), the size can still be specified with
size1, etc... The following size values can also be used: tiny,
scriptsize, footnotesize, small, normal or normalSize, large,
Large, LARGE, huge, Huge.
Previously, named colors (yellow, red...) mapped to the dvips color set.
They can now map to different values to improve their legibility. To ensure
that a particular color is used, specify the colors as a hex triplet
(#dd2233). See also the colorMap option.
The following color names are recommended: they will map to values that have
been optimized for legibility as a foreground or background color, they cover
all the hues of the color circle and have been adjusted to provide similar
apparent brightness and intensity:
- colors:
orange, yellow, lime, green, teal, blue, indigo,
purple, magenta
- shades of grey:
black, dark-grey, grey, light-grey, white
New Features
The background of fractions, radicals and parentheses group (\left/\right
commands) is now highlighted when they contain the caret. This makes it easier
to distinguish some cases when the cursor is at the edge of the element and
could be either inside or outside. The appearance of the highliting can be
controlled with the --contains-highlight--contains-highlight-background-color CSS variable. Set it to transparent
to restore the previous behavior.
colorMap option. To map a color name such as "yellow" to a custom RGB
color, set the colorMap or backgroundColorMap option to a function that
takes the color name as an argument and return a matching CSS RGB string.
Return undefined to proceed with the default mapping.
In macro dictionary, added option to expand or not the macro when using the
latex-expanded output format (when copying to the clipboard, for example).
Added the \overunderset{}{}{} command.
Added the \lparen and \rparen delimiters.
Added the \mod, \pmod and \bmod commands, defined as macros.
Added support for dashed column separators in matrix, using ":" in the matrix
preamble. See the
arydshln
package.
Added support for optional below argument to \stackrel and \stackbin as
per the
stackrel package
When using renderMathInDocument() or renderMathInElement(), ASCII Math
format can be used. The default delimiters for ASCII Math are
"" (backtick) and can be changed with theasciiMath.delimitersoption. To turn off this conversion and revert to the previous behavior, callrenderMathInDocument({
asciiMath: null })`
Layout Improvements
- Substantial rewrite of the stacked layout algorithm (fractions, superscripts,
etc...). The previous algorithm did not work correctly when mixing absolute
sizing commands (
\Huge) and relative ones (\scriptstyle) and had various
issues and inconsistencies with what TeX produced. The result is now close to
TeX.
Display the placeholder symbol using the caret color.
Added the --smart-fence-opacity and --smart-fence-color CSS variables.
In the layout of superscript/subscript and accents, use the correct font
metrics for spacing and layout (previously, the font metric for the base size
was always used). This may result in very slightly different placement of
superscripts, subscripts and limits (but closer to TeX).
Fixed cases where the inter-atom spacing was incorrect (when spacing atoms or
super/subscripts were used with a binary atom, or when some other atom types
were used, such as BoxAtom and more).
Clipboard Improvements
When pasting from the clipboard, recognize text bracketed with
\begin{math}...\end{math} or \begin{displaymath}...\end{displaymath}
as LaTeX (in addition to $, $$, \[...\] and \(...\) which were
recognized before). Also, recognize text that may contain a LaTeX expression
surrounded by regular text (i.e. "if $x > 0$").
When pasting ASCIIMath, recognize more expression using standard functions
such as the trig functions.
Recognize text content surrounded with "`" (backtick) delimiters as ASCII
Math.
When copying to the clipboard, roundtrip verbatim latex when available, i.e.
the content of the clipboard will be exactly what has been pasted in if the
formula has not been edited.
Other Improvements
The default color mapping function now returns different values when used as a
line color or as a background color. This improves the legibility of colors.
See
MathLive Guide: Customizing.
Paste operations are now undoable.
Architecture
Avoid generating unnecessary empty span for limits and other constructs.
Avoid repeating color attributes on child elements by lifting them to an
appropriate parent. As a consequence, when a background color is applied it is
displayed more uniformly than previously.
Reduced the size of the font-metrics table.
Increased the number of automated and static tests.
Bug Fixes
- The size and spacing of fractions in superscript did not match the TeX layout.
- Correctly apply TeX inter-atom spacing rules as per TeXBook p. 270. The
spacing of two consecutive binary atoms (e.g.
+-) was incorrect, as well as
some other combinations.
- Correctly render
\sqrt, \placeholder and many other atoms when a mathstyle
is applied with commands such as \textstyle, \scriptstyle, etc...
- Correctly render selection rectangle of accent commands (
\widehat).
- If a document called
renderMathInDocument() and the document contained a
mathfield with a value that contained exclusively an environment, the
mathfield would not render (the \begin{} would be incorrectly rendered by
renderMathInDocument()).
- When using
renderMathInElement() or renderMathInDocument() use the same
default letterShapeStyle as when using a mathfield, that is, french if the
locale is French, tex otherwise.
- Fixed verbatim latex: when the value of the mathfield is set, if it is not
modified,
getValue('latex') will return exactly what was input.
- Fixed latex output of
\exponentialE: when a superscript/subscript was
applied to a macro, the latex output would become blank.
- Math characters with a bold italic style were displayed in regular italic.
- An input consisting of only
\scriptstyle would crash.
- Allow navigation inside an empty
skipBoundary atom.
- After a copy (command/control+C) command, the content of clipboard was
incorrect if the end of the selection included some content in text mode.
- When rendering a placeholder in static mode, use a non-breaking space instead
of nothing, which helps preserve a more accurate layout in some cases (for
example in
\sqrt[\placeholder{}}{x}
- Rules (e.g. from
\rule{}{}) were not clickable and did not appear selected.
- Correctly roundtrip
\char command when using latex-expanded format.
0.63.1 (2021-04-24)
Bug Fixes
- On the UK QWERTY keyboard, pressing the
\ key did not switch to LaTeX mode.
This key, although it looks like an ordinary key, is unique to the UK QWERTY
keyboard and distinct from the \ on any other keyboard. Its official name is
IntlBackslash, while the other, visually identical \ key, is the
Backslash key.
0.63.0 (2021-04-24)
New Features
- #788 Added
virtualKeyboardState property to indicate if the virtual
keyboard is currently visible or hidden. The property can also be modified to
show or hide the virtual keyboard.
- In read-only mode, do not attempt to load the sounds and do not allow the
virtual keyboard to be shown.
- Export
version (previously available as MathLive.version).
- #199 Added
infty and int inline shortcuts.
Bug Fixes
- #708 Pressing on the bottom part of the virtual keyboard keycap did not
trigger the key action.
- The asset directory (fonts/sounds) was not properly located in some browsers
when using a CDN to load Mathlive.
- Correctly focus the mathfield when the virtual keyboard is invoked.
0.62.0 (2021-04-23)
Improvements
- #794 When a keycap on the virtual keyboard with associated alternate keys
is long pressed, the other UI elements on the screen are ignored (a scrim
element is inserted behind the panel to capture events).
- On iPad OS prevent the document selection from being altered after
long-pressing an alternate key in some cases.
Bug Fixes
- A $$\chi_{13}$$ (0.1em) gap between the nucleus and the above element was
missing in
OverUnder atoms (\overset, etc...).
- On Safari iOS, correctly display the keyboard toggle glyph.
- #907 When using
renderMathInElement() or renderMathInDocument(),
formulas containing styling information would get too aggressively coalesced,
dropping some styling.
- #910 Fixed an issue introduced in 0.61.0 where some content would not get
rendered when calling
renderMathInElement() or renderMathInDocument().
0.61.0 (2021-04-22)
Breaking Changes
Some format options have been renamed:
| Before | Now |
| :------------------------------- | :-------------------------------- |
| "spoken-ssml-withHighlighting" | "spoken-ssml-with-highlighting" |
| "mathML" | "math-ml" |
| "ASCIIMath" | "ascii-math" |
The old spelling is still accepted at runtime but it has been deprecated and
you will be removed in a future update.
Improvements
- In many cases, the layout of the formula is closer to the TeX layout.
- Improved performance of hit testing, selection tracking and selection
rendering for complex formulas.
- Improved accuracy of hit-testing. Prevent children of elements with a
captureSelection flag from being selectable.
- More efficient rendering by generating simpler markup in some cases.
- Dropped
woff fonts. This change should be transparent, as all supported
browsers support woff2 at this point.
- Apply sizing commands (e.g.
\Huge) to math mode. TeX is inconsistent in how
it handles those. We choose to always apply them in math mode.
- Added support for
dcases environment: like cases but in displaystyle by
default.
- Correctly round trip
\mbox by avoiding wrapping it with an unnecessary
\text command.
New Features
- #898. Setting the
plonkSound or keypressSound option to null will
suppress sound feedback.
- PR#905. Added option to specify the container of the virtual keyboard.
Contributed by Dominik Janković (https://github.com/djankovic). Thanks,
Dominik!
- Simplified the specification of virtual keyboards: the
keycap class no
longer needs to be specified for each keycap.
- The
defaultMode property or the default-mode attribute can be set to a
value of inline-math to set the mathfield in inline math \textstyle by
default.
Bug Fixes
- Fixed LaTeX output of
\htmlData, \cssId and \class commands.
- Ignore commands that are only applicable in some modes when they are used in
an incorrect mode.
- Fixed styling of some characters, such as the ones from
\cdot. The incorrect
styling resulted in incorrect measurement and vertical layout of some
characters.
- Fixed rendering of
\ne, \neq and \not.
- When using
renderMathInElement() or renderMathInDocument() do not
duplicate the accessible node.
- Correctly display
e^x and d/dx in the functions virtual keyboard
- Ensure the correct spacing around fractions.
- In Safari, the fonts would not load. This was a regression due to a change in
the behavior of the API to test if a font is loaded. Safari lies and always
answer yes (to prevent fingerprinting).
- Correctly parse the
\displaystyle, \textstyle, \scriptstyle and
\scriptscriptstyle commands: they apply to the commands to their right.
- In a tabular environment (matrix, etc...)
\displaystyle applies to the
current cell only (not the whole array).
- Moving forward in a group with the
skipBoundary flag would not skip it.
- In a sequence of atoms with
skipBoundary, only the first one would be
skipped.
- In the virtual keyboard, some keycaps in the greek keyboard were displayed
with the system font instead of the TeX font.
- The selection rectangle for
\int now accounts for the slant of the symbol.
- When using
convertLatexToMarkup() or renderMathInDocument() properly wrap
the generated atoms in a root atom. Without it, some atoms render differently
in static mode than in interactive mode.
- #654 Added ASCII Math output for tabular environments (array, matrix,
etc...)
- If the basefont of the mathfield was large (>48px) the virtual keyboard toggle
button would not be vertically centered in the field.
- Correctly layout superscripts after
\overset (they are adjacent, not over,
unlike \overbrace).
- The
cases environment should be in inline mode (textstyle) by default.
- Fixed keyboard navigation of
\overbrace, \underbrace, etc...
0.60.1 (2021-04-13)
New Features
- #793. Added '%' inline shortcut
Bug Fixes
- #896. Touch events were not properly detected on FireFox.
- When using the
vite bundler, the library location could not be determined
correctly. As a result, the assets (fonts and sounds) could not be loaded when
in their default location.
- #864 Fixed layout of
\enclose{roundedbox} and other variants.
- #822 When using the Vue.js wrapper, the caret would jump to end of input
field when typing a character in the middle of the formula
- When changing options with
setOptions() avoid changing the selection unless
necessary (react-mathlive issue #4).
0.60.0 (2021-04-12)
Breaking Change
Renamed getCaretPosition() and setCaretPosition() to get/set caretPoint.
"Position" refers to where the caret/insertion point is, as an offset inside
the expression. These methods return client screen coordinates and the new
name better reflect the correct terminology.
Removed deprecated (April 2019) method enterCommandMode()
Replaced ignoreSpacebarInMathMode option with mathModeSpace. The
ignoreSpacebarInMathMode was accidentally not working (#859). However,
the boolean form is problematic as an element attribute (it defaults to true,
but element attributes default to false). It has been replaced with
mathModeSpace which is more flexible (you can specify which space to use)
and doesn't have the issue of the default boolean value.
New Features
Support for iframes. Multiple mathfields in a single document but in
different iframes can now share a single virtual keyboard. In the main
document, use:
makeSharedVirtualKeyboard({
virtualKeyboardLayout: 'dvorak',
});
And in the iframes, use the use-shared-virtual-keyboard attribute:
<math-field use-shared-virtual-keyboard></math-field>
See examples/iframe for more info.
Contribution by https://github.com/alexprey. Thanks!
#555 Support for IME (Input Method Engines) for Japanese, Chinese, Korean
and other complex scripts.
applyStyle() has now more options. Previously it always toggled the style of
the selection. Now it can either toggle or set the style, and modify the
selection or a specific range.#387 find() method to search the fragments of an expression that match a
LaTeX string or regular expression.
For example the following code snippet will add a yellow background to the
fractions in the expression:
mf.find(/^\\frac{[^}]*}{[^}]*}\$/).forEach((x) => {
mf.applyStyle({ backgroundColor: 'yellow' }, x, {
suppressChangeNotifications: true,
});
});
#387 replace() method to replace fragments of an expression.
This method is similar to the replace() method of the String class. The
search pattern can be specified using a string or regular expression, and the
replacement pattern can be a string or a function. If using a regular
expression, it can contain capture groups, and those can be references in the
replacement pattern.
The following snippet will invert fractions in a formula:
mf.replace(/^\\frac{([^}]*)}{([^}]*)}$/, '\\frac{$2}{$1}');
New LaTeX Mode
This mode replaces the previous Command Mode. While the Command Mode
(triggered by pressing the \ or ESC key) was only intended to insert
a single LaTeX command (e.g. "\aleph"), the LaTeX Mode is a more
comprehensive LaTeX editing mode.
To enter the LaTeX Mode, press the ESC key or the \ key. While in
this mode, a complex LaTeX expression can be edited. Press the ESC or
Return key to return to regular editing mode.
To quickly peek at the LaTeX code of an expression, select it, then press
ESC. Press ESC again to return to the regular editing mode.
To insert a command, press the \ key, followed by the command name. Press
the TAB key to accept a suggestion, then the RETURN key to return to
regular editing mode (previously pressing the TAB key would have exited
the command mode).
Added soundsDirectory option to customize the location of the sound files,
similarly to fontsDirectory.
Enabled audio feedback by default.
#707 added support for \begin{rcases}\end{rcases} (reverse cases, with
brace trailing instead of leading)
#730 added new CSS variables to control the height of the virtual
keyboard:
--keycap-height--keycap-font-size--keycap-small-font-size (only if needed)--keycap-extra-small-font-size (only if needed)--keycap-tt-font-size (only if needed)
- #732 Support for Dvorak keyboard layout
Synchronize the virtual keyboard layout (QWERTY, AZERTY, etc...) with the
physical keyboard layout.
Added \htmlData command, which takes as argument a comma-delimited string of
key/value pairs, e.g. \htmlData{foo=green,bar=blue}. A corresponding
data-foo and data-bar DOM attribute is generated to the rendered DOM.
Bug Fixes
- #805: exponent towers did not display correctly
- #857: when a mathfield was in
read-only mode, it was still possible to
delete a portion of it by pressing the backspace key.
- #818: on iPad OS 14 and later, Safari pretends to be macOS ("Desktop
Mode"). This interfered with the handling of the MathLive virtual keyboard.
- The selection in an expression could render incorrectly if it was displayed
before the fonts were fully loaded. This situation is now handled correctly
and the selection is redrawn when fonts finish loading.
- The
typedText selector dropped its options argument. As a result, the sound
feedback from the virtual keyboard only played for some keys.
- #697 When using the
<math-field> element the command popover did not
display correctly.
- Fixed issues with copy/paste. Copying from a text zone will copy the text (and
not a latex representation of it). Copy from a LaTeX zone now works.
- #816 Fixed some issues with keybindings on some keyboards, such as Swiss
German. The physical keyboard layout was not always recognized, and some
keybindings conflicted with each other.
Improvements
- Improved handling of paste commands: if a JSON item is on the clipboard it is
used in priority, before a
plain/text item.
- It is now possible to type dead keys such as
alt+e, and they are properly
displayed as a composition (side effect of the fix for #555).
- #807 Support for AZERTY keyboard layout on Linux.
Architecture
Complete rewrite of selection handling.
This is mostly an internal change, but it will offer some benefits for new
capabilities in the public API as well.
Warning: This is a very disruptive change, and there might be some edge
cases that will need to be cleaned up.
The position of the insertion point is no longer represented by a path. It
is now an offset from the start of the expression, with each possible
insertion point position being assigned a sequential value.
The selection is no longer represented with a path and a sibling-relative
offset. It is now a range, i.e. a start and end offset. More precisely,
the selection is an array of ranges (to represent discontinuous selections,
for example a column in a matrix) and a direction.
These changes have these benefits:
- The selection related code is more expressive and much simpler to read and
debug
- The code is also simpler to change so that changes in UI behavior are much
easier to implement. There are several open issues that will be much easier
to fix now. In particular, the
onDelete function now regroups all the
special handling when pressing the Backspace and Delete keys.
- Instead of the esoteric paths, the concept of position as an offset is much
easier to explain and understand, and can now be exposed in the public API.
Consequently, new functionality can be exposed, such as the
find() method
which returns its results as an array of ranges. It is also possible now to
query and change the current selection, and to apply styling to a portion of
the expression other than the selection.
- The selection is represented as an array of ranges to support
discontinuous selections, which are useful to select for example all the
cells in the column of a matrix column. This kind of selection was not
previously possible.
- Incidentally this fixes a circular dependency, which was a smell test that
there was a problem with the previous architecture.
On a historical note, the reason for the original implementation with paths
was based on the TeX implementation: when rendering a tree of atoms (which TeX
calls nodes), the TeX layout algorithm never needs to find the parent of an
atom. The MathLive rendering engine was implemented in the same way. However,
for interactive editing, being able to locate the parent of an atom is
frequently necessary. The paths were a mechanism to maintain a separate data
structure from the one needed by the rendering engine. However, they were a
complex and clumsy mechanism. Now, a parent property has been introduced in
instance of Atom, even though it is not necessary for the rendering phase.
It does make the handling of the interactive manipulation of the formula much
easier, though.
Changes to the handling of sentinel atoms (type "first")
This is an internal change that does not affect the public API.
Sentinel atoms are atoms of type "first" that are inserted as the first
element in atom branches. Their purpose is to simplify the handling of "empty"
lists, for example an empty numerator or superscript.
Previously, these atoms where added when an editable atom tree was created,
i.e. in the editor code branch, since they are not needed for pure
rendering. However, this created situations where the tree had to be
'corrected' by inserting missing "first". This code was complex and resulted
in some unexpected operations having the side effect of modifying the tree.
The "first" atoms are now created during parsing and are present in editable
and non-editable atom trees.
Refactoring of Atom classes
This is an internal change that does not affect the public API.
Each 'kind' of atom (fraction, extensible symbol, boxed expression, etc...) is
now represented by a separate class extending the Atom base class (for
example GenfracAtom). Each of those classes have a render() method that
generates a set of DOM virtual nodes representing the Atom and a serialize()
method which generates a LaTeX string representing the atom.
Previously the handling of the different kind of atoms was done procedurally
and all over the code base. The core code is now much smaller and easier to
read, while the specialized code specific to each kind of atom is grouped in
their respective classes.
Unit testing using Jest snapshot
Rewrote the unit tests to use Jest snapshots for more comprehensive
validation.
0.59.0 (2020-11-04)
Bug Fixes
- #685 Virtual keyboard event listeners were not properly released when the
mathfield was removed from the DOM
0.58.0 (2020-10-11)
New Features
- #225 Added
onCommit listener to mf.options. This listener is invoked
when the user presses Enter or Return key, or when the field loses
focus and its value has changed since it acquired it. In addition, a change
event is triggered when using a MathfieldElement. The event previously named
change has been renamed to input. This mimics the behavior of <input>
and <textarea> elements.
#225 Changed the keyboard shortcuts to add columns and rows:
| Shortcut | Command |
| :-------------------------------------------------- | :---------------- |
| ctrl/cmd + Return/Enter | addRowAfter |
| ctrl/cmd + shift + Return/Enter | addRowBefore |
| ctrl/cmd + ;** | addRowAfter |
| **ctrl/cmd + shift + ;** | addRowBefore |
| **ctrl/cmd + ,** | addColumnAfter |
| **ctrl/cmd + shift + , | addColumnBefore |
Note that Enter/Return no longer create a matrix/vector when inside a
parenthesized expression. Use ctrl/cmd + Return/Enter instead.
Added a commit command to programmatically trigger the onCommit listener
change event.
- Added
mount and unmount events to MathfieldElement
- The
$text() method, which is deprecated, was accidentally prematurely
removed. It has been added back.
Bug Fixes
- Inline shortcuts would not always be triggered correctly, for example
x=sin
→ x\sin instead of x=\sin
- The text in tooltip was not vertically centered in narrow layouts (mobile
devices)
- #668 Extensible symbols, such as
\xrightarrow were incorrectly treated
as if they had an invisible boundary, resulting in the cursor being positioned
incorrectly when navigating with the keyboard.
0.57.0 (2020-10-09)
Major New Feature
This release introduce two major new features which will require code changes.
For now, the older API remains supported but it will be dropped in an upcoming
release.
#665: Web Component
Support for MathfieldElement custom element/web component and <math-field>
tag.
The makeMathField() function is still supported, but it will be removed in an
upcoming version. You should transition to using <math-field> or
MathfieldElement instead.
This transition require the following changes:
- Create mathfields using
MathfieldElement or declaratively
let mf = MathLive.makeMathField(document.createElement('div'), {
virtualKeyboardMode: 'manual',
});
mf.$latex('f(x) = \\sin x');
document.body.appendChild(mf.$el());
let mfe = new MathfieldElement({
virtualKeyboardMode: 'manual',
});
mfe.value = 'f(x) = \\sin x';
document.body.appendChild(mfe);
or:
<math-field virtual-keyboard-mode="manual">f(x) = \sin x</math-field>
- Use events instead of callbacks
mf.setConfig({ onContentDidChange: (mf) => {
console.log(mf.$latex())
});
mfe.addEventListener('input', (ev) => {
console.log(mfe.value);
});
#667 Modernized Public API
Support for web component is an opportunity to revisit the MathLive public API
and modernize it.
The goals are:
- clarity. For example, the
$latex() can be used to read or change the content
of the mathfield.
- expressiveness. For example,
$selectedText() can return the value of the
selection, but there is no way to inspect (or save/restore) the selection.
- consistency with web platform APIs when applicable, otherwise following the
monaco
(VSCode editor) or
CodeMirror conventions
primarily. As part of this proposal, the APIs of TinyMCE, CKEditor and
QuillJS were also considered. For example, the method equivalent to
getConfig() is called getOptions() in most Javascript text editor
libraries.
Mathfield methods
The following Mathfield methods have been renamed as indicated:
| Before |
After |
$setConfig() |
setOptions() |
getConfig() |
getOptions() and getOption() |
$text() |
getValue() |
$latex() |
value, getValue() and setValue() |
$insert() |
insert() |
$hasFocus() |
hasFocus() |
$focus() |
focus() |
$blur() |
blur() |
$selectedText() |
mf.getValue(mf.selection) |
$selectionIsCollapsed() |
mf.selection[0].collapsed |
$selectionDepth() |
mf.selection[0].depth |
$selectionAtStart() |
mf.position === 0 |
$selectionAtEnd() |
mf.position === mf.lastPosition |
$select() |
select() |
$clearSelection() |
executeCommand('delete-backward') |
$keystroke() |
executeCommand() |
$typedText() |
executeCommand('typed-text') |
$perform() |
executeCommand() |
$revertToOriginalContent() |
n/a |
$el() |
n/a |
| n/a |
selection |
| n/a |
position |
The methods indicated with "n/a" in the After column have been dropped.
Only the new methods are available on MathfieldElement (i.e. when using web
components). The Mathfield class retains both the old methods and the new ones
to facilitate the transition, but the old ones will be dropped in an upcoming
version.
There is also a new selection property on Mathfield and MathfieldElement
which can be used to inspect and change the selection and a position property
to inspect and change the insertion point (caret).
The getValue() method also now take an (optional) Range, which is the type
of the selection property, to extract a fragment of the expression.
Default Exports
While default exports have the benefits of expediency, particularly when
converting an existing code base to ES Modules, they are problematic for
effective tree shaking. Therefore the default export will be eliminated.
This means that instead of:
import Mathlive from 'mathlive';
Mathlive.renderMathInDocument();
you will need to use:
import { renderMathInDocument } from 'mathlive';
renderMathInDocument();
The following functions have been renamed:
| Before |
After |
MathLive.latexToAST() |
Use MathJSON |
MathLive.latexToMarkup() |
convertLatexToMarkup() |
MathLive.latexToMathML() |
convertLatexToMathMl() |
MathLive.latexToSpeakableText() |
convertLatexToSpeakableText() |
New Features
- #101: added
getCaretPosition() and setCaretPosition()
Improvements
- The Typescript types for
Selector has been improved
- The Typescript type for
getOptions() (getConfig()) are more accurate
- The "sqrt" inline shortcut now inserts an argument
- Don't throw an error if the first argument of
\enclose is empty
- #591: add
upward and downward hooks when navigating out of the
mathfield (now also sent as a focus-out event)
- Improved layout of the virtual keyboard on narrow mobile devices (fill the
available width).
Bug Fixes
- #198: typing backspace while typing inline shortcuts would prevent the
shortcuts from being recognized
- #573: brackets were not properly styled (i.e. color applied to them)
- #543: spurious focus/blur events were dispatched if
tabIndex was set to
0 on the mathfield and some area of the mathfield were clicked on. The issue
was that with tabIndex="0" the mathfield frame would be focusable and when
that happened the focus would correctly switch to the invisible <textarea>
element which is normally focused to receive keyboard events, but this
generated an incorrect blur event (for the container losing focus) and an
incorrect focus event (for the <textarea> gaining focus)
- #599: some characters, for example "ü", would not be correctly parsed or
displayed. Note that technically, those characters are ignored by TeX, but
it's a reasonable behavior nowadays to accept them as input.
- #628: typing "e" repeatedly inside a matrix would corrupt the emitted
- #637: in Chrome, thin lines, such as fraction bars or square root lines
would not display at some zoom levels
- The locale was not properly taking into account when it was set manually
- The
config.strings property did not reflect the state of the localization
strings
- When configs was updated (e.g. new macros added), the content of the mathfield
was not properly re-parsed and rendered
- When making the virtual keyboard visible, the mathfield would not be focused
- The virtual keyboard would not display correctly when the mathfield was inside
a shadow DOM
Special Thanks
- Thanks to
@stefnotch for contributing several of the improvements in this
release
0.56.0 (2020-08-22)
New Features
- Added support for
\phantom, \vphantom, \hphantom and \smash[]
- #182 Added support for the mhchem package, with the commands
\ce and
\pu, to display chemical equations
0.55.0 (2020-08-17)
New Features
WebPack issues workaround and font loading configuration
Follow up to #508. The fonts can now be loaded either statically or
dynamically.
dynamic loading by default, the fonts will get loaded programmatically
when they are needed and the rendering will be deferred until the fonts are
available to avoid unnecessary redrawing. Use this technique if you have a
simple build/bundle workflow. You can still customize the relative path to
the fonts folder using the fontsDirectory configuration option.
static loading include the mathlive-fonts.css stylesheet in your page.
The loading of this file will trigget the font to be loaded asynchronously
by the browser. Use this technique if you are using WebPack or have a
build/bundle workflow that renames the font files or in general require the
bundler to know about the required assets.
New packaging options. The distribution files have been split between
minified and non-minified version. In the more common cases, the minified
version (mathlive.min.js and mathlive.min.mjs should be used). The
non-minified version (mathlive.js and mathlive.mjs can be used to help in
debugging issues or to apply patches).
Bug Fixes
The fonts failed to load when loading MathLive using a <script> tag and a
CDN. The fonts folder is now resolved correctly with the following
configurations:
- `<script>` tag and CDN
- `<script>` tag and local file
- `import` and CDN
- `import` and local file
0.54.0 (2020-06-24)
Bug Fixes
#490 Firefox does not load fonts There is a bug in Firefox
(https://bugzilla.mozilla.org/show_bug.cgi?id=1252821) where the status of
fonts is reported incorrectly.
Implemented a workaround by always loading fonts in Firefox.
#506 Chrome was outputing a harmless warning about passive event
listeners. The warning has been silenced.
#505 Chrome was outputing a harmless warning about passive event
listeners. The warning has been silenced with extreme prejudice.
#503 Dynamic styles were not applied inside of shadow DOM
0.53.3 (2020-06-24)
Bug Fixes
#504 "Spacing is inconsistent after editing"
The spacing of operators should be adjusted depending on what's around them:
there is less space after a "-" sign when used as an infix operator than there
is around a "-" sign used as a prefix operator (i.e. "-4" vs "3-4").
The code that was handling this was accounting for it by modifying the type of
the element. This worked well enough for static rendering, but for dynamic
rendering (i.e. editing), once modified the previous type of the element was
lost and could not be restored (i.e. after deleting the atom in front of a "-"
sign, the "-" was no longer a binary operator but a regular symbol).
This is now handled during layout without modifying the type of the element.
Workaround for a Safari bug where in some cases the caret would not blink.
#505 More consistent spacing between elements. Previously some Unicode
math spacing characters were used. However, these characters are not rendered
consistently. Switched to using CSS margins instead.
The LaTeX generated for a \left command with another command as a fence was
lacking a space, e.g. \left\lbracka\right\rbrack instead of
\left\lbrack a\right\rbrack
Smart fence for square brackets was not working correctly.
Fixed smartmode to avoid converting a decimal point to text when entering,
e.g. "314.1576"
The alt/option+V shortcut now correctly inserts a placeholder in the square
root
The "\arcos" function was incorrectly spelled "\arccos".
New Feature
#508 In order to better support some deployment configurations, added a
'mathlive-fonts.css' file to the distribution package.
This is intended to be used by build/bundle environments that have an asset
pipeline that can move/rename assets, including the font-files
Note that this method is not recommended. It will result in some cases
where the layout is incorrect until the page is reloaded (especially for
formulas using large symbols such as integrals or large parentheses).
To use it, add the following to the web pages using MathLive:
<link rel="stylesheet" href="dist/mathlive-fonts.css" />
0.53.2 (2020-06-10)
Bug Fixes
- Adjusted height of square root (there was some extra blank space above)
- Ensure that the 'dt' inline shortcut does not trigger when writing "width" (it
should only apply in the math mode)
- #492 Typing "/" to insert as fraction when some items were selected would
result in an erroneous output.
0.53.1 (2020-06-01)
Bug Fixes
- In the virtual keyboard, use
\scriptstyle to display small symbols
- Better vertical alignment of extensible arrows
- Don't display a double caret after a
\leftright
0.53.0 (2020-05-31)
Breaking Change / New Feature
#158 The CSS files mathlive.css and mathlive.core.css have been
deprecated and removed from the distribution.
The necessary CSS is now injected dynamically into the page. This simplifies
the use of the library, but also reduces the amount of CSS in the page,
potentially improving performance. That's particularly the case when the
virtual keyboard is not used, as the CSS stylesheet for the virtual keyboard
is substantial, and it is now injected only when the keyboard is used.
To transition, you should remove from your code any instance of:
<link rel="stylesheet" href="mathlive.core.css" type="text/css" />
<link rel="stylesheet" href="mathlive.css" type="text/css" />
(the path to your CSS file may be different).
You may need to specify the location of the 'fonts' directory. By default, the
'fonts' directory is expected to be next to the 'mathlive.js', 'mathlive.mjs'
file. If you need to copy the 'fonts' directory to a different location,
specify it using the Config.fontsDirectory option. It should be either a
relative path or a full URL pointing to the directory that contains the fonts.
(Fix for #425)
You no longer need to manually specify the stylesheets when using
renderMathInElement() or renderMathInDocument() either. The necessary
stylesheet will get injected in the document as needed. Note that this
stylesheet for these functions is smaller than the stylesheet used when the
editor is in use. These two functions also gain a property to specify the
location of the 'fonts' directory, if necessary (by default, the 'fonts'
directory is expected to be next to the 'mathlive.js', 'mathlive.mjs' file.)
In some rare cases, you may have used the CSS stylesheet without the Mathlive
library, for example, after you may have saved the output of latexToMarkup()
to a database and use it to render later in a page. In that case, you would
need to use the CSS stylesheet dist/mathlive-static.css, which is suitable
for this use case. Note that it does reference a 'fonts' folder that may need
to be adjusted. By default, the fonts folder should be placed next to the
stylesheet. If you need a different location when using the static stylesheet,
you will need to modify it.
#425 Added CSS variable --ML_keyboard-zindex to control the zindex of
the virtual keyboard.
Add support for ^^ and ^^^^ constructs in LaTeX. See TexBook p. 56:
There’s also a special convention in which ^^ is followed by two
“lowercase hexadecimal digits,” 0–9 or a–f. With this convention, all 256 characters are
obtainable in a uniform way, from ^^00 to ^^ff. Character 127 is ^^7f.
XeTeX extends this convention with ^^^^ for four-digit Unicode characters.
Added support for more TeX primitives, including \string, \csname,
\endcsname, \obeyspaces
Improved the handling of parameters (e.g. #1) to more accurately match the
TeX behavior (previously parameters could only substitute for an entire
argument, i.e. {#1}). They are now handled by replacing their value with
their corresponding tokens.
Added support for \laplace and \Laplace symbols
Bug Fixes
#469 The keyboard layout on Linux was not detected correctly, resulting in
some keys (such as arrows and backspace) not working correctly.
Integers in a LaTeX stream would not always be parsed correctly. As per the
TeXBook, an integer can be preceded by an arbitrary number of "+", "-" or
whitespace characters, so \char -+ +- "4A is valid and equivalent to
\char"4A
Integers in a latex stream specified with a backtick ("alphabetic constant")
would not be parsed correctly. Now \char`A gives the expected result
(A).
Consecutive whitespace where not always coalesced.
The bounding box of the initial selection (before the 'first' atom was
inserted) was incorrect.
The sizing commands (\huge, \small, \tiny, etc...) should not apply in
'math' mode.
0.52 (2020-05-23)
New Feature
Support for
Trusted Types.
A new option in Config, createHTML, is called before injecting HTML into
the page, providing an opportunity to sanitize the markup according to a
policy set by the host
Improvements
Move some of the Mathematica inspired command (e.g. \differentialD,
doubleStruckCapitalN, etc...) to be macros instead of built-in commands.
This will allow them to be properly expanded during copy/paste operations for
improved interoperability
When an invalid keybinding is encountered, the onError listener is now
invoked with an error code of invalid-keybinding
Added support for German keyboard layout.
Bug Fixes
The Undo and Redo button in the virtual keyboard did not change their state
appropriately given the state of the undo stack.
'overunder': The superscript and subscript after an 'overunder' atom (e.g.
\overbrace) did not display correctly (above or below the brace). The
'overunder' atom would also not display correctly if the width of the atom was
below a minimal threshold.
0.51.0 (2020-05-19)
New Features
#450 Custom keybindings. A keybinding (also called keyboard shortcut)
associate a keystroke combination on a physical keyboard with a command.
Mathlive previously had some built-in keybindings, but now they can be
extended or replaced.
See config.keybindings and Keybinding
Added setKeyboardLayout() and setKeyboardLayoutLocale() functions to
customize the current physical keyboard layout
Improvements
#461 The array editing commands only worked in math mode. They now apply
in text mode as well
#459: Add a placeholder for incomplete commands, for example entering
\frac in command mode
Added some missing commands: deleteNextChardeleteForward,
deletePreviousChardeleteBackward, deleteNextWord,
deletePreviousWord, deleteToGroupStart, deleteToGroupEnd,
deleteToMathFieldEnd, moveToSubscript, applyStyle,
toggleVirtualKeyboard, hideVirtualKeyboard, showVirtualKeyboard
In some cases, the top of the placeholder character could be cut off
Bug Fixes
The Read Aloud feature would not work when a Neural Engine AWS voice was used
(such as Joana or Matthew)
In the Vue wrapper, the onKeystroke handler would error
Styling (applying color, style) was disabled. This also affected mode change
(i.e. alt+= to switch between text and math mode)
After completing a command in command mode (i.e. pressing the return key), the
mode did not switch not math mode and remained in command mode.
0.50.8 (2020-05-13)
Improvements
- The Symbols keyboard is now a top-level keyboard. Previously it was accessible
only from the Roman keyboard
- Added some standard LaTeX commands:
\inf, \Pr, \liminf, \limsup
- Added inline shortcuts for some commands:
sinh, cosh, sec, csc, cot,
arcsin, arccos, arctan
- When generating LaTeX output, only insert spaces when necessary (i.e. after
commands that are followed by a letter). Conversely, always generate the
space when necessary (
\rbrack a would generate \rbracka)
- Minor rendering performance improvement
Bug Fixes
The absolute value character "|" (and other small delimiters) would be
displayed in the wrong font (and too small)
The absolute value key from the virtual keyboard would insert '|#@|'
The 'sqrt' key from the virtual keyboard or keyboard shortcut (option+V) would
do nothing. The problem affected any inline shortcut or key that included a
'#0' argument when there was no selection
Fixed an issue with long inline shortcuts that could trigger text mode (e.g.
'arcsin') and never apply the inline shortcut
Do not trigger smart mode conversion with arrow keys
Fixed an issue on iOS 12 and Firefox/Android where the mathfield could not be
focused (fix contributed by (https://github.com/beneater)
0.50.7 (2020-05-11)
- Fix #448: Fix an issue where the "^" keyboard shortcut would not work
0.50.6 (2020-05-11)
- Fix date stamping of declaration files
0.50.5 (2020-05-10)
- Fix #311 Before making a build, check the correct version of node and npm
are installed
- Make the build system work better on Windows
- Do not update /dist on each push
- When using a UMD module, do not export 'default'
0.50.4 (2020-05-09)
Bug Fixes
- Fix #444 The "x^2" key in the virtual keyboard did not work as expected.
Improvements
- Updated the build system to automatically add the lastest entry from the
CHANGELOG to the GitHub release note.
0.50.3 (2020-05-08)
New Features
- Added a
MathLive.version string
0.50.2 (2020-05-07)
Bug Fixes
- Fixed an issue with rendering of MathML
Improvements
- Added additional contextual information to the parser error message. Detect
more errors.
Breaking Change
- Renamed
config.error to config.onError for consistency with the other
listeners.
New Feature
0.50.1 (2020-05-06)
New Feature
A new option, config.error can be used to catch errors while parsing LaTeX.
This is invoked both for the initial content of the mathfield, when the
content of the mathfield is changed programmatically, and when the user pastes
latex content in the field.
An error code will indicate the problem encountered, but the parsing will
attempt to recover, in keeping with the previous behavior.
Bug Fixes
- Fixed an issue where the alphabetic 'sans' keys on the virtual keyboard output
blackboard.
- Fixed an issue where the
\mleft. and \mright. commands would not be
rendered correctly (or propertly converted to MathASCII).
(https://github.com/benetech/MathShare/issues/1182)
0.50 (May 4, 2020)
Highlights
- Maintenance: Migration to TypeScript
- Maintenance: New math variant (bold, italic, etc...) subsystem matches
LaTeX more closely
- Maintenance: Reduced code size
- New feature: Verbatim LaTeX
- New feature:
MathField.getConfig()
New Features
"Verbatim LaTeX": the LaTeX provided as input (for example with
insert()) is preserved as long as it's not edited. Previously, the LaTeX
would be normalized on input, and the output would not match character for
character, even though it produced equivalent LaTeX code. For example, extra
spaces could be inserted, and the order of subscript and superscript was not
preserved.
Now, the input LaTeX is preserved until editing operations cause it to be
modified. This also means that the arguments of macros are never modified
(since the macros are not editable) and will be returned exactly as input
(they were normalized before).
New letterShapeStyle configuration setting to control which letters are
automatically italicized, according to four popular styles:
| letterShapeStyle | xyz | ABC | αβɣ | ΓΔΘ |
| -----------------: | --- | --- | --- | --- |
| iso | it | it | it | it |
| tex | it | it | it | up |
| french | it | up | up | up |
| upright | up | up | up | up |
(it) = italic\
(up) = upright
The default letter shape style is auto: if the system locale is "french",
the french style will be used, tex otherwise. The previous behavior was to
always use tex style lettershape.
New MathField.getConfig() method which gives access to the current
configuration settings.
It can be invoked in three different ways:
mf.getConfig(): return a MathfieldConfig object will the values for all
the configuration options filled-in.mf.getConfig('letterShapeStyle'): return the current value of the
letterShapeStyle optionmf.getConfig(['smartMode', 'smartFence']): return an object with the
values of the smartMode and smartFence filled in.
Note that getConfig() may return a different value immediately after
setConfig() was invoked: getConfig() returns a "resolved" value, so for
example:
mf.setConfig({ letterShapeStyle: 'auto' });
console.log(mf.getConfig('letterShapeStyle'));
An example (examples/test-cases) with some test cases was added, including
LaTeX output screenshots for comparison.
Re-done the font selection sub-system. Internally, it's now cleaner and easier
to follow, and also closer to the LaTeX implementation. In particular, in math
mode, the styling directives are exclusive, except for \mathsymbol, which
matches the TeX behavior.
When a character variant (for example using \mathbb) is not available in the
font repertoire, convert to Unicode and fallback to the system font. This
allows \mathbb{1} to correctly output 𝟙.
Added support for \ensuremath command
Added the \imageof ⊷ and \originalof ⊸ symbols
Code Maintenance
Codebase Migrated to Typescript
This does not impact the bundled library, which is still transpiled JavaScript
from the TypeScript sources and which can be used either with a JavaScript or
TypeScript based project.
The migration did not result in changes to the public API which remains backward
compatible with previous versions. However, new declaration files (*.d.ts) for
TypeScript are available. They are more detailed (and accurate) than the
previous ones which were generated from JSDoc comments.
The migration was done by hand for the entire code base (35 kloc). Type
information was provided for all the data structures and function signatures.
While this does not affect the external users of MathLive (the API and
functionality remains the same), this has resulted in several bugs being found
by the compiler through static analysis. For example, the
onUndoStateWillChange() handler was never invoked because of this statement:
if (options && options.onUndoStateWillChange === 'function') {
options.onUndoStateWillChange();
}
instead of:
if (options && typeof options.onUndoStateWillChange === 'function') {
options.onUndoStateWillChange();
}
The TypeScript compiler correctly flagged this error.
This migration will make the ongoing maintenance and development of the codebase
much easier.
Codebase Refactoring
Concurrently to the migration to TypeScript, and thanks to the increased clarity
and confidence brought in with static typing and code analysis tools, the code
has been modularized and reorganized as follow. The codebase previously
consisted of several large monolithic source files, some of which were in excess
of 4,500 loc.
They have been broken up as follow:
core/atom.js →
atom-array.tsatom-accent.tsatom-box.tsatom-enclose.tsatom-genfrac.tsatom-leftright.tsatom-line.tsatom-op.tsatom-overunder.tsatom-surd.tsatom-to-latex.tsatom-utils.tsatom.ts
core/definitions.js →
definitions-accents.tsdefinitions-enclose.tsdefinitions-environments.tsdefinitions-extensible-symbols.tsdefinitions-functions.tsdefinitinos-styling.tsdefinitions-symbols.tsdefinitions-utils.tsdefinitions.ts
core/parser.js →
parser.tsmodes.tsmodes-utils.tsmodes-math.tsmodes-text.tsmodes-command.ts
editor-mathlist.js →
model.tsmodel-utils.tsmodel-styling.tsmodel-smartfence.tsmodel-selection.tsmodel-listeners.tsmodel-insert.tsmodel-delete.tsmodel-commands.tsmodel-command-mode.tsmodel-array.tsmodel-array-utils.ts
editor-mathfield.js →
a11y.tsautocomplete.tscommands.tsconfig.tsspeech.tsspeech-read-aloud.tsundo.tsmathfield.tsmathfield-virtual-keyboards.tsmathfield-utils.tsmathfield-styling.tsmathfield-smartmode.tsmathfield-render.tsmathfield-pointer-input.tsmathfield-keyboard-input.tsmathfield-commands.tsmathfield-clipboard.tsmathfield-buttons.ts
Again, this is an internal change that will have no impact for external users of
the MathLive library, but it will be contribute to improving the maintainability
and velocity of the project.
Other Code Maintenance
- Updated font binaries
- Rewrote grapheme splitter in TypeScript. As a result, code size reduced by
113Kb (!).
- Switched to
jest as a test runner.
Bug Fixes
- Fix #285: The initial content of the mathfield was considered part of the
undo stack, that is, typing command+Z before making any editing operations
would make the initial content disappear.
- Fix #236: An initially empty field had no visible caret until it had
focused, then blurred, then focused again.
- Fix #438: MathLive did not behave correctly when inside a shadow DOM
- Fix #436: When
smartFence was on, applying an inline shortcut before the
closing parent of a paren group that had been inserted as a pure fence (not a
\left\right group) the parens would get (incorrectly) promoted to a
\left\right group, and the shortcut would be inserted outside of the paren.
- Fix #435: Virtual keyboard after a JSON-based virtual keyboard would not
display correctly.
- Fix #417: The "International Backslash" (labeled
>< on a german
keyboard) would incorrectly trigger the command mode.
- Fix #416: With
smartFence on, braces around a fraction would disappear,
e.g. typing "(1/2" would result in "1/2"
Fix #415: toASCIIMath() would fail when the mathfield was empty
Fix #393: some characters in a \operatorname command, including - and
*, were not displayed correctly (they should display as if in text mode, not
in math mode, and the correct glyphs are different between the two modes)
Fix #395: re-implemented how macros handle their arguments. They would
previously parse their argument using the current parseMode. This is
incorrect. The parseMode cannot be determined until the macro has been
expanded and the arguments substituted. The parsing of the macros arguments is
now deferred until after the macro has been expanded. Additionally, it wasn't
previously possible for arguments to macros to contain other arguments. This
is now allowed.
Fix #395 (bis): Properly output LaTeX for macros when using 'latex' and
'latex-expanded' formats.
Fixed numerous issues with LaTeX round-tripping. For example, \mathfrak{C},
\boldsymbol{\sin\theta},
If the \text command included a &, the content following the & would be
ignored.
The align* environment was not handled correctly and displayed an extra gap
between columns.
The math styling commands did not behave properly. For example:\
\
\mathbf{\sin \alpha} + \mathit{\cos \beta} + \mathbf{\tan x} + \boldsymbol{\sin \gamma}
| | before | after |
| ----- | ------------ | ----------- |
| alpha | bold upright | italic |
| cos | italic | upright |
| tan | bold | roman |
| gamma | bold upright | bold italic |
Related to the above, but worth noting separately, \mathbf{\alpha} should
render as normal italic: the \mathbf command does not apply to lowercase
greek letters. The command does apply to uppercase greek letters. This is an
artifact of the TeX font encoding, but the behavior is preserved for
compatibility with TeX.
The \textcolor command did not apply to large symbols, such as \sum
Correctly output LaTeX for infix operators such as \atopwithdelims
Correctly output unicode characters in the astral plane, e.g.
\unicode{"1F468}
Fixed an issue were consecutive calls to set the content of the mathfield
could result in some spurious characters inserted at the beginning of the
field.
Breaking Change
The signature of the latexToMarkup() function has changed.\
Instead of a style and format, the second argument is an option object. The style
can be specified with a mathstyle property, the format with a format property.
A new letterShapeStyle property can also be specified.
- Before:
MathLive.latexToMarkup(formula, 'displaystyle')
- After:
MathLive.latexToMarkup(formula, { mathstyle: 'displaystyle' });
The 'command' virtual keyboard is no longer displayed by default. The layout
for this virtual keyboard has been deprecated and will be removed in a future
version. This is a partial fullfilment of #270.
The config.handleSpeak and config.handleReadAloud hooks have been renamed
config.speakHook and config.readAloudHook respectively
Deprecated
- The
overrideDefaultInlineShortcuts is deprecated (still supported in this
version, but will be removed in an upcoming one). Instead, to add to the
default shortcuts, use:
mf.setConfig({
inlineShortcuts: {
...mf.getConfig('inlineShortcuts').inlineShortcuts,
...newShortcuts,
},
});
0.35.0 (2020-03-24)
New Features
Extensible (stretchy) symbols:
#126 (\overgroup, \overrightarrow, \overleftrightarrow), #180
(\xrightarrow, \xrightleftharpoons), #292 (\widehat, \overbrace,
\underbrace), #338 (\vec, \bar).
This work has been made possible thanks to the financial support of a generous
sponsor.
It is now possible for a symbol with operands above or below, or for a
decoration above or below an expression, to stretch (extend) so that its width
will match the width of the operands or expression.
These extensible symbols and decorations are important for some domains such
as geometry and chemistry.
This release introduces th following new commands:
\overrightarrow{base}\overleftarrow{base}\Overrightarrow{base}\overleftharpoon{base}\overrightharpoon{base}\overleftrightarrow{base}\overbrace{base}\overlinesegment{base}\overgroup{base}\underrightarrow{base}\underleftarrow{base}\underleftrightarrow{base}\underbrace{base}\underlinesegment{base}\undergroup{base}\xrightarrow[below]{above}\xleftarrow[below]{above}\xRightarrow[below]{above}\xLeftarrow[below]{above}\xleftharpoonup[below]{above}\xleftharpoondown[below]{above}\xrightharpoonup[below]{above}\xrightharpoondown[below]{above}\xlongequal[below]{above}\xtwoheadleftarrow[below]{above}\xtwoheadrightarrow[below]{above}\xleftrightarrow[below]{above}\xLeftrightarrow[below]{above}\xrightleftharpoons[below]{above}\xleftrightharpoons[below]{above}\xhookleftarrow[below]{above}\xhookrightarrow[below]{above}\xmapsto[below]{above}\xtofrom[below]{above}\xrightleftarrows[below]{above}\xrightequilibrium[below]{above}\xleftequilibrium[below]{above}
In addition, the following commands can now be used to represent stretchy
accents:
\widehat{base}\widecheck{base}\widetilde{base}\utilde{base}
Improved rendering and layout of \enclose
Improved layout of overunder atoms
Improved layout of accent atoms
Improved fidelity of styling commands (\textup, \fontseries, etc...). They
are now closer to what LaTeX does, in all its wonderful weirdness (see
https://texfaq.org/FAQ-2letterfontcmd). Added \selectfont command.
Bug Fixes
#371: When clicking after the last element in the mathfield, always set
the anchor to be the last element in the root, i.e. as if moveToMathFieldEnd
had been performed. For example, if the content is "x^2", clicking after the
end of the field will put the caret after the last element (not after the "2"
in the superscript)
#372: Using an argument in a macro will result in the argument to be
substituted without a group being inserted. Previously, #1 with ax as a
value for the first argument would have resulted in {ax}. This was
noticeable when using the x^2 key in the virtual keyboard: if the equation
was ab, pressing that key resulted in {ab}^2. It now results in ab^2
Fixed an issue rendering some commands such as \boxed and others when in
static mode. An over-agressive optimization would coalesce spans with no
content, even though they may include important styling info.
Fixed the rendering of infix commands with arguments, e.g. \atopwithdelims
and overwithdelims. The arguments of infix commands were incorrectly merged
with the suffix.
Fixed inter-atom spacing of overunder atoms (they should space as mord)
Code Maintenance
Re-factored the definitions of functions, symbols and environments which are
now split in multiple files instead of being all contained in
core/definitions.js
Re-factored and isolated the metadata about LaTeX commands (frequency and
category). This should reduce the amount of data carried by the core package.
All the metadata is now in definitions-metadata.js. As a side effect, the
examples displayed in the popover window might be less complete, but the
removal of popover is on the roadmap.
Removal of default export for some modules. Need to complete it for all the
remaining modules.
0.34.0 (2020-02-05)
Bug Fixes
- Fix #364: Some expressions containing placeholders, when inserted, would not
have the placeholder selected. For example, when using the "differentialD" key
in the virtual keyboard.
- Fix #349:
- 'latex-expanded' format no longer returns
\mleft and \mright. This
format is intended for inter-exchange with other TeX-compatible renderers
and the \mleft and \mright commands are not widely deployed.
- The content exported to the clipboard is now surrounded by
$$ to more
clearly indicate that the content is using TeX format.
- When pasting content that begins/ends with
$ or $$, assume LaTeX format
- Fix keyboard shortcuts, e.g. "alt+(" or "alt+v"
- Fix #354: The argument of
\operatorname is of type 'math', not 'text'. This
means that using the '\text' command inside the argument is valid and that
spaces should be ignored by default (but the ~ character can be used to
insert a space in that context).
- Fix #282: Some keys from the virtual keyboards ('e', 'i') produce an incorrect
input.
- Fix #227: An operator (
\sin) following some text is incorrectly considered
to be part of the text.
Features / Improvements
- Documented
suppressChangeNotifications options for $insert()
- Document
config.smartMode (#312)
- The 'surd' (root) and 'leftright' (fences) elements now change color when the
caret is inside their body. This helps distinguish the case where the caret
position may be ambiguous, for example when it is either after the last
element of the body of a 'surd' or the first element after the 'surd'.
339: Read-only mode. Set the mode to read-only with
mf.$setConfig({readOnly: true}). When this mode is activated, the formula
can be selected (so it can be copied), but it cannot be modified by the user.
Progammatic modification is still possible.
0.33 (2019-12-19)
Bug Fixes
- Fix #313. Text mode content is not output in MathML, speech and MathJSON
(contribution by @NSoiffer)
- Fix #275: Selection improvements (use centerpoint to calculate nearest atom)
and make delimiters selection eligible.
0.32.3 (2019-10-29)
Bug Fixes
- Fix #286
\mathbb{}s are missing in the LaTeX output
0.32.2 (2019-09-24)
Bug Fixes
- Fixed an issue where some keys in the virtual keyboard would be unresponsive
0.30.1 (2019-07-30)
Features / Improvements
- Added Typescript type definition
0.30 (2019-07-18)
Non-backward compatible changes
157: Public APIs that don't start with $ have been removed. If your code
used any of these APIs, add a $ in front of their name. See #157 for the
complete list.
Features / Improvements
231: smartMode now supports Greek (the language). Also, Greek localization.
- Don't display i-beam cursor over non-interactive content
- Use CSS class
.ML__smart-fence__close to style closing smart fence
- Added speech support for text mode and units (contributed by @NSoiffer)
Bug Fixes
- Fixed an issue where clicking past the end of the equation would select the
numerator or denominator if the last element was a fraction, instead of place
the cursor after the fraction (regression)
- Removed dependency on open-cli
220 Fixed an issue where tabbing out of a mathfield would break command mode
and some functions209, #214, #211 et. al. Improvements to SSML support and karaoke mode
contributed by @NSoiffer217 Fixed an issue with parentheses in numerator of fractions
212: Fix round-tripping of \mathbb
194: When using the virtual keyboard, interpolate #@
- Fixed an issue where "(" was incorrectly gobbled as argument to a fraction
- Fixed an issue where smartFence off was ignored
202: use numeric character references instead of named entities in MathML
output
0.29.1 (2019-05-19)
Bug fixes
-
195: (partial fix) improve support for Edge (still requires Babelization)
- Fixed an issue while dragging to select across elements of different depths
- Fixed issue with smartMode for expressions including "x^2", "xyz" and "\pi"
- Fixed an issue with styling, where the LaTeX output could sometimes include
the non-existent
\mathup command. The correct command is \upshape
- Fixed issues with enclose layout
- Avoid triggering spurious notifications while inserting an inline shortcut
0.29 (2019-05-09)
Major New Features
- Scrollable mathfield. The mathfield now behaves like a text area: the content
that does not fit withing the bounds of the mathfield will not overflow but
will be scrollable. The scrolling can be done using the mouse wheel or
trackpad gestures, or by dragging while selecting. The AP
Improvements
- When smartFence is on, and a new smart fence is inserted (by typing
( for
example), the closing 'phantom' fence would be displayed immediately after the
opening fence. The closing fence will now be inserted after the end of the
expression.
- The heuristics for determining implicit arguments, for example the implicit
numerator when typing
/ have been improved. For example, typing / after
3 + 2sin x will result in 3 + (2sin x)/(...) instead of
3 + sin (x)/(...).
- When
config.removeExtraneousParentheses is true (default), if a frac is
inserted inside parentheses, the parens will be removed. So, if a / is typed
after 1 in (1) it will become 1/(...).
- When smartMode is on, textual operators are eligible for conversion to text.
Previously, if an inline shortcuts for
rad was defined to
\operatorname{rad} and 'radius' was typed, only ius would be turned to
text.
- Smartmode is now applied when there is a selection. That is, if some text is
selected and the
/ is pressed the selection will become the numerator.
Previously the selection was deleted and replaced with an empty fraction
- Improved layout of surds, particularly when the surd is empty
- Made
\mathbb{} et al. apply to the argument only, and not affect the style
of following characters. Previously, if a \mathbb{R} was inserted, the
following typed character would also be in Blackboard style.
- Improved build system on Windows. That is, it now works.
- Merge speak and readAloud APIs into one (contribution from Neil. Thanks Neil!)
- Switched to using
npm ci for CI builds. Even for local builds, it is
recommended to use npm ci to ensure the correct version of the dependencies
are installed.
- In smartMode, the currency symbols are handled better. "One apple is
$3.14"
will result in the "$" being in math mode.
- Switching to/from command mode will not suppress smart mode.
Bug fixes
- Fixed a crash when using smartFence with
sin(x^2/
- Fixed
alt+= keyboard shortcut on Windows.
- Fixed some layout issues with
box and enclose
- Smart Fences will now work when invoked from the virtual keyboard.
- Fixed #177: custom localization strings are now handled correctly.
- Fixed some issues toggling style when selection is empty.
0.28 (2019-04-22)
This release contains some small bug fixes and improvements.
- Reduced Node version required (for dev builds) to Node LTS
- Fixed some issues with focus state of mathfields, particularly with multiple
mathfields on a page
- Fixed an issue with some keys (such as /) on international keyboards (such as
QWERTZ)
- Made
moveToOpposite correctly select the opposite superscript/subscript
- Use the correct font for
\operatorname, even for single character operators
- Send content change notifications when array cells are created
- Fixed a layout issue with upsized (
\huge) content in fractions
- More accurate layout for
box atoms (with \bbox, \colorbox, \boxed and
\fcolorbox)
- Fixed an issue where units after an exponent were not recognized
- Fixed an issue displaying virtual keyboard on narrow Android phones
New Features
- Added support for applying size to the selection with
applyStyle({size:'size9'}) (default size is size5, smallest is size1,
largest is size10).
- Added support for
npm run start which will start a local web server for ease
of debugging (some features, such as using JavaScript native modules, require
a local server)
0.27 (2019-04-08)
Breaking Changes
- The syntax that MathJSON/MASTON can recognized has been significantly
expanded. It also has been made more consistent, and in some cases it may be
different than what was previously returned.
- Future breaking change: the selector
enterCommandMode will be deprecated and
replaced by the more general switchMode('command'). The selector
switchMode('command') is available in this release, and enterCommandMode
is supported as well but it will be removed in a future release and you should
migrate to switchMode() as soon as possible.
Major New Features
Text Mode (#153)
It was previously possible to enter text in an equation using the \text{}
command and its family using the command mode. However, this feature was only
suitable for advanced users, and had many limitations (text could not include
spaces, for example).
MathLive now fully support a dedicated text mode.
To switch between math and text mode, use the alt/option+= keyboard shortcut,
or programmatically using mf.$perform(['apply-style', {mode: 'math'}]). If
there is a selection it will be converted to the specified mode (math is
converted to ASCII Math). If there's no selection, the next user input will be
considered to be in the specified mode.
The current mode can also be changed using
mf.$perform(['switch-mode', {mode: 'math'}]) without affecting the selection.
To indicate the current mode, a (slightly) different cursor is used (it's
thinner in text mode). The text zones are also displayed on a light gray
background when the field is focused.
A notification is invoked when the mode changes: config.onModeChange(mf, mode)
with mode either "text", "math" or "command".
Smart Mode
If config.smartMode = true, during text input the field will switch
automatically between 'math' and 'text' mode depending on what is typed and the
context of the formula. If necessary, what was previously typed will be 'fixed'
to account for the new info.
For example, when typing "if x >0":
- "i" → math mode, imaginary unit
- "if" → text mode, english word "if"
- "if x" → all in text mode, maybe the next word is xylophone?
- "if x >" → "if" stays in text mode, but now "x >" is in math mode
- "if x > 0" → "if" in text mode, "x > 0" in math mode
Smart Mode is off by default.
Manually switching mode (by typing alt/option+=) will temporarily turn off
smart mode.
Examples
- slope = rise/run
- If x > 0, then f(x) = sin(x)
- x^2 + sin (x) when x > 0
- When x<0, x^{2n+1}<0
- Graph x^2 -x+3 =0 for 0<=x<=5
- Divide by x-3 and then add x^2-1 to both sides
- Given g(x) = 4x – 3, when does g(x)=0?
- Let D be the set {(x,y)|0<=x<=1 and 0<=y<=x}
- \int_{the unit square} f(x,y) dx dy
- For all n in NN
Styling
It is now possible to apply styling: font family, bold, italic, color and
background color. This information is rendered correctly across math and text
mode, and preserved in the LaTeX output.
The key to control styling is the $applyStyle(style) method:
If there is a selection, the style is applied to the selection.
If the selection already has this style, it will be removed from it. If the
selection has the style partially applied, i.e. only on some portions of the
selection), it is removed from those sections, and applied to the entire
selection.
If there is no selection, the style will apply to the next character typed.
- style an object with the following properties. All the properties are
optional, but they can be combined.
- style.mode - Either
"math", "text" or "command"
- style.color - The text/fill color, as a CSS RGB value or a string for some
'well-known' colors, e.g. 'red', '#f00', etc...
- style.backgroundColor - The background color.
- style.fontFamily - The font family used to render text. This value can the
name of a locally available font, or a CSS font stack, e.g. "Avenir",
"Georgia, Times, serif", etc... This can also be one of the following
TeX-specific values: -
"cmr": Computer Modern Roman, serif - "cmss":
Computer Modern Sans-serif, latin characters only - "cmtt": Typewriter,
slab, latin characters only - "cal": Calligraphic style, uppercase latin
letters and digits only - "frak": Fraktur, gothic, uppercase, lowercase and
digits - "bb": Blackboard bold, uppercase only - "scr": Script style,
uppercase only
- style.fontSeries - The font 'series', i.e. weight and stretch ("series" is
TeX terminology). The following values can be combined, for example: "ebc":
extra-bold, condensed. These attributes may not have visible effect if the
font family does not support this style: -
"ul" ultra-light weight
"el": extra-light - "l": light - "sl": semi-light - "m": medium
(default) - "sb": semi-bold - "b": bold - "eb": extra-bold - "ub":
ultra-bold - "uc": ultra-condensed - "ec": extra-condensed - "c":
condensed - "sc": semi-condensed - "n": normal (default) - "sx":
semi-expanded - "x": expanded - "ex": extra-expanded - "ux":
ultra-expanded
- style.fontShape - The font 'shape' (again, TeX terminology), i.e. italic
or condensed.
"it": italic"sl": slanted or oblique (often the same as italic)"sc": small caps"ol": outline
Contextual Inline Shortcuts
Previously, some shortcuts would get triggered too frequently, for example when
typing "find", the "\in" shortcut would get triggered.
Now, a shortcut can be defined with some pre-conditions. It is still possible to
define a shortcut unconditionally, and thus if you are using custom inline
shortcuts, they do not need to be updated:
config.inlineShortcuts = {
in: '\\in',
};
However, a shortcut can now be specified with an object:
config.inlineShortcuts = {
in: {
mode: 'math',
after: 'space+letter+digit+symbol+fence',
value: '\\in',
},
};
The value key is required an indicate the shortcut substitution.
The mode key, if present, indicate in which mode this shortcut should apply,
either "math" or "text". If the key is not present the shortcut apply in
both modes.
The "after" key, if present, indicate in what context the shortcut should
apply. One or more values can be specified, separated by a '+' sign. If any of
the values match, the shortcut will be applicable. Possible values are:
"space" A spacing command, such as \quad"nothing" The begining of a group"surd" A square root or n-th root"frac" A fraction"function" A function such as \sin or f"letter" A letter, such as x or n"digit" 0 through 9"binop" A binary operator, such as +"relop" A relational operator, such as ="punct" A punctuation mark, such as ,"array" An array, such as a matrix or cases statement"openfence" An opening fence, such as ("closefence" A closing fence such as }"text" Some plain text
Other Features
- Arrays, matrices and cases can now be edited. To create a a matrix, after a
( or a [, type some content then [RETURN]: a second row will be added to
the matrix. Similarly, typing [RETURN] after a { will create a cases
statements.
- To insert a new row, type
[RETURN]
- To insert a new column, type
alt/option+, (comma), the Excel shortcut for
this operation.
- Support for
\emph (emphasis) command, which can be used to (semantically)
highlight an element. This command works both in text and math mode (it only
works in text mode in TeX). For example:
\text{In the formula}\emph{x}+1=0\text{x is the \emph{unknown}}
- Support for
\cssId and \class commands. These are non-standard TeX
commands which are supported by MathJax.
\cssId{id}{content} Attaches an id attribute with value id to the output
associated with content when it is included in the HTML page. This allows
your CSS to style the element, or your javascript to locate it on the page.\class{name}{content} Attaches the CSS class name to the output
associated with content when it is included in the HTML page. This allows
your CSS to style the element.
config.removeExtraneousParentheses (true by default) extra parentheses, for
example around a numerator or denominator are removed automatically.
Particularly useful when pasting content.- Improvements to clipboard handling, pasting and copying. Now supports pasting
of ASCIIMath and UnicodeMath (from MS Word) and LaTeX.
- Support for output of ASCIIMath using
mf.$text('ASCIIMath') and
mf.$selectedText('ASCIIMath')
config.smartSuperscript If true (default), when a digit is entered in an
empty superscript, the cursor leaps automatically out of the superscript. This
makes entry of common polynomials easier and faster.config.scriptDepth Controls how many levels of subscript/superscript can be
entered. By restricting, this can help avoid unwanted entry of superscript and
subscript. By default, there are no restrictions.156: localization support, including French, Italian, Spanish, Polish and
Russian.- New visual appearance for selected elements.
Other Improvements
- When in command mode (after pressing the '' or 'ESC' key), pressing these
keys will have the indicated effect:
[ESC]: discards entry and return to math mode[TAB]: accept suggestion and enter it[RETURN]: enter characters typed so far, ignoring any suggestion.
132: Support for smart fence with {}, and \langle.
- Pressing the spacebar next to a closing smartFence will close it. Useful for
semi-open fences.
- Improved rendering performance by 8%
- Updated SRE support
- Improvements to undo/redo support. Fix #137, #139 and #140.
- Significant improvements to the Abstract Syntax Tree generation
(MASTON/MathJSON), including #147
- Keyboard shortcuts that override inline shortcuts and Smart Fence:
option/alt+|, option/alt+\. Also available are option/alt+( and
option/alt+)
Bug Fixes
155: A cases statement (or a matrix) can now be deleted. The rows and columns
inside a cases statement (or a matrix) can also be deleted.133: Clicking on a placeholder selects it.
- Fixed issue with positioning of Popover panel.
- Correctly render
\ulcorner, \urcorner, \llcorner and \rrcorner
141: Improved interaction of placeholders and smart fences
136: Close open smart fence with moveAfterParent only when at the closing of
a smart fence142: MathML output: supports sup/sub applied to a function
- Improved handling of shortcuts.
149: Fix handling of \prime and \doubleprime
111: Fix issue where a subscript followed a superscript and were not properly
combined.118. Improved navigating out of inferior limits
- Improve visual blinking when selecting with the mouse to the left
0.26 (2019-02-04)
Breaking Changes
- Public method now start with
$. This convention is also used, for example,
by the Vue.js project. For now, aliases exist that begin with '_' (the
previous convention), however you are encourage to migrate as soon as
possible. The function that are affected are: _el(), _insert(),
_keystroke(), _latex(), _perform(), _revertToOriginalContent(),
_selectedText(), _selectionAtEnd(), _selectionAtStart(),
_selectionDepth(), _selectionIsCollapsed(), _setConfig(), _text(),
_typedText() (this was initially implemented in 0.25)
Major New Features
- Support for dark mode. Triggered automatically by the browser or by setting
theme="dark" on the <body> tag.
- New implementation for inline shortcuts. Now support complex inline shortcuts
including
_, ( and other keys.
- Virtual Keyboards can now be described using a JSON data structure.
Contribution from @rpdiss. Thanks!
- New
MathLive.toSpeakableText() function
- New
config.onAnnounce handler
Other Improvements
- The
$perform() function now accepts selector both in camelCase or
kebab-case.
- Improved display of some keys in the keyboard caption panel
- New logo!
- Improved documentation, including adding pages for keyboard shortcuts,
examples, macros, selectors and config options.
- Better support for IE11 via transpiling (thanks @synergycodes!)
Bug fixes
103 - Fixed issues where the math path could become invalid. Also made the
code more resilient to invalid paths.128 - Properly cleanup event handlers on destruction
- Some minor optimizations and performance improvements, including lazy loading
of sounds and some other resources.
- Moved some modules to classes.
0.25 (2018-12-29)
Major New Features
- A Vue.js wrapper and example is available in
examples/vue
Bug fixes
104 - Numeric keypard "/" was ignored.
91 - Handling of '~' as an operator and a shortcut.
0.24 (2018-12-16)
Breaking Changes
- Several handlers had some inconsistent signatures, or in some cases passed
invalid values as their arguments. This has been fixed, but it required
changing the signature of some handlers. For consistency, the first argument
of the handlers now refers to the mathfield to which it applies.
MathLive.makeMathField('input', {
onContentDidChange: (mf) => {
document.getElementById('output').innerHTML = mf.latex();
},
});
Keep in mind that arrow functions lexically bind their context, so this
actually refers to the originating context (not to the mathfield).
The affected handlers are:
onFocusonBluronKeystrokeonMoveOutOfonTabOutOfonContentWillChangeonContentDidChangeonSelectionWillChangeonSelectionDidChangeonUndoStateWillChangeonUndoStateDidChangeonVirtualKeyboardToggleonReadAloudStatus
It is recommended that you check if you use any of those handlers and validate
their signatures.
Major New Features
The previous method, using a <script> tag, is still supported:
<script src="../../dist/mathlive.js"></script>
but it is recommended to use native JavaScript modules:
<script type="module">
import MathLive from '../../dist/mathlive.mjs';
</script>
(note the .mjs extension indicating this is a JavaScript module).
A few caveats about using modules:
- JavaScript modules are automatically in strict mode
- To use JavaScript modules you need to be in your own module. With a
<script>
tag, this is indicated by adding the type='module' attribute. The code
inside a module is not leaked to the global scope, the module has its own
scope. As a result, functions defined inside the module (inside your
<script> tag) will not be visible outside the module. You will need to
either attach them to a global object (such as window) or in the case of
even handlers, attach them to the relevant element, using addEventListener.
See examples/basic/index.esm.html for a complete example.
If you were previously loading the non-minified version, that is the raw
sources, which can be useful to debug issues, you need to use modules to load
them, while you may have used requirejs previously. The sources are now
included in the distribution for this purpose.
Instead of:
define(['mathlive/src/mathlive'], function(MathLive) {
MathLive.makeMathField();
}
use:
import MathLive from '../../dist/src/mathlive.js';
MathLive.makeMathField();
- Support for SRE (Speech Rule Engine) from Volker Sorge. Optional, and needs to
be installed separately.
- Improved text to speech support, including karaoke mode (read aloud with
synchronized highlighting)
- New configuration setting to control the spacing between elements,
horizontalSpacingScale. Supplying a value > 1.0 can improve readability for
some users.
- Added notifications when undo state change,
onUndoStateWillChange and
onUndoStateDidChange
- Added support for correctly inserting rows and columns in arrays.
Other Improvements
- Fixes in MASTON
- Improved cross-browser accessibility support
- Fix MathML output for superscripts
- Fix issue #75 (autoconvert would fail in some cases)
- Fix issue #114. Incorrect selection when shift-select at the end.
- Fix issue #78. Cross-out positioning issue
0.22 (2018-04-11)
Major New Features
- Support for styling in the virtual keyboard UI: the text and highlight color
can be adjusted to emphasize a portion of a formula
- Smart Fences. When a fence ("(", "{", etc...) is inserted, a matching closing
fence is automatically inserted, displayed as a greyed out placeholder.
The LaTeX code inserted will vary depending on the context where the insertion
is made, either standalone characters (() or \left...\right. This feature
is on by default and can be turned off with config.smartFence.
Option-9
and Option-0, as well as \( and \) will override the setting and insert a
plain old parenthesis.
\mleft...\mright. Similar to \left...\right (i.e. grow in height depending
on its content) but with vertical spacing before and after similar to
\mathopen and \mathclose. Used automatically by smart fences after a
function such as \sin or f.- Haptic and audio feedback for the virtual keyboard.
Haptic feedback is
available on Android only.
Two new config options to control it.
config.keypressVibration, which is on by default, control the haptic
feedback. config.keypressSound control the audio feedback (off by default).
Specify the URL to a sound file to be played when a key on the virtual
keyboard is pressed, or an object with a delete, return, spacebar and
default (required) keys to specify different sounds for those keys.
Other New Features
- When a fraction is inserted, for example by pressing '/', the items before the
insertion point are considered as potential numerator. This now include
parenthesized expressions and roots. In the case of parenthesized expressions,
the parentheses are removed before being adoped for the numerator.
- MASTON: Use Unicode to represent math-variant letters (e.g. ℂ)
- Convert math-variant letters encoded in Unicode to LaTeX when pasting (e.g. ℂ
becomes
\C, 𝕰 becomes \mathord{\mathbf{\mathfrak{E}}}
- MASTON: Commutativity support. a + b + c → add(a, b, c)
- MASTON: Right and left-associativity support ('=' and '=>' are right
associative)
- Improvements to the delete behavior: when to the right of a
\left...\right
deletes remove the closing fence, not the whole expression. Same for root,
fractions, and other groups. When at the beginning of a denominator, pressing
delete will remove the fraction, but keep numerator and denominator, etc...
- When using the command virtual keyboard, switch to command mode as necessary.
- Added
MathAtom.skipBoundary. When true, navigating into/out of the atom the
last/first element will be skipped. For example, with \textcolor{} this
implements a behavior similar to word processors.
Bug fixes
- Fixed #63: improved displayed of
\enclose over stacked atoms such as
fractions and \overset
- Fixed issue with selecting sparse arrays
- Make
\bigl et al. properly selectable
Code Maintenance and Performance
- Moved operator precedence and canonical names from Definitions to MASTON.
- Improved rendering performance by eliminating hotspots through profiling.
0.21 (2018-03-30)
Major New Features
- Basic support for LaTeX macros. Macros can be defined with
MathField.$setConfig({macros:'...')
- Display alternate keys when a key on the virtual keyboard is held down.
- Support for AZERTY, QWERTZ, Dvorak and Colemak virtual keyboards. Can be setup
with
MathField.$setConfig({virtualKeyboardLayout:'...'). Also, shift
clicking on the keyboard icon toggles between layouts.
Other New Features
- Toggle the virtual keyboard layer when the shift key is pressed
- New
onVirtualKeyboardToggle handler will get called when the visibility of
the virtual keyboard changes. Useful to scroll into view important content
that might be obscured by the keyboard.
- Some common functions added as inline shortcuts:
limsup, liminf, argmin,
argmax, bessel, mean, median, fft.
- Added
\rd command (synonym with \differentialD and used by Proof Wiki)
- Added a format option (
latex-expanded) to MathField.text() and
MathField.selectedText() to return LaTeX with macros expanded.
- Removed restrictions on charset in
text
- Support shift + arrows to extend the selection with the virtual keyboard
Bug Fixes
- More accurate operator precedence. Follow the
MathML recommendation, except for
arrows that are given a way too high priority in MathML.
- Correctly output to LaTeX the
\unicode command
- When undoing, correctly restore the selection
- Improved behavior when inserting superscript and subscript on a selected item
- Fixed handling of unbalanced
\left...\right sequences
- Correctly output the minus sign to LaTeX (as U+002D not as U+2212)
- Fixed some cases where the layout would shift by a couple of pixels as you
navigated into the expression
Code Maintenance and Performance
- Use
.test() instead of .match() whenever possible
- Eliminated
.value and .children in Math Atoms. It's only .body now.
- Avoid unnecessary rendering while tracking the pointer
- Refactored the Popover code into
Popover.js
- Moved some content from
Definitions.js and into Popover.js
0.20 (2018-03-24)
Major New Features
- Virtual keyboards with multi-touch support
- BREAKING CHANGE: the command bar is no longer supported. Use virtual keyboards
instead.
Other New Features
- Added support for wide layouts to virtual keyboard. If space is available, up
to four more columns of keys can be displayed.
- Added Copy button to virtual keyboard
- Allow 'space' in command mode
- MASTON: improved parsing of numbers
- Handle Unicode pseudo-superscript characters as exponents
0.19 (2018-03-19)
Major New Features
- MASTON: first implementation
- Support selecting cells in arrays
Other New Features
- MASTON: handle complex numbers and modulo
- Added option for styling of keyboard glyph
- Improved output to LaTeX for arrays
- Additional trig and long functions (
\lb, \arsinh, \arcosh, \artanh,
\arcsech, \arccsh, \arcsec, \arccsc)
- MathML: more robust handling of complex
<mo>
- MathML: improved handling of fences
- Improved LaTeX output
Bug Fixes
- Correctly handle latex output for the
\char command
- Correctly handle invalid Unicode code points in the
\char command
- Correctly output MathML for extended Unicode characters and
\char command
- Correctly handle selection in sparse arrays
- Correct spacing issue of selected items
- Fixed #17: correctly extend the selection when the anchor is at the end of the
selection
- The caret would not blink in empty supsub
- The last character of the selection would not be copied on the clipboard
- MathML: don't insert
&invisibleTimes; for factorial, but do insert it
before a fence.
- Going up from a numerator longer than the denominator could hang.
- MathML and LaTeX output: better handling of
\Big (etc...) delimiters
- MathML: do not render
\text as <mi>
- LaTeX output: handle the
\math... (\mathop, \mathbin...) family of
functions
- Properly parse custom operators
- Commands with multiple keyboard shortcuts would not display correctly in the
Popover panel
Code Maintenance and Performance
- Reduce the amount of markup generated, avoid generating markup for empty
spans.
- Updated fonts from KaTeX
0.18 (2018-03-04)
Bug Fixes
- Fixed issue where
\underset annotation was not selectable
Code Maintenance and Performance
- Reverted back to WebPack 3
- Simplified CSS and streamlined markup for
vlist spans.
0.0.17 (2018-02-27)
New Features
- Improved accessibility support (major contribution from Neil Soiffer)
- Support for MathML output and LaTeX to MathML conversion.
Bug Fixes
26 Fixed issue with Chrome 62 where fraction lines and other thin lines would
intermittently not render.20, #51. Ensure that a placeholder is always present for numerator,
denominator.21. Do not allow sub-elements of an enclose element to be selected.
- Font-size will now respect font-size specified by the parent element. As a
result of this non-backward compatible change, the size of the equation may
now be different than it was. To ensure that the size remains the same as
before, specify a font-size property on the parent element with a value of
16px.
29. Correctly handle $ and @ as inlineShortcuts
- Improved handling of undo.
- New implementation of \enclose notations.
0.0.16 (2017-09-13)
Deprecated Features
MathField.write() has been deprecated. Use MathField.insert() instead.
New Features
- Added
MathField.selectedText() which returns the textual content of the
selection.
Bug Fixes
- Perform a snapshot with the undo manager when invoking
MathField.insert().
- Documentation improvements.
0.0.15 (2017-07-01)
New Features
- Properly exported public API, including
renderMathInDocument() and
renderMathInElement()
- Added
\enclose command, implementing the
MathML
equivalent.
- Added
\cancel, \bcancel and \xcancel commands
- Added
preserveOriginalContent option to MathLive.renderMathIn...()
- Made
\backslash work in text mode, for example when an argument of \rlap{}
- Added
revertToOriginalContent() when a math field is no longer needed for an
element
- Added customization of the command bar. See
MathField.$setConfig() and
config.commands
- Added
revertToOriginalContent() and getOriginalContent()
- Added optional namespacing of
data- attributes
- Added
onContentWillChange and onContentDidChange handlers in the math
field config object.
- Added tutorials and improved documentation
Bug Fixes
- Fixed #5: AZERTY keyboard input was misbehaving, particularly for the
^ key
- Dead keys (
´, ^, ¨, ˜ and others on some keyboards) were not properly
handled
- Complex emojis (emojis made of multiple codepoints, such as emojis with skin
tone modifiers, or emojis with a ZERO WIDTH JOINER, such as the David
Bowie emoji) would be incorrectly recognized as multiple symbols
- Fixed the
\color command
- Properly roundtrip to LaTeX
\rlap, \color and many other commands. Now,
copying content using these commands in a math field will result in the
correct LaTeX code to be generated.
MaieuticalLabs
